| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR3045STDIODE ARRAY SCHOTTKY 45V TO220AB |
3,259 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 175°C | Through Hole |
|
|
MBR3045STGDIODE ARRAY SCHOTTKY 45V TO220AB |
3,477 | 0.79 |
RFQ |
Datasheet |
Tube,Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 175°C | Through Hole |
|

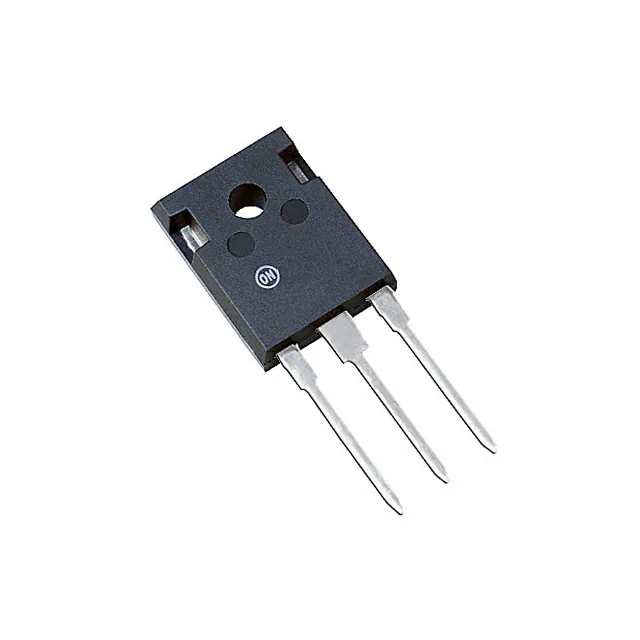

MBR3045WTGDIODE ARRAY SCHOTTKY 45V TO247 |
2,467 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 760 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 175°C | Through Hole |
|
|
MBR30H100CTDIODE ARRAY SCHOTTKY 100V TO220 |
2,557 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 800 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 µA @ 100 V | 175°C (Max) | Through Hole |
|
|
MBR4015LWTDIODE ARRAY SCHOTTKY 15V TO247 |
3,384 | 1.00 |
RFQ |
Datasheet |
Tube,Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 15 V | 20A | 420 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 15 V | -55°C ~ 150°C | Through Hole |
|
|
MBR4015LWTGDIODE ARRAY SCHOTTKY 15V TO247 |
963 | 4.13 |
RFQ |
Datasheet |
Bulk,Tube,Tube | SWITCHMODE™ | Active | 1 Pair Common Cathode | Schottky | 15 V | 20A | 420 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 15 V | -55°C ~ 150°C | Through Hole |
|
MBR4045PTGDIODE ARRAY SCHOTTKY 45V SOT93 |
3,250 | 1.00 |
RFQ |
Datasheet |
Tube,Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 700 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 175°C | Through Hole |
|
MBR4045WTGDIODE ARRAY SCHOTTKY 45V TO247 |
2,097 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 700 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 175°C | Through Hole |
|
|
MBR41H100CTDIODE ARRAY SCHOTTKY 100V TO220 |
2,737 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 800 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | 175°C (Max) | Through Hole |
|
MBR6045PTGDIODE ARRAY SCHOTTKY 45V SOT93 |
3,394 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 30A | 620 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 175°C | Through Hole |
|
|
MBR60H100CTDIODE ARRAY SCHOTTKY 100V TO220 |
2,756 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 30A | 840 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 100 V | 175°C (Max) | Through Hole |
|
|
MBR7030WTDIODE ARRAY SCHOTTKY 30V TO247 |
2,541 | 3.01 |
RFQ |
Datasheet |
Tube,Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 35A | 550 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 30 V | -55°C ~ 175°C | Through Hole |
|
|
MBR7030WTGDIODE ARRAY SCHOTTKY 30V TO247 |
826 | 5.21 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | Active | 1 Pair Common Cathode | Schottky | 30 V | 35A | 550 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 30 V | -55°C ~ 175°C | Through Hole |
|
MBRB1545CTGDIODE ARRAY SCHOTTKY 45V D2PAK |
3,601 | 0.00 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 7.5A | 570 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | -65°C ~ 175°C | Surface Mount |
|
|
MBRB2060CTDIODE ARRAY SCHOTTKY 60V D2PAK |
3,736 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 10A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 60 V | -65°C ~ 175°C | Surface Mount |
|
|
MBRB2060CTGDIODE ARRAY SCHOTTKY 60V D2PAK |
3,877 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 10A | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 60 V | -65°C ~ 175°C | Surface Mount |
|
|
MBRB2535CTLDIODE ARRAY SCHOTTKY 35V D2PAK |
2,177 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 12.5A | 470 mV @ 12.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | -65°C ~ 125°C | Surface Mount |
|
|
MBRB2545CTDIODE ARRAY SCHOTTKY 45V D2PAK |
3,252 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 820 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 175°C | Surface Mount |
|
|
MBRB2545CTGDIODE ARRAY SCHOTTKY 45V D2PAK |
2,274 | 0.88 |
RFQ |
Datasheet |
Bulk,Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 820 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 175°C | Surface Mount |
|
|
MBRB3030CTDIODE ARRAY SCHOTTKY 30V D2PAK |
3,730 | 0.00 |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 15A | 540 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 30 V | -55°C ~ 175°C | Surface Mount |
