Diodes - Rectifiers - Arrays(14902)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

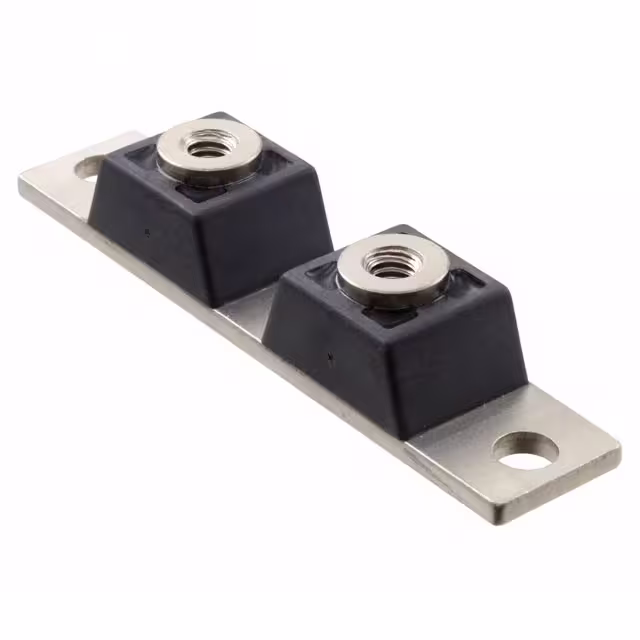

UFT40020DIODE MODULE 200V 200A |
2,260 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 200A | 975 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 50 µA @ 200 V | - | Screw Mount |
|
UFT40020ADIODE MODULE 200V 200A |
2,710 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 200 V | 200A | 975 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 50 µA @ 200 V | - | Screw Mount |
|
|
UFT40020DDIODE MODULE 200V 200A |
2,770 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 200 V | 200A | 975 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 50 µA @ 200 V | - | Screw Mount |
|
|
UFT7020ADIODE MODULE 200V 35A |
3,720 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 200 V | 35A | 950 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 25 µA @ 200 V | - | Screw Mount | |
|
|
UFT7020DDIODE MODULE 200V 35A |
2,291 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 200 V | 35A | 950 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 25 µA @ 200 V | - | Screw Mount | |
|
|
UFT7130DIODE MODULE 300V 35A |
2,295 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 300 V | 35A | 1.2 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 300 V | - | Screw Mount | |
|
|
CPT50145DDIODE MODULE 45V TO244AB |
2,603 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Schottky | 45 V | 250A | 550 mV @ 250 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 12 mA @ 45 V | - | Chassis Mount |
|
|
CPT30050ADIODE MODULE 50V TO244AB |
2,130 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Schottky | 50 V | 150A | 760 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 50 V | - | Chassis Mount |
|
|
CPT30145DDIODE MODULE 45V TO244AB |
2,841 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Schottky | 45 V | 150A | 620 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 45 V | - | Chassis Mount |
|
|
CPT600100DDIODE MODULE 100V TO244AB |
3,816 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Schottky | 100 V | 300A | 850 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 100 V | - | Chassis Mount |
|
FST16090ADIODE MODULE 90V TO249 |
2,555 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Schottky | 90 V | 80A | 960 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 90 V | - | Screw Mount |
|
|
MSAD165-18DIODE MODULE 1.8KV 165A D2 |
3,326 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 1800 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1800 V | - | Chassis Mount |
|
|
MSAD70-16DIODE MODULE 1.6KV 70A D1 |
2,966 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 1600 V | 70A | 1.48 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | - | Chassis Mount |
|
|
UFT20120DIODE MODULE 200V 100A |
2,850 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 100A | 1.25 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 50 µA @ 200 V | - | Screw Mount |
|
1SS302TE85LFDIODE ARRAY GP 80V 100MA SC70 |
3,355 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 Pair Series Connection | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 125°C (Max) | Surface Mount |
|
|
APTDC902U601GDIODE MODULE 600V 90A SP1 |
2,224 | 0.00 |
RFQ |
Bulk | - | Obsolete | 2 Independent | Silicon Carbide Schottky | 600 V | 90A | 1.8 V @ 90 A | No Recovery Time > 500mA (Io) | 0 ns | 1800 µA @ 600 V | -40°C ~ 175°C | Chassis Mount | |
|
|
UFT7260SM3ADIODE MODULE 600V 35A SM3 |
3,054 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Anode | Standard | 600 V | 35A | 1.35 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 600 V | - | Chassis Mount | |
|
|
UFT7260SM3CDIODE MODULE 600V 35A SM3 |
2,598 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 35A | 1.35 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 600 V | - | Chassis Mount | |
|
|
UFT7260SM3DDIODE MODULE 600V 35A SM3 |
3,827 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 600 V | 35A | 1.35 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 600 V | - | Chassis Mount | |
|
|
UFT7260SM4CDIODE MODULE 600V 35A SM4 |
3,343 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 35A | 1.35 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 600 V | - | Chassis Mount |
