| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAV70HDWQ-13DIODE FS 100V 125MA SOT363 |
3,958 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 2 Pair Common Cathode | Standard | 100 V | 125mA | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | -65°C ~ 150°C | Surface Mount |
|
|
BAS70JW-7-FDIODE ARRAY SCHOTTKY 70V SOT363 |
2,557 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 Independent | Schottky | 70 V | 70mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | -55°C ~ 125°C | Surface Mount |
|
BAW101-7DIODE ARRAY GP 300V 250MA SOT143 |
3,290 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 Independent | Standard | 300 V | 250mA (DC) | 1.1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 150 nA @ 250 V | -65°C ~ 150°C | Surface Mount |
|
BAV70LP-7DIODE ARRAY GP 75V 150MA 3XDFN |
2,295 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Standard | 75 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | -65°C ~ 150°C | Surface Mount |
|
|
MMBD4448HCDW-7-FDIODE ARRAY GP 80V 250MA SOT363 |
2,259 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 Pair Common Cathode | Standard | 80 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 nA @ 70 V | -65°C ~ 150°C | Surface Mount |
|
SBR10150CTL-13DIODE ARRAY SBR 150V 5A TO252-3 |
2,679 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 150 V | 5A | 940 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -65°C ~ 150°C | Surface Mount |
|
SBG1630CT-TDIODE ARRAY SCHOTTKY 30V D2PAK |
2,391 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 30 V | 16A | 550 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 30 V | -65°C ~ 125°C | Surface Mount |
|
|
SBR30A45CTBQ-13DIODE ARRAY SBR 45V 30MA TO263 |
2,454 | 1.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 45 V | 15A | 550 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | -55°C ~ 150°C | Surface Mount |
|
SBR10U40CTDIODE ARRAY SBR 40V 5A TO220AB |
867 | 1.39 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 40 V | 5A | 440 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | -65°C ~ 150°C | Through Hole |
|
|
SBR30A60CTB-13DIODE ARRAY SBR 60V 15A D2PAK |
810 | 1.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 60 V | 15A | 630 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -65°C ~ 150°C | Surface Mount |
|

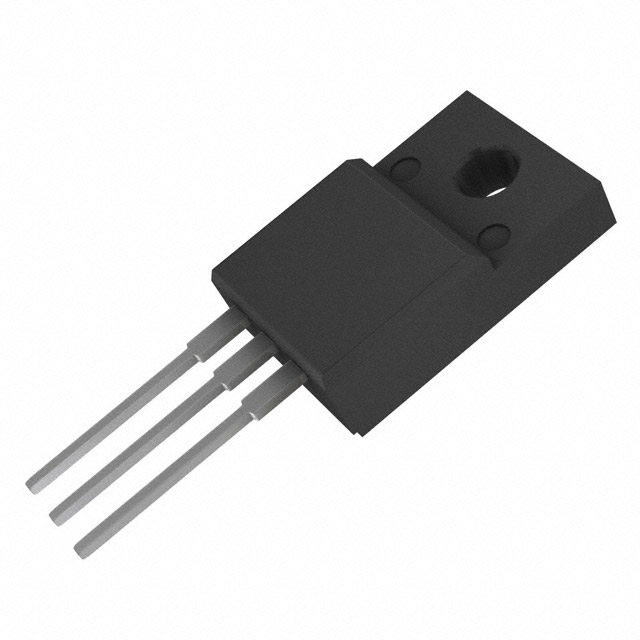

SDT40A100CTFPDIODE ARRAY SCHOTT 100V ITO220AB |
350 | 0.91 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 720 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
SDT30A100CTDIODE SCHOTTKY 100V 15A TO220AB |
495 | 0.92 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 730 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
MBRB20200CTDIODE SCHOTTKY 200V 20A D2PAK |
115 | 0.93 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 200 V | 10A | 890 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -55°C ~ 175°C | Surface Mount |
|
SBR20A200CTFPDIODE ARRAY SBR 200V 10A ITO220 |
114 | 1.21 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 200 V | 10A | 860 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 100 µA @ 200 V | -65°C ~ 175°C | Through Hole |
|
|
SBR30300CTDIODE ARRAY SBR 300V 15A TO220AB |
2,691 | 3.04 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 300 V | 15A | 1.03 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 100 µA @ 300 V | -65°C ~ 175°C | Through Hole |
|
|
SBR10U100CTDIODE ARRAY SBR 100V 5A TO220AB |
172 | 0.97 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 100 V | 5A | 670 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 100 V | -65°C ~ 175°C | Through Hole |
|
|
SBR20U40CT-GDIODE ARRAY SBR 40V 10A TO220AB |
3,271 | 1.80 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 40 V | 10A | 470 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | -65°C ~ 150°C | Through Hole |
|
|
SBR20U100CTDIODE ARRAY SBR 100V 10A TO220AB |
2,718 | 2.15 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 100 V | 10A | 700 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 100 V | -65°C ~ 175°C | Through Hole |
|
BAV199Q-7-FDIODE DUAL 85V 140MA SOT23 |
3,755 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive | Active | 1 Pair Series Connection | Standard | 85 V | 140mA (DC) | 1.1 V @ 50 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 5 nA @ 75 V | -65°C ~ 150°C | Surface Mount |
|
|
BAT54CQ-7-FSCHOTTKY DIODE SOT23 |
204 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 150°C | Surface Mount |
