| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBR20A45CTDIODE ARRAY SBR 45V 10A TO220AB |
2,369 | 0.87 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 45 V | 10A | 500 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | -65°C ~ 150°C | Through Hole |
|
SBR2045CTFPDIODE ARRAY SBR 45V 10A ITO220AB |
3,139 | 1.07 |
RFQ |
Datasheet |
Tube,Tube | * | Active | - | - | - | - | - | - | - | - | - | - |
|
|
SDT20150GCTSPTRENCH SCHOTTKY RECTIFIER GEN II |
3,750 | 0.87 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 820 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
G20H150CTWTRENCH SCHOTTKY RECTIFIER GEN II |
3,923 | 0.89 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 20A | 820 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
|
SDT20150GCTTRENCH SCHOTTKY RECTIFIER GEN II |
3,737 | 0.88 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 10A | 820 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 µA @ 150 V | -55°C ~ 175°C | Through Hole |
AB~~3.JPG)
|

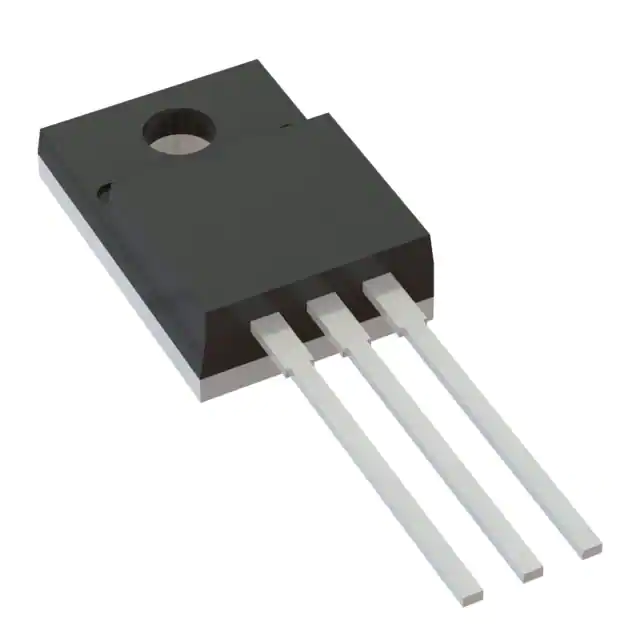

G30H150CTFWTRENCH SCHOTTKY RECTIFIER GEN II |
3,332 | 0.90 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 30A | 880 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
|
G30H150CTWTRENCH SCHOTTKY RECTIFIER GEN II |
2,037 | 0.91 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 30A | 880 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
SDT40A120CTFPDIODE ARRAY SCHOTT 120V ITO220AB |
2,650 | 0.90 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 120 V | 20A | 880 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 120 V | -55°C ~ 150°C | Through Hole |
|
|
SBR20A60CTFPDIODE ARRAY SBR 60V 10A ITO220AB |
3,606 | 0.91 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 60 V | 10A | 650 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -65°C ~ 150°C | Through Hole |
|
|
SBR3045CTFPDIODE ARRAY SBR 45V 15A ITO220AB |
3,999 | 0.91 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 45 V | 15A | 550 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | -65°C ~ 150°C | Through Hole |
|
|
SBR20200CTFPDIODE ARRAY SBR 200V 10A ITO220 |
3,256 | 0.94 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 200 V | 10A | 980 mV @ 10 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -65°C ~ 175°C | Through Hole |
|
|
SBR20A150CTDIODE ARRAY SBR 150V 10A TO220AB |
3,736 | 0.94 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 150 V | 10A | 820 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -65°C ~ 175°C | Through Hole |
|
|
SBR20A45CTFPDIODE ARRAY SBR 45V 10A ITO220AB |
3,107 | 0.94 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 45 V | 10A | 500 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | -65°C ~ 150°C | Through Hole |
|
|
SBR20100CTFPDIODE ARRAY SBR 100V 10A ITO220 |
3,267 | 0.96 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 100 V | 10A | 820 mV @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | Through Hole |
|
|
SBR30120CTDIODE SBR 120V 15A TO220AB |
2,367 | 0.97 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 120 V | 15A | 890 mV @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 120 V | -65°C ~ 175°C | Through Hole |
|
SBRT40M80CTB-13DIODE RECT SB 80V 20A TO263AB |
3,513 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | SBR | Active | 1 Pair Common Cathode | Super Barrier | 80 V | 20A | 720 mV @ 20 A | Standard Recovery >500ns, > 200mA (Io) | - | 65 µA @ 80 V | -55°C ~ 150°C | Surface Mount |
|
|
SBR30A60CTBQ-13DIODE ARRAY SBR 60V 15A D2PAK |
2,790 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Super Barrier | 60 V | 15A | 630 mV @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 330 µA @ 60 V | -65°C ~ 150°C | Surface Mount |
|
|
SBR10U200CTFPDIODE ARRAY SBR 200V 5A ITO220AB |
2,727 | 0.98 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 200 V | 5A | 820 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 200 µA @ 200 V | -65°C ~ 175°C | Through Hole |
|
|
SBR20A150CTFPDIODE ARRAY SBR 150V 10A ITO220 |
2,639 | 0.98 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 150 V | 10A | 820 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -65°C ~ 175°C | Through Hole |
|
|
SBR20A100CTFPDIODE ARRAY SBR 100V 10A ITO220 |
2,772 | 0.99 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 100 V | 10A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | Through Hole |
