| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

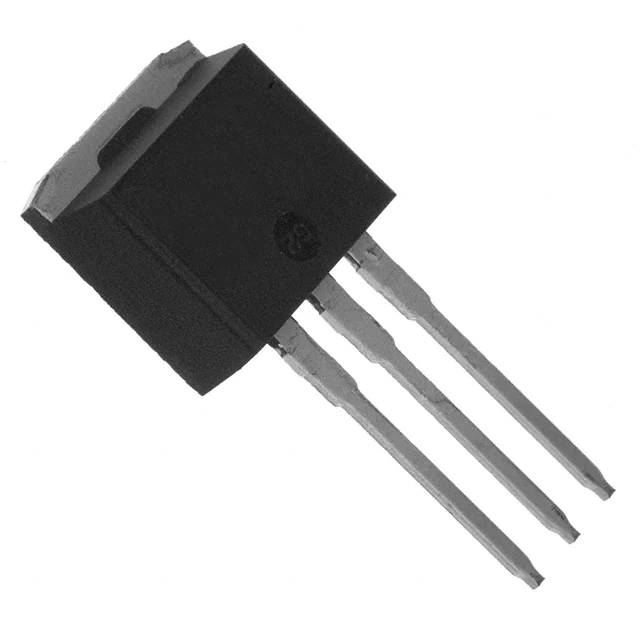

SDT30A100CTEDIODE ARRAY SCHOT 100V 15A TO262 |
3,335 | 0.91 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 Pair Common Cathode | Schottky | 100 V | 15A | 730 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 80 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
SDT30A100CTFPDIODE ARRAY SCHOTT 100V ITO220AB |
2,071 | 0.93 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 730 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
SDT20A100CTDIODE SCHOTTKY 100V 10A TO220AB |
2,015 | 0.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 10A | 670 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
SDT30100CTFPDIODE ARRAY SCHOTT 100V ITO220AB |
2,820 | 0.94 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
SBR20150CTFPDIODE ARRAY SBR 150V 10A ITO220 |
2,847 | 0.97 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 150 V | 10A | 880 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -65°C ~ 175°C | Through Hole |
|
|
SDT40100CTDIODE SCHOTTKY 100V 20A TO220AB |
3,727 | 0.97 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 790 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
SBR20A100CTDIODE ARRAY SBR 100V 10A TO220AB |
2,219 | 1.06 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 100 V | 10A | 750 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | Through Hole |
|
|
SBR20100CT-GDIODE SBR 100V 20A TO-220AB |
3,397 | 1.11 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 100 V | 10A | 820 mV @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | Through Hole |
|
|
SBRT30A45CTDIODE SBR ARRAY 45V 15A ITO220AB |
2,689 | 1.32 |
RFQ |
Datasheet |
Tube | TrenchSBR | Active | 1 Pair Common Cathode | Super Barrier | 45 V | 15A | 510 mV @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 400 µA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
SBR3060CTFPDIODE ARRAY SBR 60V 15A ITO220AB |
3,579 | 1.32 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 60 V | 15A | 550 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | -65°C ~ 150°C | Through Hole |
|
|
SDT40A120CTDIODE SCHOTTKY 120V 20A TO220AB |
3,237 | 1.32 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 120 V | 20A | 880 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 120 V | -55°C ~ 150°C | Through Hole |
|
|
SDT40H100CTDIODE SCHOTTKY 100V 20A TO220AB |
2,175 | 1.35 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 700 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
SDT40A100VCTDIODE SCHOTTKY 100V 20A TO220AB |
3,700 | 1.40 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 Pair Common Cathode | Schottky | 100 V | 20A | 680 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 180 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
SDT40H120CTDIODE SCHOTTKY 120V 20A TO220AB |
3,680 | 1.50 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 120 V | 20A | 820 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 120 V | -55°C ~ 150°C | Through Hole |
|
|
SBR20U150CTFPDIODE ARRAY SBR 150V 10A ITO220 |
3,417 | 1.61 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 150 V | 10A | 780 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 150 V | -65°C ~ 175°C | Through Hole |
|
|
SBRT40V100CTEDIODE SBR TO262 |
3,938 | 1.80 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Super Barrier | 100 V | 20A | 730 mV @ 20 A | Standard Recovery >500ns, > 200mA (Io) | - | 300 µA @ 100 V | -55°C ~ 150°C | Through Hole |
|
|
SBR40U45CTDIODE ARRAY SBR 45V 20A TO220AB |
2,737 | 3.23 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 45 V | 20A | 520 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 45 V | -65°C ~ 150°C | Through Hole |
|
|
SBR40U200CTDIODE ARRAY SBR 200V 20A TO220AB |
2,453 | 3.90 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 200 V | 20A | 890 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 200 µA @ 200 V | -65°C ~ 150°C | Through Hole |
|
BAV70Q-13-FSWITCHING DIODE SOT23 T&R 10K |
2,192 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 75 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | -65°C ~ 150°C | Surface Mount |
|
|
BAW56Q-13-FSWITCHING DIODE SOT23 T&R 10K |
2,259 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 75 V | 300mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 2.5 µA @ 75 V | -55°C ~ 150°C | Surface Mount |
