| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCS230AE2HRC11650V, 30A, 3-PIN THD, SILICON-CA |
130 | 14.42 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 15A (DC) | 1.55 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | 300 µA @ 600 V | 175°C | Through Hole |
|
SCS220KE2HRC11DIODE SCHOTTKY 650V TO-247AC |
111 | 15.20 |
RFQ |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 10A (DC) | 1.6 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 175°C | Through Hole | |
|
BAV199HYT116LOW-LEAKAGE, 80V, 215MA, SOT-23 |
2,285 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Standard | 80 V | 215mA (DC) | 1.25 V @ 150 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 5 nA @ 75 V | 150°C | Surface Mount |
|
|
BAW56HYT116HIGH SPEED SWITCHING, 80V, 215MA |
2,889 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Anode | Standard | 80 V | 215mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 nA @ 80 V | 150°C | Surface Mount |
|
RB706WM-40TL40V, 30MA, SOT-416FL, SCHOTTKY B |
3,131 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Schottky | 40 V | 30mA | 370 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 500 nA @ 30 V | 125°C | Surface Mount |
|
|
BAV170HYFHT116LOW-LEAKAGE, 80V, 215MA, SOT-23 |
3,591 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 80 V | 215mA (DC) | 1.25 V @ 150 mA | Standard Recovery >500ns, > 200mA (Io) | 3 µs | 5 nA @ 75 V | 150°C | Surface Mount |
.jpg)
|
DA221WMTLLOW-LEAKAGE, 20V, 100MA, SERIES |
3,451 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Standard | 20 V | 100mA | 1 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | - | 100 nA @ 15 V | 150°C | Surface Mount |
|
|
DA228WMTLLOW-LEAKAGE, 80V, 100MA, SERIES |
3,069 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 100 nA @ 80 V | 150°C | Surface Mount |
|
DAP202FMT106HIGH-SPEED SWITCHING, 80V, 100MA |
2,422 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C | Surface Mount |
|
DAP222ZMT2LHIGH SPEED SWITCHING, 80V 100MA |
3,097 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C | Surface Mount |
|
|

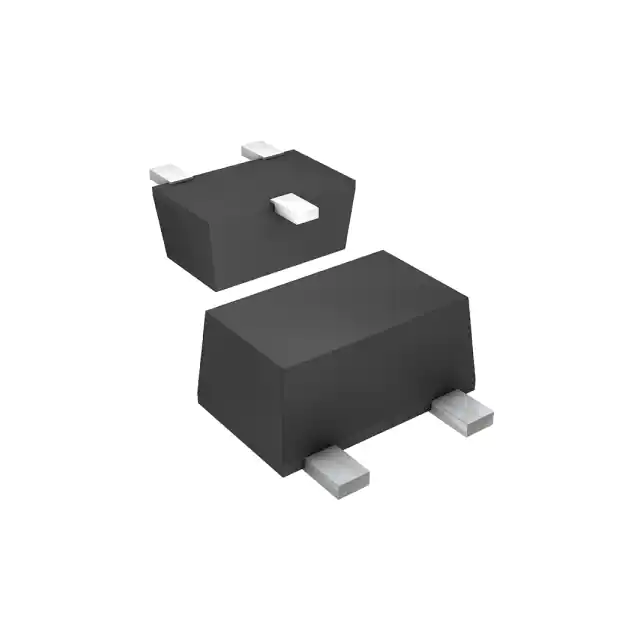

DA228UMTLLOW-LEAKAGE, 80V, 100MA, SERIES |
2,708 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 nA @ 80 V | 150°C | Surface Mount |
|
|
BAS40-06HYT11640V, 120MA, SOT-23, ANODE COMMON |
2,626 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Anode | Schottky | 40 V | 120mA (DC) | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 µA @ 40 V | 150°C | Surface Mount |
.jpg)
|
RR274EA-400FHTRRECTIFIER DIODE (AEC-Q101 QUALIF |
2,558 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 Independent | Standard | 400 V | 500mA | 1.1 V @ 500 mA | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | 150°C | Surface Mount |
|
RB098BM-30TLSUPER LOW IR, 30V, 6A, TO-252 (D |
2,781 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 6A | 720 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 µA @ 30 V | 150°C | Surface Mount |
|
RBR10BGE30ATL30V, 10A, TO-252, CATHODE COMMON |
2,182 | 1.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 10A | 550 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | 150°C | Surface Mount |
|
RBR15BM40ATLDIODE (RECTIFIER FRD) 40V-VR 15A |
2,953 | 0.68 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 7.5A | 550 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 240 µA @ 40 V | 150°C | Surface Mount | |
|
|
RBQ20BM45ATLRBQ20BM45A IS LOW IR |
2,305 | 0.74 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 10A | 590 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | 150°C | Surface Mount | |
|
RBQ15BGE65ATL65V, 15A, TO-252, CATHODE COMMON |
2,510 | 1.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 65 V | 15A | 630 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 140 µA @ 65 V | 150°C | Surface Mount |
|
|
RBR15BGE30ATL30V, 15A, TO-252, CATHODE COMMON |
3,073 | 1.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 15A | 510 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 30 V | 150°C | Surface Mount |
|
|
RBR20BGE30ATL30V, 20A, TO-252, CATHODE COMMON |
3,867 | 2.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 20A | 510 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 30 V | 150°C | Surface Mount |
