| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FST10020DIODE MODULE 20V 100A TO249AB |
2,171 | 65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 20 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | Chassis Mount |
|
|
FST10030DIODE MODULE 30V 100A TO249AB |
2,530 | 65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | Chassis Mount |
|
|
FST10035DIODE MODULE 35V 100A TO249AB |
2,136 | 65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST10040DIODE MODULE 40V 100A TO249AB |
3,092 | 65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST10045DIODE MODULE 45V 100A TO249AB |
3,052 | 65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 100A | 650 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST10060DIODE MODULE 60V 100A TO249AB |
3,984 | 65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 100A | 750 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST10080DIODE MODULE 80V 100A TO249AB |
2,763 | 65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 80 V | 100A | 840 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
FST100150DIODE SCHOTTKY 150V 50A TO249AB |
3,862 | 65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 50A | 880 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 155°C | Chassis Mount |
|
|
FST100200DIODE SCHOTTKY 200V 50A TO249AB |
3,020 | 65.64 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 200 V | 50A | 920 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | Chassis Mount |
|

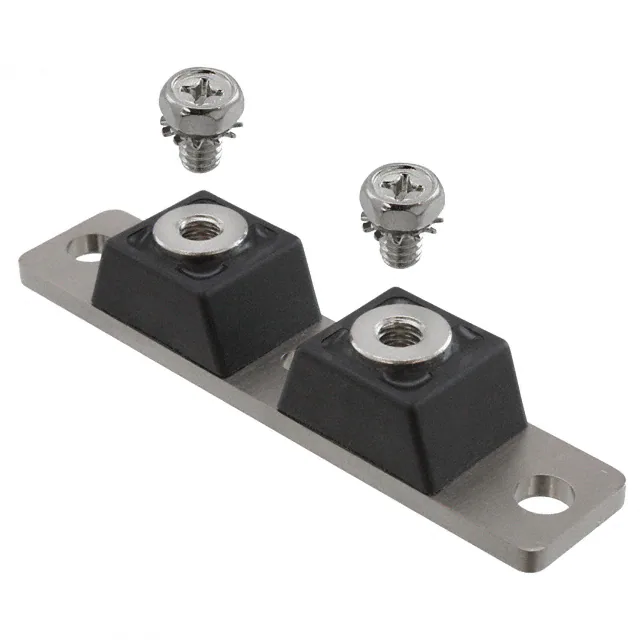

MBR12040CTDIODE MODULE 40V 120A 2TOWER |
2,184 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|

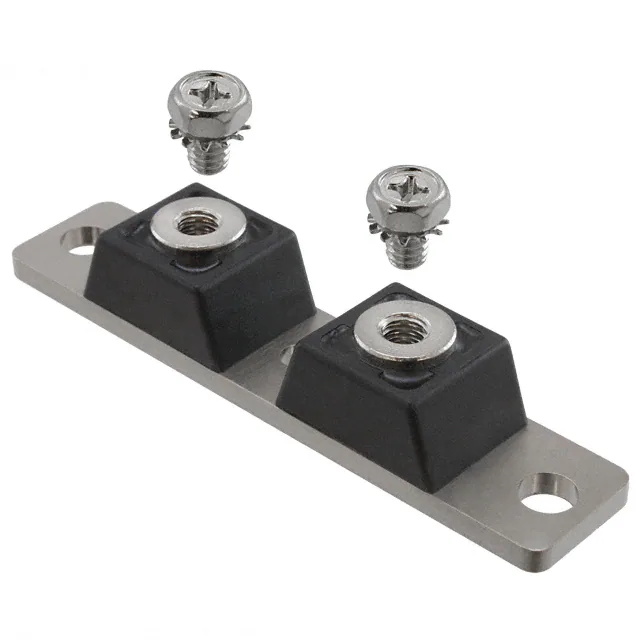

MBR12040CTRDIODE MODULE 40V 120A 2TOWER |
3,866 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 40 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
MBR12060CTDIODE MODULE 60V 120A 2TOWER |
2,778 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 60 V | 120A (DC) | 750 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR12045CTDIODE MODULE 45V 120A 2TOWER |
2,293 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR12060CTRDIODE MODULE 60V 120A 2TOWER |
3,130 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 120A (DC) | 750 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
MBR12020CTDIODE MODULE 20V 120A 2TOWER |
2,771 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 20 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR12020CTRDIODE MODULE 20V 120A 2TOWER |
2,467 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 20 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR12030CTDIODE MODULE 30V 120A 2TOWER |
2,022 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR12030CTRDIODE MODULE 30V 120A 2TOWER |
2,706 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 30 V | 120A (DC) | 650 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
MBR12035CTDIODE MODULE 35V 120A 2TOWER |
3,467 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 35 V | 120A (DC) | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
MBR120100CTDIODE MODULE 100V 120A 2TOWER |
3,216 | 68.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Schottky | 100 V | 120A (DC) | 840 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 20 V | - | Chassis Mount |
