| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VX60M45PWHM3/P60A,45V,TRENCH SCHOTTKY RECT. |
2,201 | 2.15 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 600 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 450 µA @ 45 V | -40°C ~ 175°C | Through Hole |
|
VS-60CTQ150HN3DIODE SCHOTTKY 150V 30A TO220AB |
3,066 | 2.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 150 V | 30A | 880 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 75 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
|
VX60202PGWHM3/P60A,200V,TRENCH SCHOTTKY RECT. |
2,728 | 2.16 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 200 V | 30A | 920 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -40°C ~ 175°C | Through Hole |
|
|
VX80M45PW-M3/P80A,45V,TRENCH SCHOTTKY RECT. |
2,771 | 2.19 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 45 V | 40A | 610 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 45 V | -40°C ~ 175°C | Through Hole |
;;3.jpg)
|
UG30APT-E3/45DIODE ARRAY GP 50V 30A TO3P |
2,398 | 2.23 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 Pair Common Cathode | Standard | 50 V | 30A | 1.15 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 50 V | -65°C ~ 150°C | Through Hole |
|
|
UG30BPT-E3/45DIODE ARRAY GP 100V 30A TO3P |
3,675 | 2.23 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 Pair Common Cathode | Standard | 100 V | 30A | 1.15 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 100 V | -65°C ~ 150°C | Through Hole |
|
|
UG30CPT-E3/45DIODE ARRAY GP 150V 30A TO3P |
3,180 | 2.23 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | 1 Pair Common Cathode | Standard | 150 V | 30A | 1.15 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 15 µA @ 150 V | -65°C ~ 150°C | Through Hole |
|

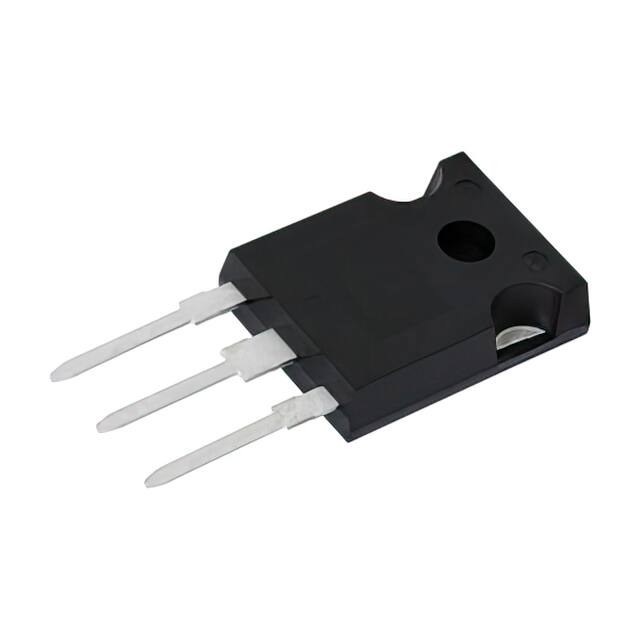

VS-MBR40L15CW-N3DIODE ARRAY SCHOTTKY 15V TO247AC |
2,836 | 2.27 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 15 V | 20A | 420 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | -55°C ~ 125°C | Through Hole |
|
|
VX80100PWHM3/P80A,100V,TRENCH SCHOTTKY RECT. |
3,258 | 2.28 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 100 V | 40A | 800 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 100 V | -40°C ~ 150°C | Through Hole |
|
|
VS-40L45CW-N3DIODE ARRAY SCHOTTKY 45V TO247AC |
3,836 | 2.35 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | 150°C (Max) | Through Hole |
|
|
VX8060PWHM3/P80A,60V,TRENCH SCHOTTKY RECT. |
2,201 | 2.37 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 610 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 mA @ 60 V | -40°C ~ 150°C | Through Hole |
|
|
VX80M60PWHM3/P80A,60V,TRENCH SCHOTTKY RECT. |
3,498 | 2.37 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 660 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 60 V | -40°C ~ 175°C | Through Hole |
|
V40D120C-M3/IDIODE ARRAY SCHOTTKY 120V SMPD |
2,519 | 2.48 |
RFQ |
Datasheet |
Tape & Reel (TR) | eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 120 V | 20A | 890 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 150°C | Surface Mount |
|
|
VX8045PWHM3/P80A,45V,TRENCH SCHOTTKY RECT. |
2,829 | 2.54 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 45 V | 40A | 560 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.4 mA @ 45 V | -40°C ~ 150°C | Through Hole |
|
|
VX80M45PWHM3/P80A,45V,TRENCH SCHOTTKY RECT. |
3,652 | 2.56 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 45 V | 40A | 610 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 550 µA @ 45 V | -40°C ~ 175°C | Through Hole |
|
VS-40CPQ060HN3SCHOTTKY - TO-247 |
2,245 | 2.61 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 680 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.7 mA @ 60 V | -55°C ~ 150°C | Through Hole |
|
|
VS-C5PX3012LHN3FREDS - TO-247G5,30A,1200V, LOW |
3,971 | 2.68 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 1200 V | 15A | 3.3 V @ 15 A | Small Signal =< 200mA (Io), Any Speed | 77.5 ns | 50 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
|
VS-C5PH3012LHN3FREDS - TO-247G5,30A,1200V, LOW |
2,547 | 2.68 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 1200 V | 15A | 2.5 V @ 15 A | Small Signal =< 200mA (Io), Any Speed | 75.5 ns | 50 µA @ 1200 V | -55°C ~ 175°C | Through Hole |
|
|
VS-40CPQ050-N3DIODE ARRAY SCHOTTKY 50V TO247AC |
3,332 | 2.91 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 50 V | 40A | 680 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.7 mA @ 50 V | 150°C (Max) | Through Hole |
|
VS-20CTQ150STRLPBFDIODE ARRAY SCHOTTKY 150V D2PAK |
2,492 | 3.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Discontinued at Mosen | 1 Pair Common Cathode | Schottky | 150 V | 10A | 1 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 25 µA @ 150 V | -55°C ~ 175°C | Surface Mount |
