| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-30CTQ060STRR-M3DIODE SCHOTTKY 60V 15A D2PAK |
3,413 | 1.22 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 15A | 620 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 60 V | -55°C ~ 150°C | Surface Mount |
|
VI40100C-M3/4WDIODE SCHOTTKY 40A 100V TO-262AA |
3,535 | 1.22 |
RFQ |
Datasheet |
Tube | TMBS® | Active | 1 Pair Common Cathode | Schottky | 100 V | 20A | 730 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | Through Hole |
|
VT4060C-E3/4WDIODE SCHOTTKY 60V 20A TO-220AB |
3,435 | 1.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 20A | 620 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 60 V | -40°C ~ 150°C | Through Hole |
|
VF40M120C-M3/4WDIODE SCHOTTKY 40A 120V ITO220AB |
2,568 | 1.23 |
RFQ |
Datasheet |
Tube | TMBS® | Active | 1 Pair Common Cathode | Schottky | 120 V | 20A | 890 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 150°C | Through Hole |
|
|
MBR30H45PT-E3/45DIODE ARRAY SCHOTTKY 45V TO220AB |
3,299 | 1.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 730 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 45 V | -65°C ~ 175°C | Through Hole |
|
|
VBT4060C-E3/8WDIODE SCHOTTKY 40A 60V TO-263AB |
3,547 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | TMBS® | Active | 1 Pair Common Cathode | Schottky | 60 V | 20A | 620 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 60 V | -40°C ~ 150°C | Surface Mount |
|
|
VBT4060C-E3/4WDIODE SCHOTTKY 40A 60V TO-263AB |
3,838 | 1.23 |
RFQ |
Datasheet |
Tube | TMBS® | Active | 1 Pair Common Cathode | Schottky | 60 V | 20A | 620 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 60 V | -40°C ~ 150°C | Surface Mount |
|
|
VB30120C-E3/8WDIODE ARRAY SCHOTTKY 120V TO263 |
3,242 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR) | TMBS® | Active | 1 Pair Common Cathode | Schottky | 120 V | 15A | 970 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 120 V | -40°C ~ 150°C | Surface Mount |
|
|
FEPF16FTHE3_A/PDIODE ARRAY GP 300V 8A ITO220AB |
2,556 | 1.24 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 300 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 300 V | -55°C ~ 150°C | Through Hole |
|
|
FEPF16GTHE3_A/PDIODE ARRAY GP 400V 8A ITO220AB |
3,056 | 1.24 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 400 V | 8A | 1.3 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 400 V | -55°C ~ 150°C | Through Hole |
|
|
FEPF16HTHE3_A/PDIODE ARRAY GP 500V 8A ITO220AB |
3,610 | 1.24 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 500 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 500 V | -55°C ~ 150°C | Through Hole |
|
|
FEPF16JTHE3_A/PDIODE ARRAY GP 600V 8A ITO220AB |
2,882 | 1.24 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 600 V | 8A | 1.5 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 600 V | -55°C ~ 150°C | Through Hole |
|
|
VI40M120C-M3/4WDIODE SCHOTTKY 40A 120V TO-262AA |
3,581 | 1.24 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, TMBS® | Active | 1 Pair Common Cathode | Schottky | 120 V | 20A | 890 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 175°C | Through Hole |
|
|
VS-40L15CT-1-M3DIODE SCHOTTKY 15V 20A TO262AA |
3,258 | 1.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Cathode | Schottky | 15 V | 20A | 410 mV @ 19 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 15 V | -55°C ~ 125°C | Through Hole |
|
V40D45CHM3/I40A 45V SMPD TRENCH SKY RECT |
3,546 | 1.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 570 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.5 mA @ 45 V | -40°C ~ 150°C | Surface Mount |
_Top.jpg)
|

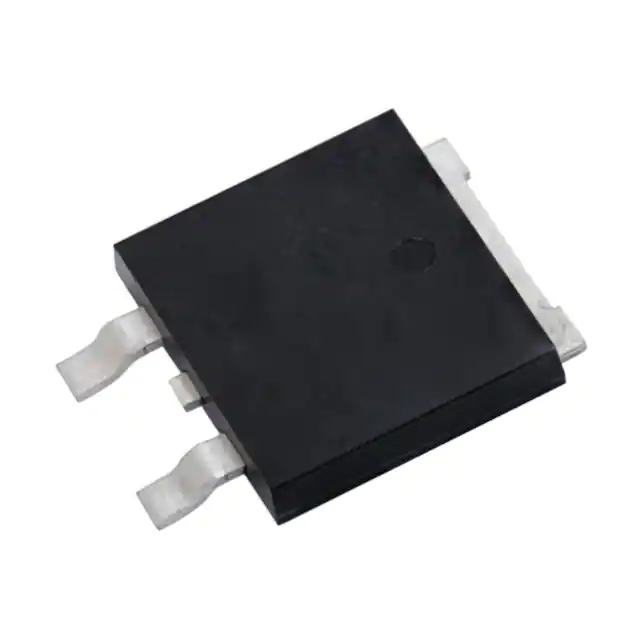

VS-30CDH06HM3/IFREDS - SMPC30A,600V,HYPERFAST |
3,959 | 1.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Standard | 600 V | 15A | 2.15 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | 41 ns | 20 µA @ 600 V | -55°C ~ 175°C | Surface Mount |
|
VS-8CWH02FNTRLHM3DIODE STANDARD 200V 4A DPAK |
3,155 | 1.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 200 V | 4A | 950 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 27 ns | 4 µA @ 200 V | -65°C ~ 175°C | Surface Mount |
|
|
VS-8CWH02FNTRRHM3DIODE STANDARD 200V 4A DPAK |
3,898 | 1.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, FRED Pt® | Active | 1 Pair Common Cathode | Standard | 200 V | 4A | 950 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 27 ns | 4 µA @ 200 V | -65°C ~ 175°C | Surface Mount |
|
|
V60D60CHM3/I60A 60V SMPD TRENCH SKY RECT |
2,024 | 1.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP®, TMBS® | Active | 1 Pair Common Cathode | Schottky | 60 V | 30A | 640 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 60 V | -40°C ~ 150°C | Surface Mount |
|
|
VBT3045CBP-M3/8WDIODE SCHOTTKY 30A 45V TO-263AB |
2,071 | 1.25 |
RFQ |
Datasheet |
Tape & Reel (TR) | TMBS® | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 570 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | -40°C ~ 150°C | Surface Mount |
