| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UGB15JTHE3/45DIODE ARRAY GENERAL PURPOSE |
2,685 | 0.00 |
RFQ |
Tube | Automotive, AEC-Q101 | Obsolete | - | Standard | 600 V | - | 1.75 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 30 µA @ 600 V | -55°C ~ 150°C | Surface Mount | |
|
|
UGB15JTHE3/81DIODE ARRAY GENERAL PURPOSE |
3,478 | 0.00 |
RFQ |
Tube | Automotive, AEC-Q101 | Obsolete | - | Standard | 600 V | - | 1.75 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 30 µA @ 600 V | -55°C ~ 150°C | Surface Mount | |
|
|
UGB5HT-E3/45DIODE ARRAY GENERAL PURPOSE |
3,334 | 0.00 |
RFQ |
Tube | - | Obsolete | - | Standard | 500 V | - | 1.75 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 30 µA @ 500 V | -55°C ~ 150°C | Surface Mount | |
|
|
UGB8HCT-E3/45DIODE ARRAY GENERAL PURPOSE |
2,237 | 0.00 |
RFQ |
Tube | - | Obsolete | - | Standard | 500 V | - | 1.75 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 30 µA @ 500 V | -55°C ~ 150°C | Surface Mount | |
|
|
UGB8JCT-E3/45DIODE ARRAY GENERAL PURPOSE |
3,184 | 0.00 |
RFQ |
Tube | - | Obsolete | - | Standard | 600 V | - | 1.75 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 30 µA @ 600 V | -55°C ~ 150°C | Surface Mount | |
|
UGE10BCT-E3/45DIODE ARRAY GENERAL PURPOSE |
3,209 | 0.00 |
RFQ |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 100 V | 5A | 1.1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 100 V | -40°C ~ 150°C | Through Hole | |
|
|
UGE18ACT-E3/45DIODE ARRAY GENERAL PURPOSE |
2,491 | 0.00 |
RFQ |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 50 V | 18A | 1.2 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 10 µA @ 50 V | -65°C ~ 150°C | Through Hole | |
|
|
UGE18BCT-E3/45DIODE ARRAY GENERAL PURPOSE |
2,830 | 0.00 |
RFQ |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 100 V | 18A | 1.2 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 10 µA @ 100 V | -65°C ~ 150°C | Through Hole | |
|
VS-43CTQ100SR-M3RSCHOTTKY - D2PAK |
2,588 | 0.00 |
RFQ |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 810 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 175°C | Surface Mount | |
|

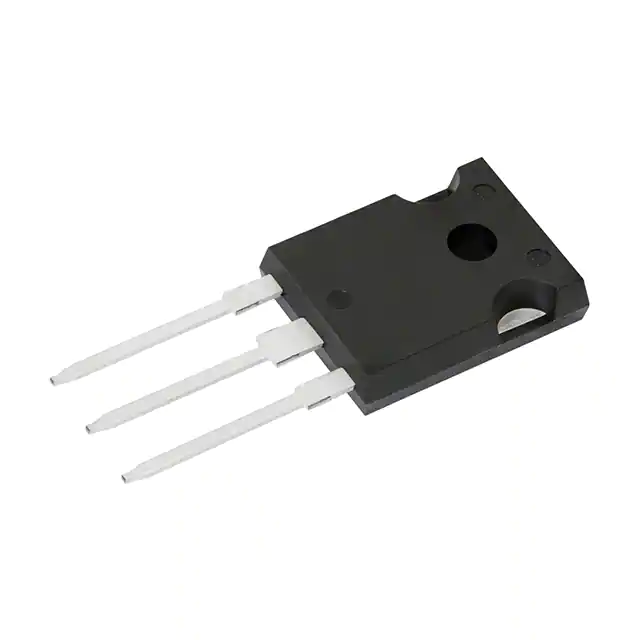

VS-63CPQ100HN3SCHOTTKY - TO-247 |
3,640 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 30A | 790 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | -55°C ~ 175°C | Through Hole |
|
|
VS-60CPQ150HN3SCHOTTKY - TO-247 |
2,434 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 30A | 830 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 175°C | Through Hole |
.jpg)
|
VS-25CTQ045SLHM3DIODE SCHOTTKY 45V 25A D2PAK |
2,481 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 710 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 45 V | -55°C ~ 150°C | Surface Mount |
|
VS-30CPU04LHN3DIODE FRED 400V 15A TO247AD |
2,096 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 400 V | 15A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 46 ns | 10 µA @ 400 V | -55°C ~ 175°C | Through Hole |
|
|
VS-96-1205PBFDIODE SCHOTTKY TO220 |
3,038 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 40A | 980 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 175°C | Through Hole | |
|
|
VS-95-5384PBFDIODE SCHOTTKY TO263 |
2,903 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 30A | 710 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.75 mA @ 45 V | -55°C ~ 150°C | Surface Mount | |
|
|
VS-95-9878PBFDIODE SCHOTTKY TO220 |
3,399 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 40A | 680 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | -55°C ~ 150°C | Through Hole | |
|
|
VF40150C-E3R/4WDIODE SCHOTTKY 150V |
2,543 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.43 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 150 V | -55°C ~ 150°C | Through Hole | |
|
SB360L-5705E3/72DIODE SCHOTTKY |
3,002 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
V40120C-E3L/4WDIODE ARRAY SCHOTTKY |
2,631 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 880 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 150°C | Through Hole | |
|
|
BYQ28EB-100-E3/45DIODE ARRAY |
3,120 | 0.00 |
RFQ |
Bulk | * | Last Time Buy | - | - | - | - | - | - | - | - | - | - |
