| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
111CNQ045ASLDIODE ARRAY SCHOTTKY 45V D618SL |
2,603 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 55A | 610 mV @ 55 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | -55°C ~ 175°C | Surface Mount |
|
|
88CNQ060ASLDIODE ARRAY SCHOTTKY 60V D618SL |
2,552 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 40A | 580 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 640 µA @ 60 V | -55°C ~ 150°C | Surface Mount |
|
88CNQ060ADIODE ARRAY SCHOTTKY 60V D618 |
2,952 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 40A | 580 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 640 µA @ 60 V | -55°C ~ 150°C | Chassis Mount |
|
70CRU02DIODE ARRAY GP 200V 35A TO218 |
3,103 | 0.00 |
RFQ |
Tube | FRED Pt® | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 35A | 1.09 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 28 ns | 60 µA @ 200 V | -55°C ~ 175°C | Through Hole | |
|
111CNQ045ASMDIODE ARRAY SCHOTTKY 45V D618SM |
2,658 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 55A | 610 mV @ 55 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | -55°C ~ 175°C | Through Hole |
|
|
89CNQ150ADIODE ARRAY SCHOTTKY 150V D618 |
3,983 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 40A | 990 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 150 V | -55°C ~ 175°C | Chassis Mount |
|
|
83CNQ080ASLDIODE ARRAY SCHOTTKY 80V D618SL |
3,939 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 80A | 1 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 80 V | -55°C ~ 175°C | Surface Mount |
|
|
209CNQ135DIODE MODULE 135V 100A TO244AB |
3,748 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 135 V | 100A | 1.03 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 135 V | -55°C ~ 175°C | Chassis Mount |
|

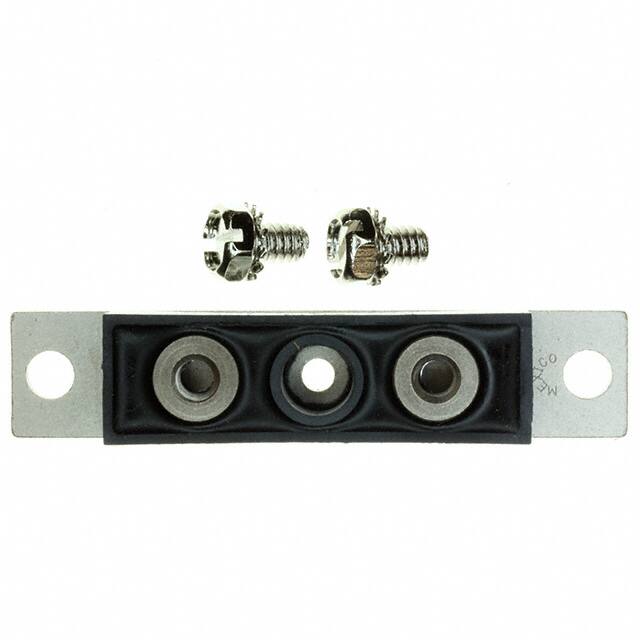

208CNQ060DIODE MODULE 60V 100A TO244AB |
2,923 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 100A | 680 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.1 mA @ 60 V | -55°C ~ 150°C | Chassis Mount |
|
|
208CMQ060DIODE MODULE 60V 100A TO244AB |
3,370 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 100A | 680 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.1 mA @ 60 V | -55°C ~ 150°C | Chassis Mount |
|
UFB200FA40DIODE MODULE 400V 100A SOT227B |
2,081 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Standard | 400 V | 100A (DC) | 1.24 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 93 ns | 50 µA @ 400 V | - | Chassis Mount |
|

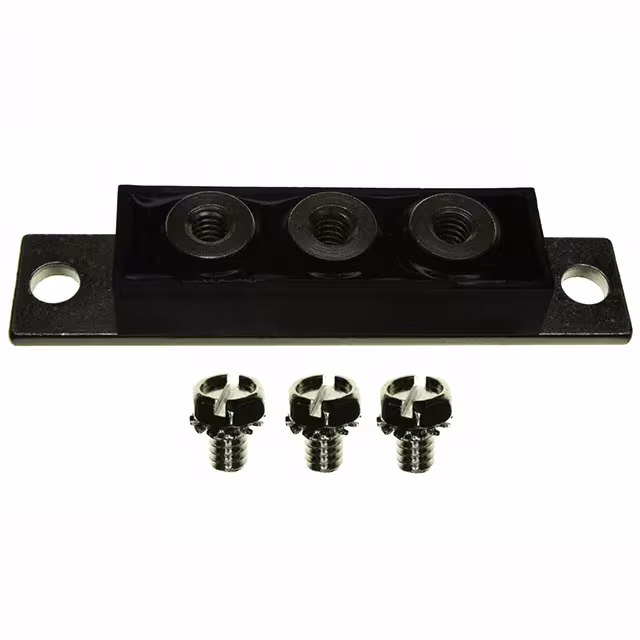

409CNQ135DIODE MODULE 135V 200A TO244AB |
2,296 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 135 V | 200A | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 135 V | -55°C ~ 175°C | Chassis Mount |
|
|
400CMQ045DIODE MODULE 45V 200A TO244AB |
3,235 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 200A | 570 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 45 V | -55°C ~ 150°C | Chassis Mount |
|

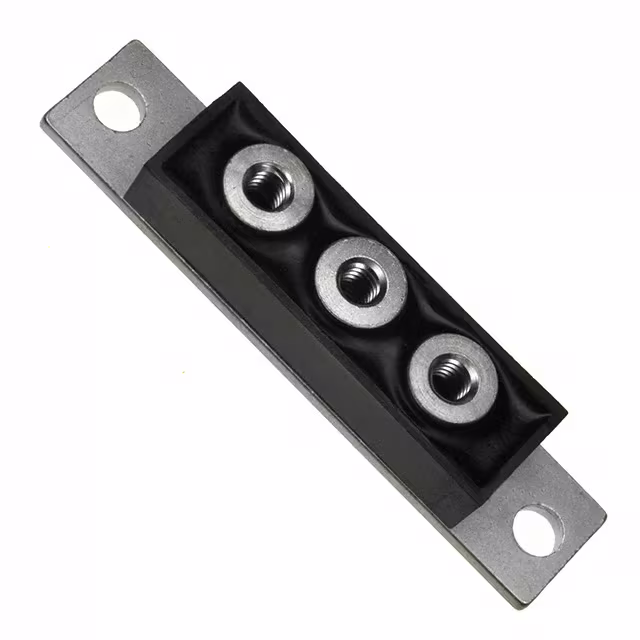

225CMQ015DIODE MODULE 15V 110A TO244AB |
3,288 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 15 V | 110A | 380 mV @ 110 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 40 mA @ 15 V | -55°C ~ 150°C | Chassis Mount | |
|
|
403DMQ100DIODE MODULE 100V 400A TO244AB |
2,737 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Schottky | 100 V | 400A | 1.06 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | -55°C ~ 175°C | Chassis Mount |
|
|
HFA120EA60DIODE MODULE 600V 75A SOT227B |
3,819 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | Obsolete | 2 Independent | Standard | 600 V | 75A (DC) | 1.7 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 98 ns | 20 µA @ 600 V | - | Chassis Mount |
|
|
408CMQ060DIODE MODULE 60V 200A TO244AB |
2,884 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 200A | 670 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 60 V | -55°C ~ 150°C | Chassis Mount |
|
|
408CNQ060DIODE MODULE 60V 200A TO244AB |
2,962 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 200A | 680 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2.2 mA @ 60 V | -55°C ~ 150°C | Chassis Mount |
|
|
83CNQ080ASMDIODE ARRAY SCHOTTKY 80V D618SM |
2,157 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 80A | 1 V @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 80 V | -55°C ~ 175°C | Through Hole |
|
|
113CNQ100ASLDIODE ARRAY SCHOTTKY 100V D618SL |
3,901 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 55A | 810 mV @ 55 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 175°C | Surface Mount |
