| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

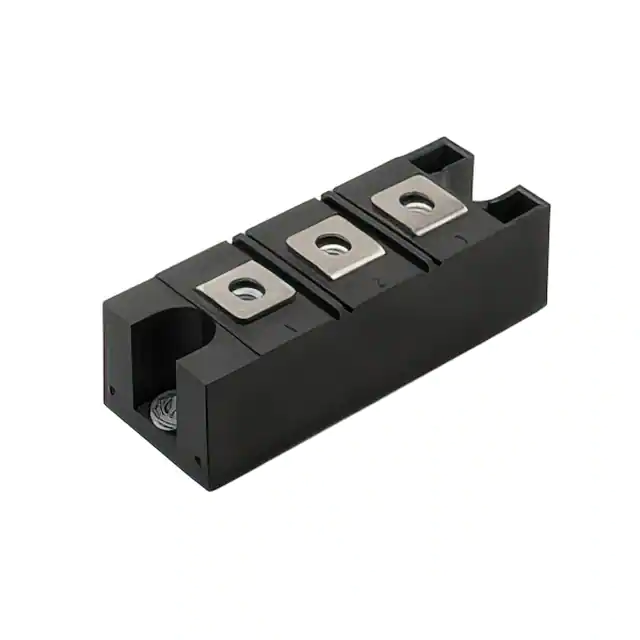

VS-VSKC166/08PBFDIODE GEN 800V 82.5A INTAPAK |
2,854 | 60.41 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 82.5A | 1.43 V @ 259 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKD166/08PBFDIODE GEN 800V 82.5A INTAPAK |
3,644 | 60.52 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 800 V | 82.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC166/12PBFDIODE MODULE 1.2KV INT-A-PAK |
2,606 | 61.01 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 165A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | - | Chassis Mount |
|
|
VS-VSKD166/12PBFDIODE GEN 1.2KV 82.5A INTAPAK |
2,728 | 61.13 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 82.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC166/16PBFDIODE GEN 1.6KV 82.5A INTAPAK |
3,310 | 62.77 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 82.5A | 1.43 V @ 259 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKD166/14PBFDIODE GEN 1.4KV 82.5A INTAPAK |
3,215 | 62.89 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1400 V | 82.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1400 V | -40°C ~ 150°C | Chassis Mount |
|
VS-VSKJ166/16PBFDIODE GEN 1.6KV 82.5A INTAPAK |
2,145 | 62.89 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 82.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
VS-VSKDF500/06PBFMODULES RECTIFIERS - IAP ULTRAFA |
3,079 | 63.20 |
RFQ |
Datasheet |
Bulk | FRED Pt® Gen 4 | Active | 1 Independent | Standard | 600 V | 772A (DC) | 1.66 V @ 500 A | Fast Recovery =< 500ns, > 200mA (Io) | 104 ns | 10 µA @ 600 V | -40°C ~ 175°C | Chassis Mount |
|
|
VS-VSKC196/04PBFDIODE GEN 400V 97.5A INTAPAK |
2,961 | 63.27 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 400 V | 97.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKJ236/04PBFDIODE MODULE 400V INT-A-PAK |
3,566 | 63.38 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 400 V | 230A | - | Standard Recovery >500ns, > 200mA (Io) | - | - | - | Chassis Mount |
|
|
VS-VSKD196/04PBFDIODE GEN 400V 97.5A INTAPAK |
2,949 | 63.38 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 97.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC196/08PBFDIODE GEN 800V 97.5A INTAPAK |
2,045 | 63.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 97.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKD196/08PBFDIODE GEN 800V 97.5A INTAPAK |
3,380 | 64.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 800 V | 97.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD236/04PBFDIODE GEN PURP 400V 115A INTAPAK |
2,762 | 64.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKJ236/12PBFDIODE GEN 1.2KV 115A INTAPAK |
3,672 | 64.02 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1200 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKD236/08PBFDIODE GEN PURP 800V 115A INTAPAK |
3,361 | 64.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 800 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 800 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKJ236/16PBFDIODE GEN 1.6KV 115A INTAPAK |
2,579 | 64.66 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Anode | Standard | 1600 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
VS-VSKC196/12PBFDIODE GEN 1.2KV 97.5A INTAPAK |
2,522 | 66.58 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 97.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKC236/12PBFDIODE GEN 1.2KV 115A INTAPAK |
2,060 | 66.58 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 115A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -55°C ~ 175°C | Chassis Mount |
|
|
VS-VSKD196/12PBFDIODE GEN 1.2KV 97.5A INTAPAK |
2,735 | 66.69 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 97.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
