Diodes - Bridge Rectifiers(9417)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MSCDC50H701AGPM-DIODE-SIC-SBD-SP1F |
2,296 | 80.58 |
RFQ |
Datasheet |
Tube | - | Active | Three Phase | Silicon Carbide Schottky | 700 V | - | - | 200 µA @ 700 V | -40°C ~ 175°C (TJ) | Chassis Mount | Module | ||||||
|
VS-110MT120KPBFBRIDGE RECT 3P 1.2KV 110A MT-K |
2,869 | 83.44 |
RFQ |
Datasheet |
Tray | - | Active | Three Phase | Standard | 1.2 kV | 110 A | - | - | -40°C ~ 150°C (TJ) | Chassis Mount | MT-K Module | ||||||
|
M5060TB600BRIDGE RECT 3P 600V 60A MODULE |
3,559 | 90.86 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 600 V | 60 A | 1.35 V @ 50 A | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | ||||||
|

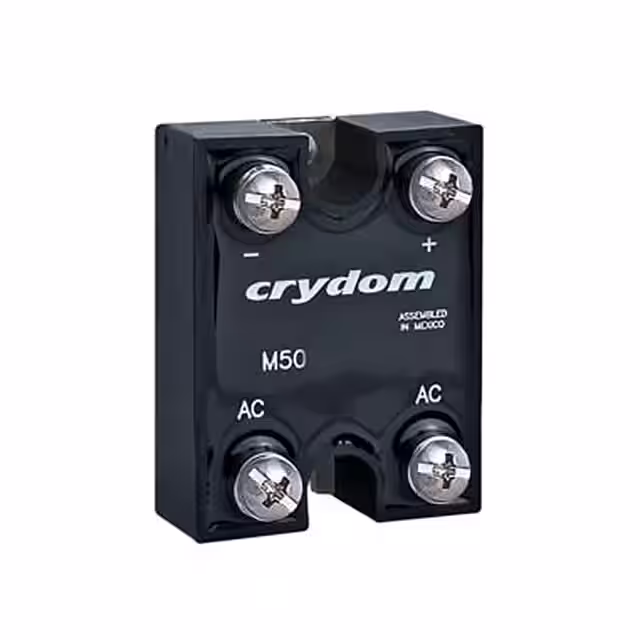

M5060TB1400BRIDGE RECT 3P 1.4KV 60A MODULE |
2,728 | 112.20 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.4 kV | 60 A | 1.35 V @ 50 A | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | ||||||
|

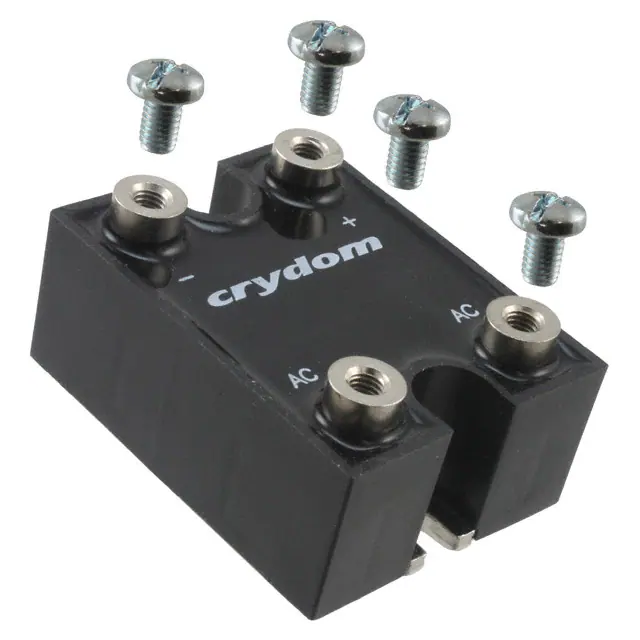

M50100SB600BRIDGE RECT 1P 600V 100A MODULE |
2,376 | 113.24 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 100 A | 1.2 V @ 100 A | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | ||||||
|
APTDF200H60GBRIDGE RECT 1PHASE 600V 270A SP6 |
2,904 | 132.49 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 270 A | 2 V @ 200 A | 350 µA @ 600 V | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 | ||||||
|
|
M50100TB600BRIDGE RECT 3P 600V 100A MODULE |
3,675 | 136.95 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 600 V | 100 A | 1.2 V @ 100 A | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | ||||||
.jpg)
|
MSCDC50X1201AGPM-DIODE-SIC-SBD-SP1F |
2,579 | 142.34 |
RFQ |
Datasheet |
Tube | - | Active | Three Phase | Silicon Carbide Schottky | 1.2 kV | - | - | 200 µA @ 1200 V | -40°C ~ 175°C (TJ) | Chassis Mount | Module | ||||||
|
|
M50100TB1600BRIDGE RECT 3P 1.6KV 100A MODULE |
3,268 | 194.93 |
RFQ |
Datasheet |
Bulk | - | Active | Three Phase | Standard | 1.6 kV | 100 A | 1.2 V @ 100 A | - | -40°C ~ 125°C (TJ) | Chassis Mount | Module | ||||||
|

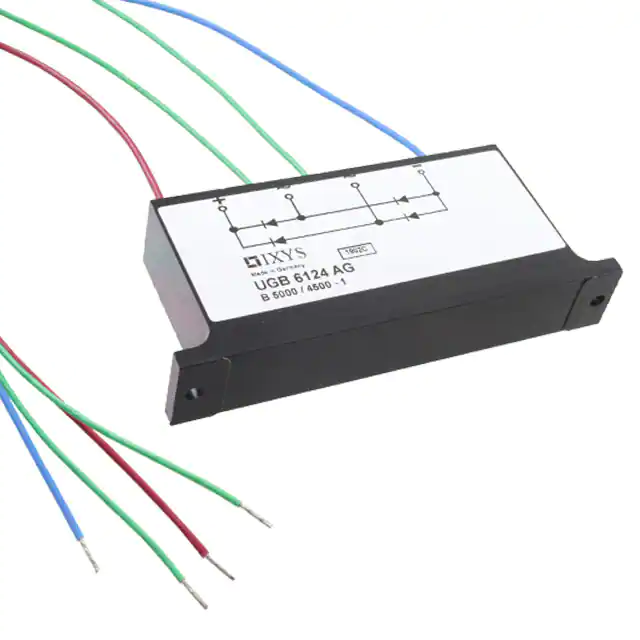

UGB6124AGBRIDGE RECT 1P 10.5KV 1A UGB-1 |
3,068 | 209.09 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 10.5 kV | 1 A | - | - | 150°C (TJ) | Chassis Mount | UGB-1 | ||||||
.jpg)
|
MSCDC50X1701AGPM-DIODE-SIC-SBD-SP1F |
3,469 | 277.42 |
RFQ |
Datasheet |
Tube | - | Active | Three Phase | Silicon Carbide Schottky | 1.7 kV | - | - | 200 µA @ 1700 V | -40°C ~ 175°C (TJ) | Chassis Mount | Module | ||||||
|
MSCDC200H120AGPM-DIODE-SIC-SBD-SP6C |
2,276 | 495.39 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Silicon Carbide Schottky | 1.2 kV | - | - | 800 µA @ 1200 V | -40°C ~ 175°C (TJ) | Chassis Mount | Module | ||||||
.jpg)
|
MSCDC200H170AGPM-DIODE-SIC-SBD-SP6C |
3,742 | 943.43 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Silicon Carbide Schottky | 1.7 kV | - | - | 800 µA @ 1700 V | -40°C ~ 175°C (TJ) | Chassis Mount | Module | ||||||
|
UG4KB60BRIDGE RECT 1PHASE 600V 4A D3K |
933 | 0.58 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 4 A | 1.1 V @ 4 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
DF005-GBRIDGE RECT 1PHASE 50V 1A 4-DF |
951 | 0.61 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 1 A | 1.1 V @ 1 A | 10 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-EDIP (0.321, 8.15mm) | ||||||
|
GBU410BRIDGE RECT 1PHASE 1KV 4A GBU |
3,540 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 4 A | 1.1 V @ 4 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
GBJ610BRIDGE RECT 1PHASE 1KV 6A GBJ |
102 | 0.91 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 6 A | 1.1 V @ 6 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBU810GBRIDGE RECT 1PHASE 1KV 8A GBU |
685 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 8 A | 1.1 V @ 8 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
GBU10005-GBRIDGE RECT 1PHASE 50V 10A GBU |
139 | 1.44 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 10 A | 1 V @ 5 A | 10 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
GBU6BBRIDGE RECT 1PHASE 100V 6A GBU |
383 | 1.53 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 100 V | 6 A | 1.1 V @ 6 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU |
