| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

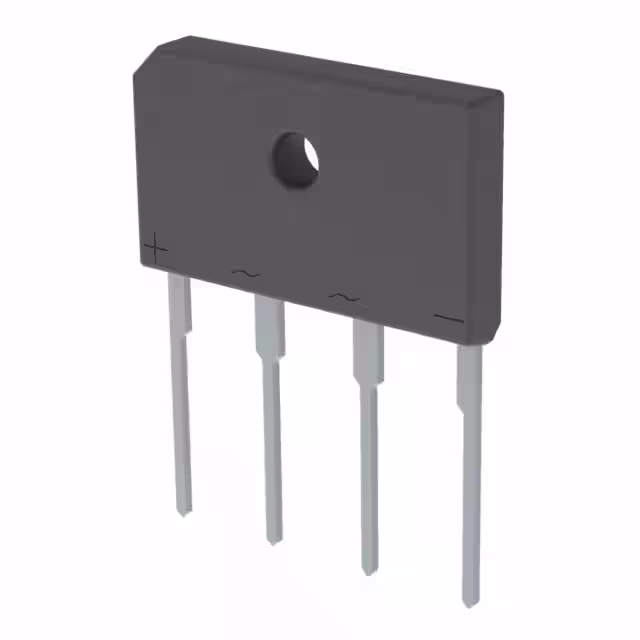

TSS4B01G C2GBRIDGE RECT 1PHASE 50V 4A TS4B |
3,101 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 4 A | 980 mV @ 4 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B01G D2GBRIDGE RECT 1PHASE 50V 4A TS4B |
2,234 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 4 A | 980 mV @ 4 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B01GHC2GBRIDGE RECT 1PHASE 50V 4A TS4B |
3,867 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 50 V | 4 A | 980 mV @ 4 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B01GHD2GBRIDGE RECT 1PHASE 50V 4A TS4B |
2,631 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 50 V | 4 A | 980 mV @ 4 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B02G C2GBRIDGE RECT 1PHASE 100V 4A TS4B |
3,557 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 4 A | 980 mV @ 4 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B02G D2GBRIDGE RECT 1PHASE 100V 4A TS4B |
3,889 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 4 A | 980 mV @ 4 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B02GHC2GBRIDGE RECT 1PHASE 100V 4A TS4B |
2,776 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 100 V | 4 A | 980 mV @ 4 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B02GHD2GBRIDGE RECT 1PHASE 100V 4A TS4B |
2,213 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 100 V | 4 A | 980 mV @ 4 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B03G C2GBRIDGE RECT 1PHASE 200V 4A TS4B |
2,738 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 4 A | 980 mV @ 4 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B03GHC2GBRIDGE RECT 1PHASE 200V 4A TS4B |
3,051 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 200 V | 4 A | 980 mV @ 4 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B03GHD2GBRIDGE RECT 1PHASE 200V 4A TS4B |
3,040 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 200 V | 4 A | 980 mV @ 4 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B04G C2GBRIDGE RECT 1PHASE 400V 4A TS4B |
2,045 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 4 A | 1.3 V @ 4 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B04G D2GBRIDGE RECT 1PHASE 400V 4A TS4B |
3,108 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 4 A | 1.3 V @ 4 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B04GHC2GBRIDGE RECT 1PHASE 400V 4A TS4B |
3,403 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 400 V | 4 A | 1.3 V @ 4 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
|
TSS4B04GHD2GBRIDGE RECT 1PHASE 400V 4A TS4B |
3,691 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 400 V | 4 A | 1.3 V @ 4 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-4B | ||||||
|
GBPC15005 T0GBRIDGE RECT 1PHASE 50V 15A GBPC |
2,245 | 0.00 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 50 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
GBPC15005M T0GBRIDGE RECT 1P 50V 15A GBPC-M |
2,154 | 0.00 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 50 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC-M | ||||||
|
GBPC15005W T0GBRIDGE RECT 1P 50V 15A GBPC-W |
2,033 | 0.00 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 50 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
GBPC1501 T0GBRIDGE RECT 1PHASE 100V 15A GBPC |
3,704 | 0.00 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 100 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
|
GBPC1501M T0GBRIDGE RECT 1P 100V 15A GBPC-M |
2,420 | 0.00 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 100 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC-M |
