| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBF10TGBRIDGE RECTIFIER DIODE, 1 PHASE |
2,063 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 1 A | 1.05 V @ 500 mA | 10 µA @ 600 V | 150°C (TJ) | Through Hole | |||||||
|
DBD10C-EDBD10 - 1A SINGLE-PHASE BRIDGE R |
3,585 | 0.36 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | ||||||
|
DBF20CBRIDGE RECTIFIER DIODE, 2A, 200V |
2,967 | 0.60 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | ||||||
|
GBU4BBRIDGE RECT 1PHASE 100V 4A GBU |
376 | 1.61 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 4 A | 1 V @ 4 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU6GBRIDGE RECT 1PHASE 400V 6A GBU |
734 | 1.70 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 6 A | 1 V @ 6 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8MBRIDGE RECT 1PHASE 1KV 8A GBU |
245 | 1.87 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 8 A | 1 V @ 8 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
GBPC1204BRIDGE RECT 1PHASE 400V 12A GBPC |
3,654 | 5.04 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 400 V | 12 A | 1.1 V @ 6 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
|
GBPC2504BRIDGE RECT 1PHASE 400V 25A GBPC |
3,761 | 6.08 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 400 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
|
GBPC1502BRIDGE RECT 1PHASE 200V 15A GBPC |
3,979 | 5.86 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 200 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
|
GBU6BBRIDGE RECT 1PHASE 100V 6A GBU |
178 | 1.63 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 6 A | 1 V @ 6 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU6ABRIDGE RECT 1PHASE 50V 6A GBU |
397 | 1.70 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 6 A | 1 V @ 6 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU8ABRIDGE RECT 1PHASE 50V 8A GBU |
247 | 1.77 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 8 A | 1 V @ 8 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|

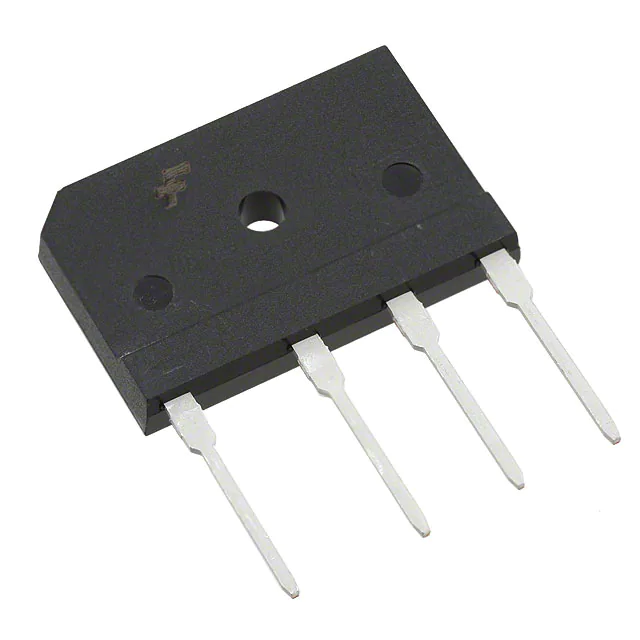

DFB2060BRIDGE RECT 1P 600V 20A TS-6P |
306 | 2.91 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 20 A | 1.1 V @ 20 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | ||||||
|
DFB2080BRIDGE RECT 1PHASE 800V 20A TS6P |
3,526 | 2.94 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 20 A | 1.1 V @ 20 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | ||||||
|
|
GBU4JBRIDGE RECT 1PHASE 600V 4A GBU |
800 | 1.81 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 4 A | 1 V @ 4 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBPC1206BRIDGE RECT 1PHASE 600V 12A GBPC |
943 | 4.82 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 12 A | 1.1 V @ 6 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
GBPC1204WBRIDGE RECT 1PH 400V 12A GBPC-W |
289 | 4.82 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 400 V | 12 A | 1.1 V @ 6 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
GBPC1510WBRIDGE RECT 1P 1KV 15A GBPC-W |
2,420 | 5.23 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.1 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
GBPC1504WBRIDGE RECT 1P 400V 15A GBPC-W |
3,788 | 5.43 |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 400 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
GBPC1506WBRIDGE RECT 1P 600V 15A GBPC-W |
3,221 | 5.51 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W |
