| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DBA100G-K15BRIDGE RECT 1PHASE 600V 3.7A |
3,364 | 1.00 |
RFQ |
Datasheet |
Bulk,Tray | - | Obsolete | Single Phase | Standard | 600 V | 3.7 A | 1.05 V @ 5 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
DBA150GBRIDGE RECT 1PHASE 600V 4.5A |
3,049 | 2.09 |
RFQ |
Datasheet |
Tray,Tray | - | Obsolete | Single Phase | Standard | 600 V | 4.5 A | 1.05 V @ 7.5 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
DBA20GBRIDGE RECT 1PHASE 600V 2A |
3,605 | 1.00 |
RFQ |
Datasheet |
Tray,Tray | - | Obsolete | Single Phase | Standard | 600 V | 2 A | 1.05 V @ 1 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
DBA20G-K15BRIDGE RECT 1PHASE 600V 2A |
2,729 | 0.86 |
RFQ |
Datasheet |
Bulk,Tray | - | Obsolete | Single Phase | Standard | 600 V | 2 A | 1.05 V @ 1 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
DBA250GBRIDGE RECT 1PHASE 600V 6A |
2,501 | 2.29 |
RFQ |
Datasheet |
Tray,Tray | - | Obsolete | Single Phase | Standard | 600 V | 6 A | 1.05 V @ 12.5 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
DBA40GBRIDGE RECT 1PHASE 600V 2.6A |
2,315 | 1.19 |
RFQ |
Datasheet |
Tray,Tray | - | Obsolete | Single Phase | Standard | 600 V | 2.6 A | 1.05 V @ 2 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
DBA40G-K15BRIDGE RECT 1PHASE 600V 2.6A |
3,932 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 600 V | 2.6 A | 1.05 V @ 2 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
DBA40G-K20BRIDGE RECT 1PHASE 600V 2.6A |
2,847 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 600 V | 2.6 A | 1.05 V @ 2 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
|
DBA500GBRIDGE RECT 1PHASE 600V 50A |
500 | 8.66 |
RFQ |
Datasheet |
Bulk,Tray | - | Obsolete | Single Phase | Standard | 600 V | 50 A | 1.05 V @ 25 A | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|

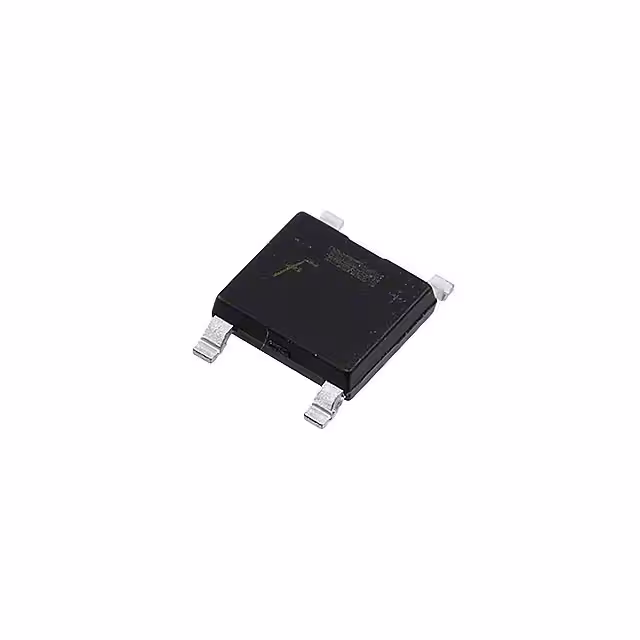

MDB10SVBRIDGE RECT 1P 1KV 1.2A MICRODIP |
2,253 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | MLVC | Obsolete | Single Phase | Standard | 1 kV | 1.2 A | 1.015 V @ 1.2 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|

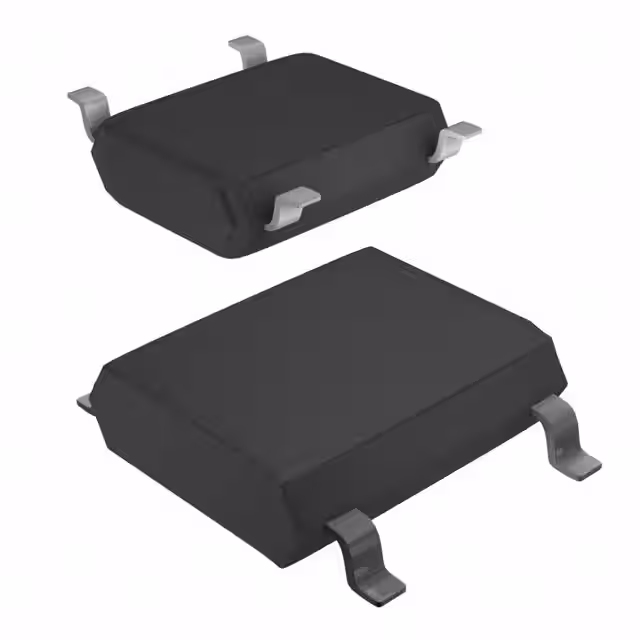

DF005S2BRIDGE RECT 1PHASE 50V 2A 4SDIP |
3,003 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Single Phase | Standard | 50 V | 2 A | 1.1 V @ 2 A | 3 µA @ 50 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
DF01S2BRIDGE RECT 1PH 100KV 2A 4SDIP |
2,893 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Single Phase | Standard | 100 V | 2 A | 1.1 V @ 2 A | 3 µA @ 100 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
DF02S2BRIDGE RECT 1PHASE 200V 2A 4SDIP |
3,456 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Single Phase | Standard | 200 V | 2 A | 1.1 V @ 1 A | 3 µA @ 200 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
DF04S2BRIDGE RECT 1PH 400KV 2A 4SDIP |
2,600 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Single Phase | Standard | 400 V | 2 A | 1.1 V @ 2 A | 3 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
DF06S2BRIDGE RECT 1PH 600KV 2A 4SDIP |
2,631 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Single Phase | Standard | 600 V | 2 A | 1.1 V @ 1 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
DF08S2BRIDGE RECT 1PHASE 800V 2A 4SDIP |
3,355 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Single Phase | Standard | 800 V | 2 A | 1.1 V @ 2 A | 3 µA @ 800 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
DF10S2BRIDGE RECT 1PHASE 1V 2A 4SDIP |
2,883 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 2 A | 1.1 V @ 2 A | 3 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
DBB08G-TM-EBRIDGE RECT 1P 600V 800MA 4SMD |
2,072 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Single Phase | Standard | 600 V | 800 mA | 1.05 V @ 400 mA | 10 µA @ 600 V | 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
DBD10G-EBRIDGE RECT 1PHASE 600V 1A |
3,417 | 0.36 |
RFQ |
Datasheet |
Cut Tape (CT),Bulk,Tape & Box (TB) | - | Obsolete | Single Phase | Standard | 600 V | 1 A | 1.05 V @ 500 mA | 10 µA @ 600 V | 150°C (TJ) | Through Hole | 4-DIP (0.300, 7.62mm) | ||||||
|

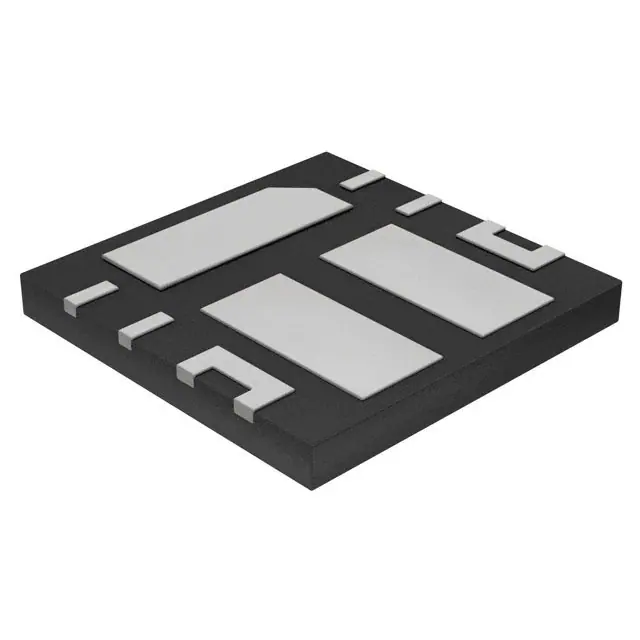

NMLU1210TWGBRIDGE RECT 1PH 20V 3.2A 8UDFN |
2,666 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | Single Phase | Schottky | 20 V | 3.2 A | 450 mV @ 2 A | 40 µA @ 20 V | -55°C ~ 125°C (TJ) | Surface Mount | 8-UDFN Exposed Pad |
