| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GBJ606BRIDGE RECT 1PHASE 600V 6A GBJ |
166 | 0.91 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 6 A | 1.1 V @ 6 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
GBU810BRIDGE RECT 1PHASE 1KV 8A GBU |
674 | 0.93 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 8 A | 1.1 V @ 8 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBU610GBRIDGE RECT 1PHASE 1KV 6A GBU |
625 | 0.93 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 6 A | 1.1 V @ 6 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBU606GBRIDGE RECT 1PHASE 600V 6A GBU |
289 | 0.93 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 6 A | 1.1 V @ 6 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBJ1010BRIDGE RECT 1PHASE 1KV 10A GBJ |
342 | 1.11 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 10 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBJ1510BRIDGE RECT 1PHASE 1KV 15A GBJ |
355 | 1.24 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.1 V @ 7.5 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|

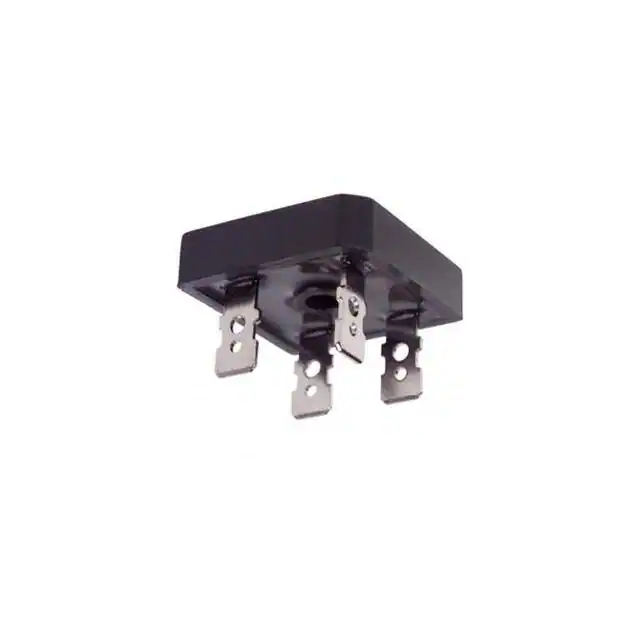

GBPC2510BRIDGE RECT 1PHASE 1KV 25A GBPC |
2,239 | 3.92 |
RFQ |
Datasheet |
Bucket | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
UG4KB60BRIDGE RECT 1PHASE 600V 4A D3K |
933 | 0.58 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 4 A | 1.1 V @ 4 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBU410BRIDGE RECT 1PHASE 1KV 4A GBU |
3,540 | 0.71 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 4 A | 1.1 V @ 4 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBJ610BRIDGE RECT 1PHASE 1KV 6A GBJ |
102 | 0.91 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 6 A | 1.1 V @ 6 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|

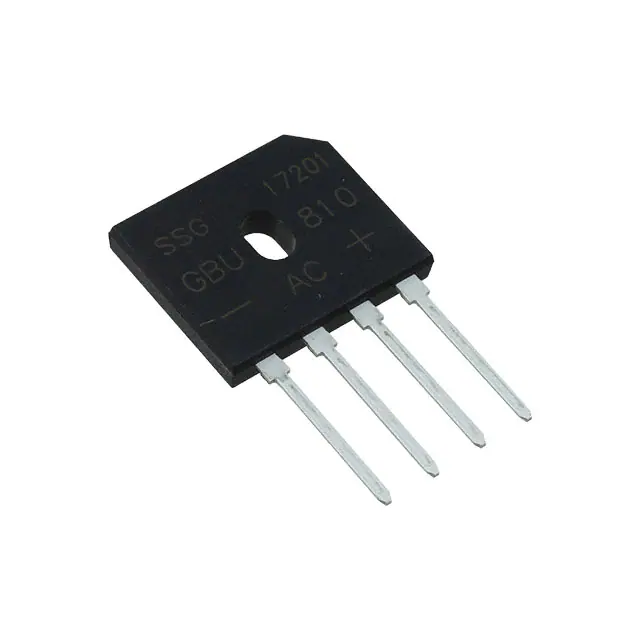

GBU810GBRIDGE RECT 1PHASE 1KV 8A GBU |
685 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 8 A | 1.1 V @ 8 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
GBU2010BRIDGE,1000V20A, PACKAGE GBU |
2,319 | 1.18 |
RFQ |
Datasheet |
Tube | - | Active | - | - | - | - | - | - | - | - | - | ||||||
|
|

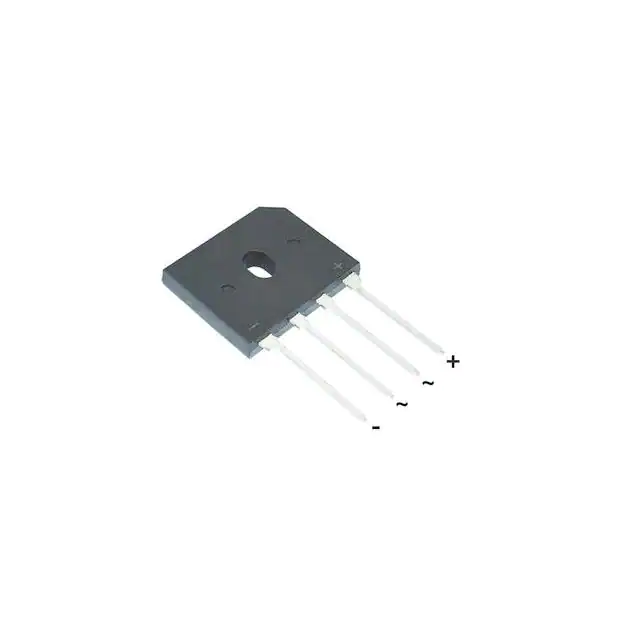

GBU2510BRIDGE,1000V25A, PACKAGE GBU |
761 | 1.30 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 25 A | 1 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBJ2010BRIDGE RECT 1PHASE 1KV 20A GBJ |
594 | 1.31 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 20 A | 1.1 V @ 20 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBJ1006BRIDGE RECT 1PHASE 600V 10A GBJ |
2,374 | 1.11 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 10 A | 1.1 V @ 10 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBU610BRIDGE RECT 1PHASE 1KV 6A GBU |
2,799 | 0.82 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 6 A | 1.1 V @ 6 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBJ1506BRIDGE RECT 1PHASE 600V 15A GBJ |
2,035 | 1.24 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 15 A | 1.1 V @ 7.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|

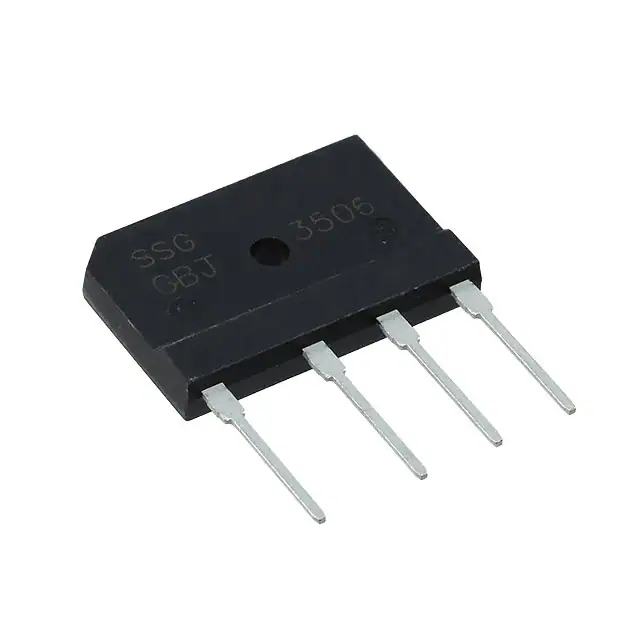

GBJ3506BRIDGE RECT 1PHASE 600V 35A GBJ |
3,822 | 1.67 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 35 A | - | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|
|
GBJ2506BRIDGE RECT 1PHASE 600V 25A GBJ |
2,961 | 1.39 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 25 A | 1.1 V @ 12.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | ||||||
|

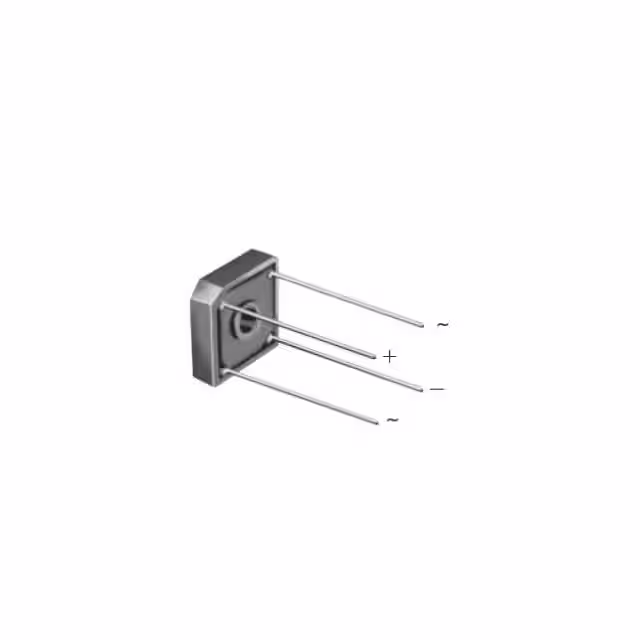

GBPC2506WBRIDGE RECT 1P 600V 25A GBPC-W |
3,265 | 3.70 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W |
