Diodes - Bridge Rectifiers(9417)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S250KBridge R 1phase, 380V, 1A |
2,164 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 380 V | 1 A | 0.95 V @ 1 A | 5 µA @ 380 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
S125FBridge R 1phase, 250V, 0.80A |
2,737 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 250 V | 800 mA | 1.3 V @ 800 mA | 5 µA @ 250 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
MYS125Bridge R 1phase, 250V, 0.50A |
3,192 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 250 V | 500 mA | 1.2 V @ 500 mA | 5 µA @ 250 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
S380FBridge R 1phase, 800V, 0.80A |
3,749 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 800 V | 800 mA | 1.3 V @ 800 mA | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
S80FBridge R 1phase, 160V, 0.80A |
3,170 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 160 V | 800 mA | 1.3 V @ 800 mA | 5 µA @ 160 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
MYS250Bridge R 1phase, 600V, 0.50A |
2,602 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 600 V | 500 mA | 1.2 V @ 500 mA | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
MYS80Bridge R 1phase, 160V, 0.50A |
3,498 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 160 V | 500 mA | 1.2 V @ 500 mA | 5 µA @ 160 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
MYS380Bridge R 1phase, 800V, 0.50A |
3,687 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 800 V | 500 mA | 1.2 V @ 500 mA | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
S250FBridge R 1phase, 600V, 0.80A |
3,942 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 600 V | 800 mA | 1.3 V @ 800 mA | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
S40FBridge R 1phase, 80V, 0.80A |
2,648 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 80 V | 800 mA | 1.3 V @ 800 mA | 5 µA @ 80 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|
|
MYS40Bridge R 1phase, 80V, 0.50A |
3,413 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 80 V | 500 mA | 1.2 V @ 500 mA | 5 µA @ 80 V | -50°C ~ 150°C (TJ) | Surface Mount | TO-269AA, 4-BESOP | ||||||
|

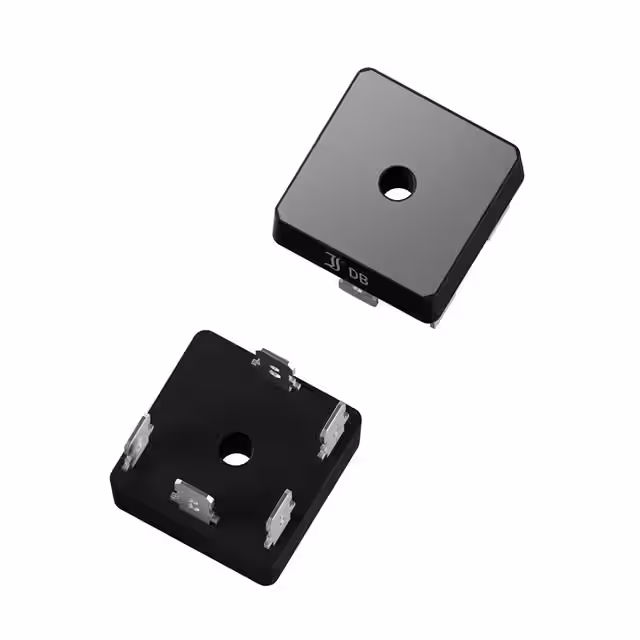

DB25-18BRIDGE, 3PHASE, DB, 1800V, 25A |
3,121 | 0.00 |
RFQ |
Bulk | - | Active | Three Phase | Standard | 1.8 kV | 25 A | 1.05 V @ 12.5 A | 10 µA @ 1800 V | - | Through Hole | ||||||||
|
D4KB8 (HF)GLASS PASSIVATED BRIDGE RECTIFIE |
3,439 | 0.73 |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | |||||||
|
GBU3510GLASS PASSIVATED BRIDGE RECTIFIE |
3,926 | 1.66 |
RFQ |
Tube | GBU | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
|
|
D4KB6GLASS PASSIVATED BRIDGE RECTIFIE |
2,083 | 0.68 |
RFQ |
Tube | D4K | Active | Single Phase | Standard | 600 V | 4 A | 1.05 V @ 4 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-ESIP | |||||||
|
GBU1508LGLASS PASSIVATED BRIDGE RECTIFIE |
2,945 | 1.46 |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | |||||||
|
GBJ1506LGLASS PASSIVATED BRIDGE RECTIFIE |
2,409 | 2.49 |
RFQ |
Tube | GBJ | Active | Single Phase | Standard | 600 V | 15 A | 0.92 V @ 7.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | |||||||
|
|
GBU806GLASS PASSIVATED BRIDGE RECTIFIE |
3,210 | 1.16 |
RFQ |
Tube | GBU | Active | Single Phase | Standard | 600 V | 8 A | 1 V @ 4 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
.jpg)
|
CBS410 (HF)GLASS PASSIVATED BRIDGE RECTIFIE |
809 | 0.98 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | |||||||
|
|
GBU1506LGLASS PASSIVATED BRIDGE RECTIFIE |
2,638 | 2.16 |
RFQ |
Tube | GBU | Active | Single Phase | Standard | 600 V | 15 A | 0.92 V @ 7.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU |
