| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

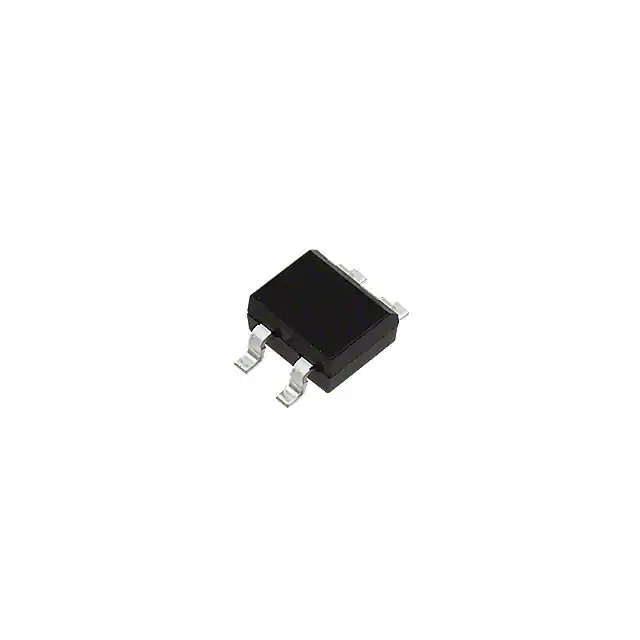

CBRHDSH2-100 TR13 PBFREEBRIDGE RECT 1P 100V 2A 4HD DIP |
2,709 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 100 V | 2 A | 840 mV @ 2 A | 4 µA @ 100 V | -50°C ~ 125°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
CBRHDSH2-40 TR13 PBFREEBRIDGE RECT 1P 40V 2A 4HD DIP |
2,028 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 2 A | 500 mV @ 2 A | 50 µA @ 40 V | -50°C ~ 125°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
CBRHDSH1-40L TR13 PBFREEBRIDGE RECT 1P 40V 1.2A 4HD DIP |
2,196 | 1.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 1.2 A | 440 mV @ 1 A | 50 µA @ 40 V | -50°C ~ 125°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
CBR1-D060S TR13 PBFREEBRIDGE RECT 1P 600V 1A 4SMDIP |
3,281 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 600 V | 1 A | 1.1 V @ 1 A | 10 µA @ 600 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
CBRDFSH1-60 TR131A,60V SURFACE MOUNT RECTIFIER-B |
2,550 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 60 V | 1 A | 700 mV @ 1 A | 200 µA @ 60 V | -55°C ~ 125°C (TJ) | Surface Mount | 4-LDFN | ||||||
|
|
CBRHD-01 TR13 PBFREEBRIDGE RECT 1P 100V 500MA HD DIP |
2,295 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 100 V | 500 mA | 1 V @ 400 mA | 5 µA @ 100 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
CBRLDSH2-40 TR13 PBFREEBRIDGE RECT 1PHASE 40V 2A 4LPDIP |
3,656 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 2 A | 500 mV @ 2 A | 100 µA @ 40 V | -55°C ~ 125°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
CBR1-D020S TR13 PBFREEBRIDGE RECT 1P 200V 1A 4SMDIP |
2,651 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 200 V | 1 A | 1.1 V @ 1 A | 10 µA @ 200 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
CBR1-D060 PBFREEBRIDGE RECT 1PHASE 600V 1A 4DIP |
2,516 | 0.55 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 1 A | 1.1 V @ 1 A | 10 µA @ 600 V | -65°C ~ 150°C (TJ) | Through Hole | 4-EDIP (0.300, 7.62mm) | ||||||
|
|
CBRHD-06 TR13 PBFREEBRIDGE RECT 1P 600V 500MA HD DIP |
2,766 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 600 V | 500 mA | 1 V @ 400 mA | 5 µA @ 600 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
CBRDFSH1-40 TR131A,40V SURFACE MOUNT RECTIFIER-B |
3,642 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 1 A | 500 mV @ 1 A | 200 µA @ 40 V | -55°C ~ 125°C (TJ) | Surface Mount | 4-LDFN | ||||||
|
|
CBRHD-02 TR13 PBFREEBRIDGE RECT 1P 200V 500MA HD DIP |
2,012 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 200 V | 500 mA | 1 V @ 400 mA | 5 µA @ 200 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
CBRDFSH2-40 TR132A,40V SURFACE MOUNT RECTIFIER-B |
3,643 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 2 A | 520 mV @ 2 A | 200 µA @ 40 V | -55°C ~ 125°C (TJ) | Surface Mount | 4-LDFN | ||||||
|
|
CBRHD-04 TR13 PBFREEBRIDGE RECT 1P 400V 500MA HD DIP |
2,730 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 400 V | 500 mA | 1 V @ 400 mA | 5 µA @ 400 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|

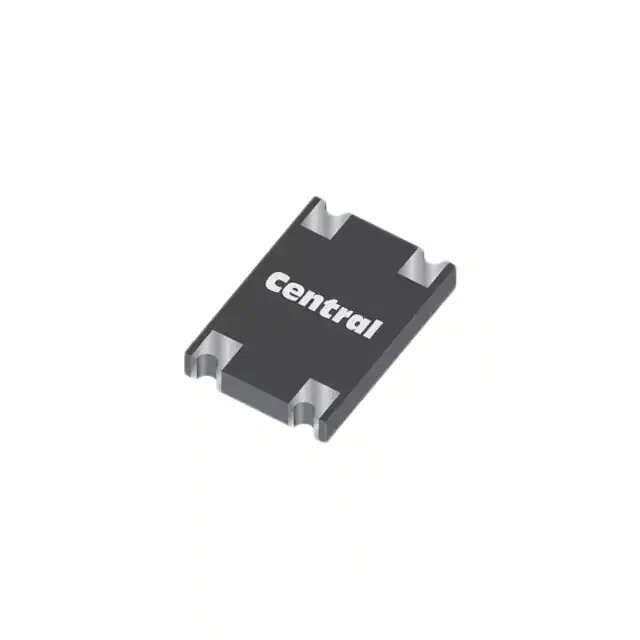

CBRDFA4-100 TR13 PBFREEE SURFACE MOUNT-RECTIFIER-B |
2,412 | 0.90 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 4 A | 1 V @ 4 A | 5 µA @ 1000 V | -55°C ~ 175°C (TJ) | Surface Mount | 4-LDFN | |||||||
|
|
CBRLDSH1-40 TR13 PBFREEBRIDGE RECT 1PHASE 40V 1A 4LPDIP |
2,065 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 1 A | 500 mV @ 1 A | 100 µA @ 40 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
CBR1-D100S TR13 PBFREEBRIDGE RECT 1PHASE 1KV 1A 4SMDIP |
456 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 1 kV | 1 A | 1.1 V @ 1 A | 10 µA @ 1000 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
CBRLDSH2-60 TR13 PBFREEBRIDGE RECT 1PHASE 60V 2A 4LPDIP |
265 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 60 V | 2 A | 700 mV @ 2 A | 500 µA @ 60 V | -55°C ~ 125°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
CBR1-D040S TR13 PBFREEBRIDGE RECT 1P 400V 1A 4SMDIP |
177 | 1.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Standard | 400 V | 1 A | 1.1 V @ 1 A | 10 µA @ 400 V | -65°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
CBR6M-L080M TIN/LEADTHROUGH-HOLE-RECTIFIER-BR |
401 | 1.36 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 6 A | 1 V @ 6 A | 5 µA @ 800 V | -65°C ~ 150°C (TJ) | Through Hole | 4-SIP, DMM |
