Diodes - Bridge Rectifiers(9417)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M3P75A-100BRIDGE RECT 3PHASE 1KV 75A 5SMD |
3,457 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 1 kV | 75 A | 1.15 V @ 75 A | 10 µA @ 1000 V | -40°C ~ 150°C (TJ) | Chassis Mount | 5-SMD Module | ||||||
|
|
M3P75A-120BRIDGE RECT 3P 1.2KV 75A 5SMD |
3,550 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 1.2 kV | 75 A | 1.15 V @ 75 A | 10 µA @ 1200 V | -40°C ~ 150°C (TJ) | Chassis Mount | 5-SMD Module | ||||||
|
|
M3P75A-140BRIDGE RECT 3P 1.4KV 75A 5SMD |
3,377 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 1.4 kV | 75 A | 1.15 V @ 75 A | 10 µA @ 1400 V | -40°C ~ 150°C (TJ) | Chassis Mount | 5-SMD Module | ||||||
|
|
M3P75A-160BRIDGE RECT 3P 1.6KV 75A 5SMD |
2,236 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 1.6 kV | 75 A | 1.15 V @ 75 A | 10 µA @ 1600 V | -40°C ~ 150°C (TJ) | Chassis Mount | 5-SMD Module | ||||||
|
|
M3P75A-60BRIDGE RECT 3PHASE 600V 75A 5SMD |
3,047 | 0.00 |
RFQ |
Bulk | - | Obsolete | Three Phase | Standard | 600 V | 75 A | - | 10 µA @ 600 V | - | Chassis Mount | 5-SMD Module | |||||||
|
|
M3P75A-80BRIDGE RECT 3PHASE 800V 75A 5SMD |
2,529 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 800 V | 75 A | - | 10 µA @ 800 V | -40°C ~ 150°C (TJ) | Chassis Mount | 5-SMD Module | ||||||
|
W005MBRIDGE RECT 1PHASE 50V 1.5A WOM |
3,502 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 50 V | 1.5 A | 1 V @ 1 A | 10 µA @ 50 V | -65°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|
W01MBRIDGE RECT 1PHASE 100V 1.5A WOM |
3,926 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 100 V | 1.5 A | 1 V @ 1 A | 10 µA @ 100 V | -65°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|
|
W02MBRIDGE RECT 1PHASE 200V 1.5A WOM |
3,121 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 200 V | 1.5 A | 1 V @ 1 A | 10 µA @ 200 V | -65°C ~ 125°C (TJ) | Through Hole | 4-Circular, WOM | ||||||
|
|
MSDM100-08BRIDGE RECT 3P 800V 100A M2-1 |
3,829 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 800 V | 100 A | 1.9 V @ 300 A | 500 µA @ 800 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ||||||
|
MSDM100-12BRIDGE RECT 3P 1.2KV 100A M2-1 |
3,779 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 1.2 kV | 100 A | 1.9 V @ 300 A | 500 µA @ 1200 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ||||||
|
|
MSDM100-18BRIDGE RECT 3P 1.8KV 100A M2-1 |
3,411 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 1.8 kV | 100 A | 1.9 V @ 300 A | 500 µA @ 1800 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ||||||
|
|
MSDM150-08BRIDGE RECT 3P 800V 150A M2-1 |
3,719 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 800 V | 150 A | 1.4 V @ 150 A | 500 µA @ 800 V | -40°C ~ 150°C (TJ) | Chassis Mount | Module | ||||||
|
|
MSDM150-12BRIDGE RECT 3P 1.2KV 150A M3-1 |
2,361 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Three Phase | Standard | 1.2 kV | 150 A | 1.4 V @ 150 A | 500 µA @ 1200 V | -40°C ~ 150°C (TJ) | Chassis Mount | M3-1 | ||||||
|
BU1010A5S-M3/45BRIDGE RECT 1P 1KV 10A BU-5S |
2,647 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
BU12065S-M3/45BRIDGE RECT 1P 600V 12A BU-5S |
2,153 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 600 V | 12 A | 1.05 V @ 6 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|

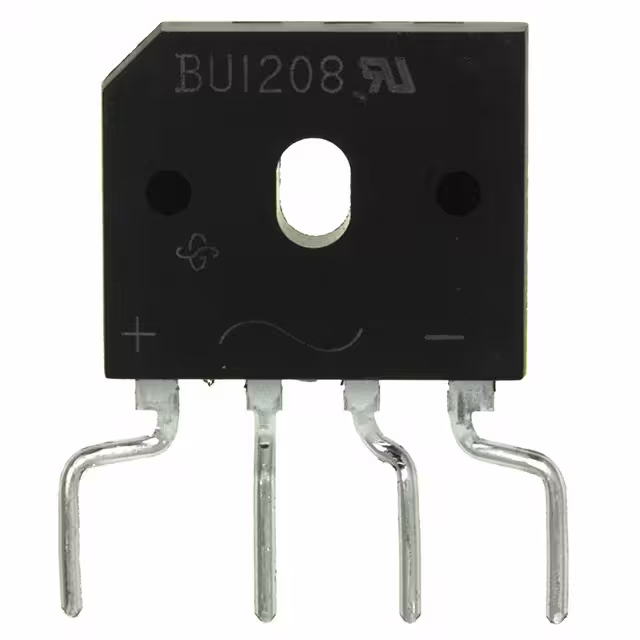

BU12085S-M3/45BRIDGE RECT 1P 800V 12A BU-5S |
2,824 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 800 V | 12 A | 1.05 V @ 6 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|

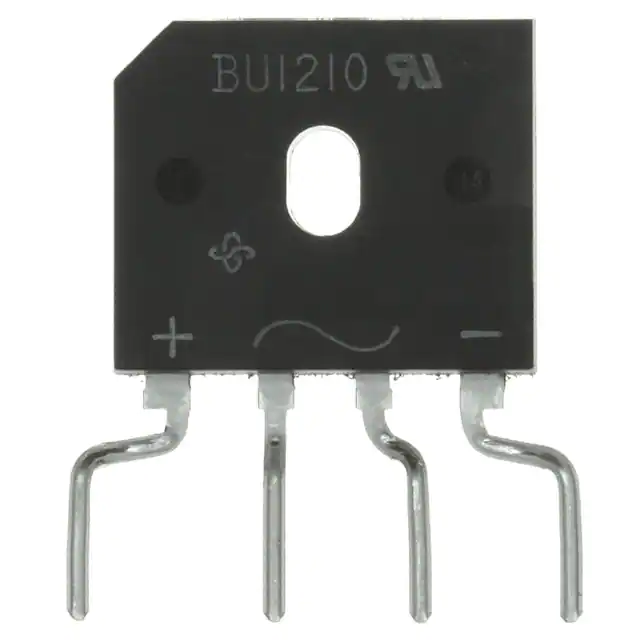

BU12105S-M3/45BRIDGE RECT 1P 1KV 12A BU-5S |
3,661 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 1 kV | 12 A | 1.05 V @ 6 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
|
BU15065S-M3/45BRIDGE RECT 1P 600V 15A BU-5S |
3,833 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 600 V | 15 A | 1.05 V @ 6 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
BU25065S-M3/45BRIDGE RECT 1P 600V 3.5A BU-5S |
2,184 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 600 V | 3.5 A | 1.05 V @ 12.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S |
