| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

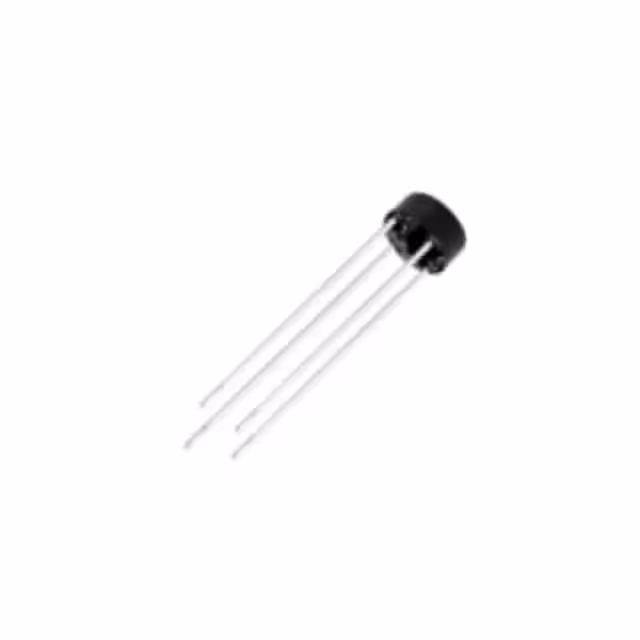

RB157BRIDGE REC GLASS 1000V 1.5A RB15 |
3,883 | 0.36 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 1.5 A | 1 V @ 1 A | 1 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Circular, RB-15 | ||||||
|
|
RB155BRIDGE RECT GLASS 600V 1.5A RB15 |
3,076 | 0.36 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 1.5 A | 1 V @ 1 A | 1 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Circular, RB-15 | ||||||
|
|
RB151BRIDGE RECT GLASS 50V 1.5A RB15 |
3,729 | 0.36 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 50 V | 1.5 A | 1 V @ 1 A | 1 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Circular, RB-15 | ||||||
|
2RS105MBRIDGE RECT 600V 2A RS-1M |
3,416 | 0.36 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 2 A | 1.1 V @ 2 A | 2 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-1M | ||||||
|
DB156BRIDGE RECT 800V 1.5A DB-1 |
3,894 | 0.38 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 1.5 A | 1 V @ 1.5 A | 1 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-EDIP (0.321, 8.15mm) | ||||||
|

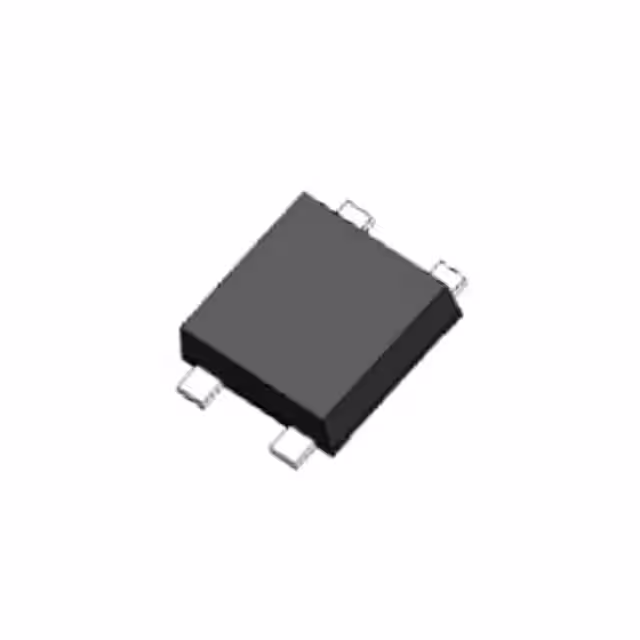

UMB6FBRIDGE RCT GLASS 600V .5A SOF2-4 |
3,223 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 600 V | 500 mA | 1.1 V @ 400 mA | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Flat Lead | ||||||
|

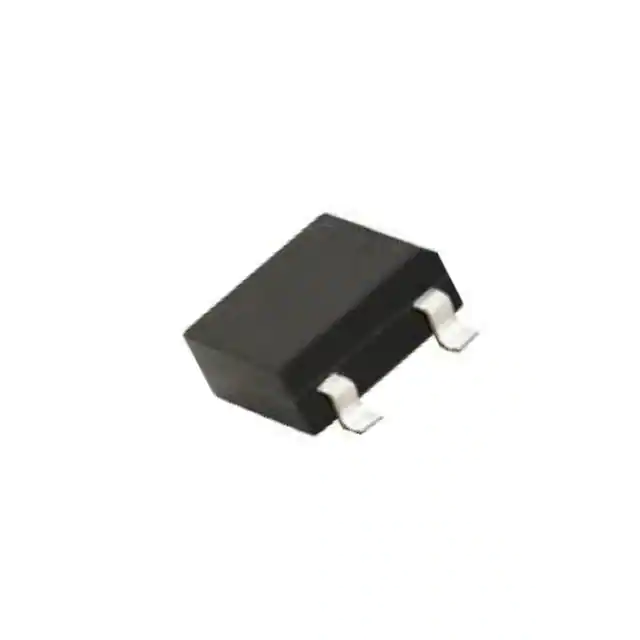

LDB107SBRIDGE RECT GLASS 1000V 1A DB-LS |
2,434 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 1 kV | 1 A | 1 V @ 1 A | 1 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
DB157BRIDGE RECT 1000V 1.5A DB-1 |
2,498 | 0.38 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 1.5 A | 1 V @ 1.5 A | 1 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-EDIP (0.321, 8.15mm) | ||||||
|

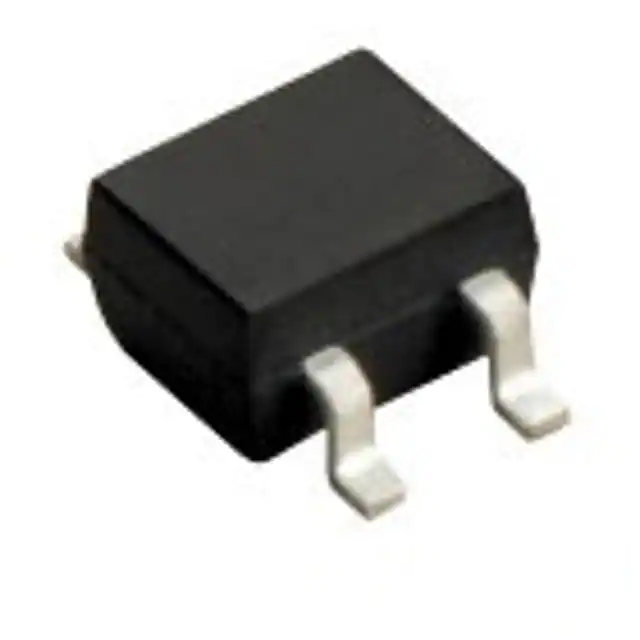

2KMD20SBRIDGE RECT SKY 20V 2A MD-S |
3,190 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Schottky | 20 V | 2 A | 550 mV @ 2 A | 200 µA @ 20 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
MD8FBRIDGE RECT GLASS 800V 1A MD-F |
2,454 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 800 V | 1 A | 1 V @ 500 mA | 1 µA @ 800 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
MB10SBRIDGE RECT GLASS 1000V .5A MDS |
2,701 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 1 kV | 500 mA | 1.05 V @ 500 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
FMD6SBRIDGE RECT GLASS 800V 1A MDS |
2,143 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 800 V | 500 mA | 1.3 V @ 400 mA | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
EMD3SBRIDGE RECT GLASS 150V 1A MDS |
2,614 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 150 V | 1 A | 1.05 V @ 500 mA | 10 µA @ 150 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
HSLDB108SBRIDGE RECT 1000V 2A 75NS SLDBS |
2,640 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 1 kV | 1 A | 1.7 V @ 1 A | 500 nA @ 1000 V | 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
FMD7SBRIDGE RECT GLASS 1000V 1A MDS |
3,356 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 1 kV | 500 mA | 1.3 V @ 400 mA | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
FMD1SBRIDGE RECT GLASS 50V 1A MDS |
2,863 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 50 V | 500 mA | 1.3 V @ 400 mA | 10 µA @ 50 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
FMD4SBRIDGE RECT GLASS 400V 1A MDS |
2,244 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 400 V | 500 mA | 1.3 V @ 400 mA | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
MD10FBRIDGE RECT GLASS 1000V 1A MD-F |
2,633 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 1 kV | 1 A | 1 V @ 500 mA | 1 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
MD4FBRIDGE RECT GLASS 400V 1A MD-F |
2,430 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 400 V | 1 A | 1 V @ 500 mA | 1 µA @ 400 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
MB2SBRIDGE RECT GLASS 100V .5A MDS |
2,254 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | Single Phase | Standard | 100 V | 500 mA | 1.05 V @ 500 mA | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing |
