| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GBI20J1BRect, 600V, 20A |
3,323 | 3.30 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 3.6 A | 1.1 V @ 10 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
|
GBI20M1BRect, 1000V, 20A |
2,057 | 3.37 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 3.6 A | 1.1 V @ 10 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
|
GBI25D1BRect, 200V, 25A |
2,315 | 3.41 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 200 V | 4.2 A | 1.1 V @ 12.5 A | 5 µA @ 200 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
|
GBI25G1BRect, 400V, 25A |
3,406 | 3.45 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 400 V | 4.2 A | 1.1 V @ 12.5 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
GBI25J1BRect, 600V, 25A |
2,085 | 3.49 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 4.2 A | 1.1 V @ 12.5 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
GBI25M1BRect, 1000V, 25A |
2,204 | 3.57 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 4.2 A | 1.1 V @ 12.5 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBI | ||||||
|
GBU12M1BRect, 1000V, 12A |
2,767 | 3.64 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 1 kV | 8.4 A | 1 V @ 12 A | 5 µA @ 1000 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU12K1BRect, 800V, 12A |
3,222 | 3.64 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 8.4 A | 1 V @ 12 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU12B1BRect, 100V, 12A |
3,809 | 3.64 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 100 V | 8.4 A | 1 V @ 12 A | 5 µA @ 100 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU12G1BRect, 400V, 12A |
3,381 | 3.64 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 400 V | 8.4 A | 1 V @ 12 A | 5 µA @ 400 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU12J1BRect, 600V, 12A |
3,475 | 3.64 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 600 V | 8.4 A | 1 V @ 12 A | 5 µA @ 600 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
B40C3700A1BRect, 80V, 3.7A |
3,026 | 3.93 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 80 V | 2.7 A | 1 V @ 3 A | 5 µA @ 80 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
B80C3700A1BRect, 160V, 3.7A |
3,893 | 3.95 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 160 V | 2.7 A | 1 V @ 3 A | 5 µA @ 160 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
|
B40C5000A1BRect, 80V, 5A |
2,388 | 4.01 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 80 V | 4 A | 1 V @ 5 A | 5 µA @ 80 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
|
B40C7000A1BRect, 80V, 7A |
2,262 | 4.12 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 80 V | 4.8 A | 1 V @ 5 A | 5 µA @ 80 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|

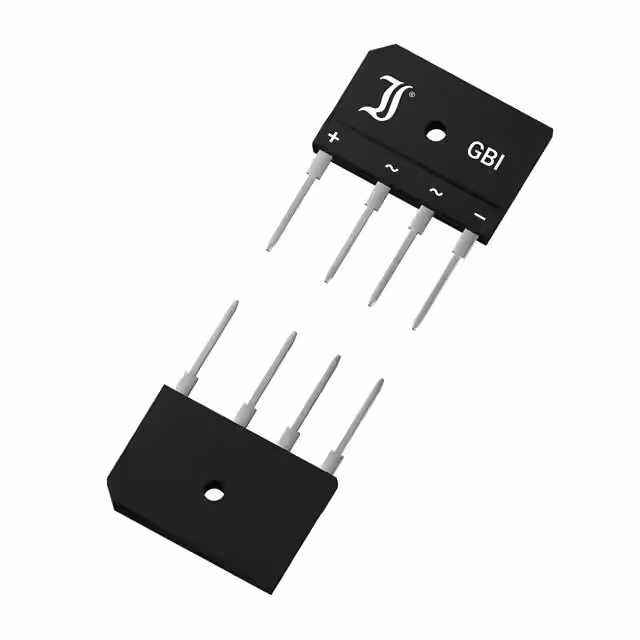

B80C5000A1BRect, 160V, 5A |
2,145 | 4.16 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 160 V | 4 A | 1 V @ 5 A | 5 µA @ 160 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
|
B80C7000A1BRect, 160V, 7A |
3,940 | 4.23 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 160 V | 4.8 A | 1 V @ 5 A | 5 µA @ 160 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
|
B380C3700A1BRect, 800V, 3.7A |
3,711 | 4.30 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 2.7 A | 1 V @ 3 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
|
B125C7000A1BRect, 250V, 7A |
3,266 | 4.37 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 250 V | 4.8 A | 1 V @ 5 A | 5 µA @ 250 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP | ||||||
|
B380C7000A1BRect, 800V, 7A |
2,508 | 4.65 |
RFQ |
Datasheet |
Box | - | Active | Single Phase | Standard | 800 V | 4.8 A | 1 V @ 5 A | 5 µA @ 800 V | -50°C ~ 150°C (TJ) | Through Hole | 4-SIP |
