| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

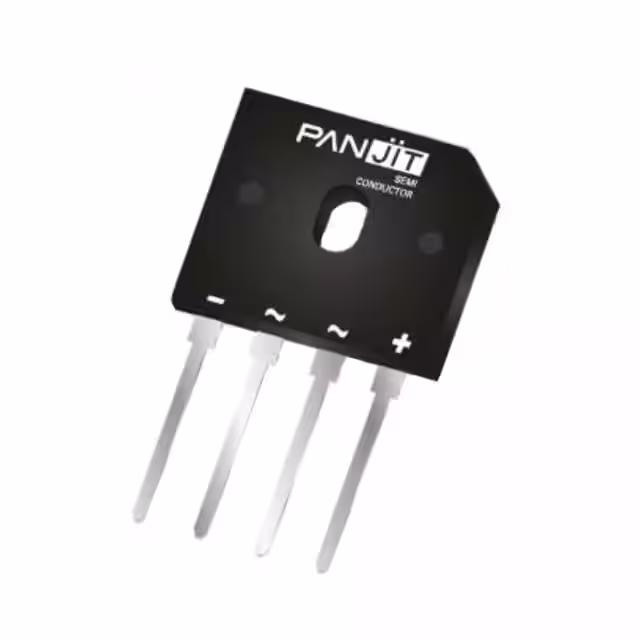

GBU410_T0_00601GBU PACKAGE, 4A/1000V STANDARD B |
3,327 | 0.82 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 4 A | 1.05 V @ 2 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
KBJ410_T0_00601KBJ PACKAGE, 4A/1000V STANDARD B |
3,359 | 0.88 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1000 V | 4 A | 1.05 V @ 2 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBJ-2 | ||||||
|

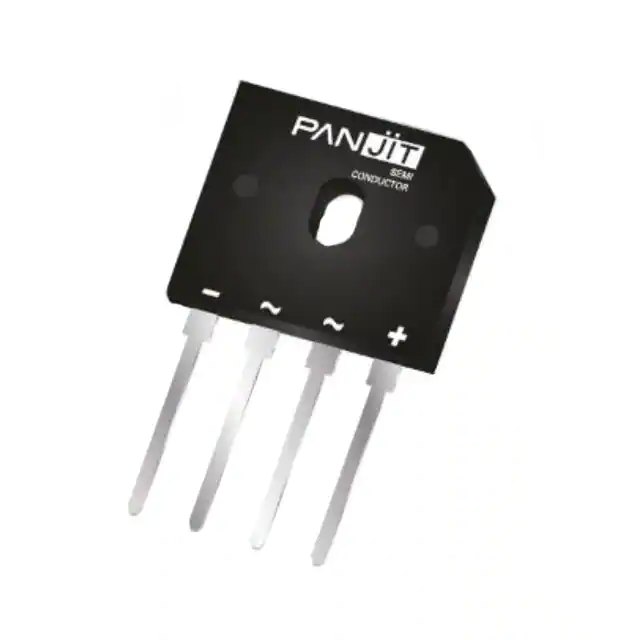

GBU1510_T0_00601GBU PACKAGE, 15A/1000V STANDARD |
2,789 | 0.88 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.05 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
KBJ2010_T0_00601KBJ PACKAGE, 20A/1000V STANDARD |
2,978 | 0.89 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 20 A | 1.1 V @ 20 A | 5 µA @ 1 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBJ | ||||||
|
|
KBJ610_T0_00601KBJ PACKAGE, 6A/1000V STANDARD B |
3,534 | 0.92 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1000 V | 6 A | 1.05 V @ 3 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBJ-2 | ||||||
|
|
KBJ1010_T0_00601KBJ PACKAGE, 10A/1000V STANDARD |
3,242 | 0.92 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 10 A | 1.1 V @ 10 A | 5 µA @ 1 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBJ | ||||||
|
GBU1010_T0_00601GBU PACKAGE, 10A/1000V STANDARD |
2,951 | 0.93 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 10 A | 1.05 V @ 5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|

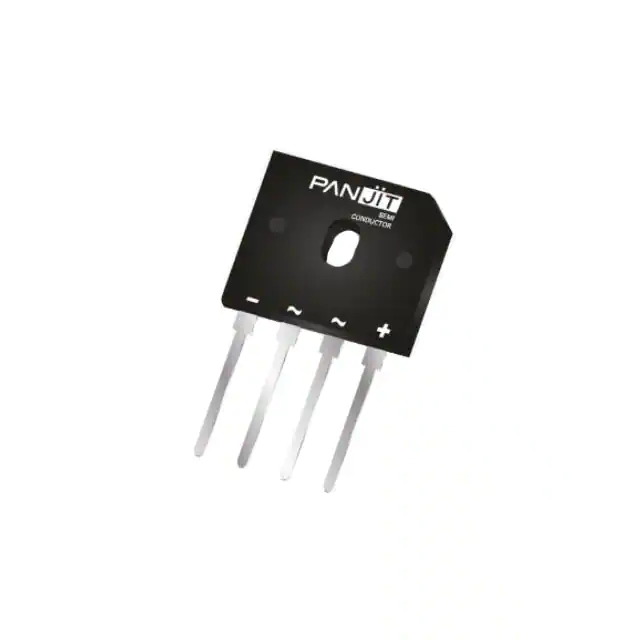

GBU810_T0_00601GBU PACKAGE, 8A/1000V STANDARD B |
3,089 | 0.93 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 8 A | 1.05 V @ 4 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
KBJ1510_T0_00601KBJ PACKAGE, 15A/1000V STANDARD |
2,663 | 0.95 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.1 V @ 15 A | 5 µA @ 1 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBJ | ||||||
|

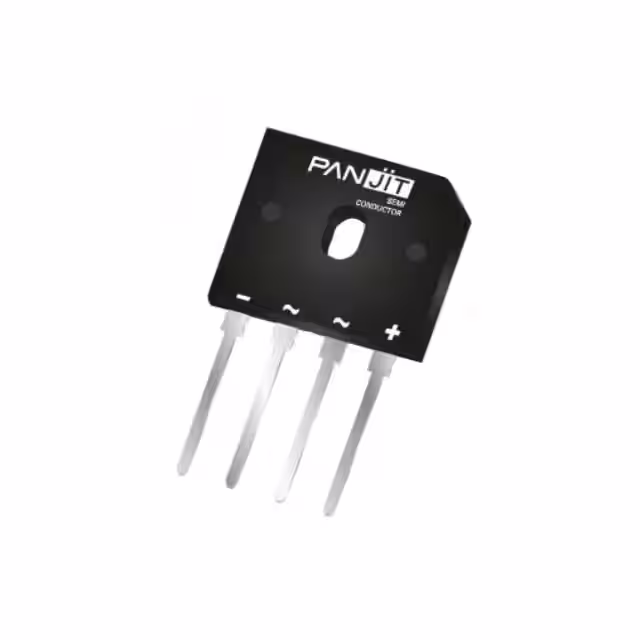

GBU610_T0_00601GBU PACKAGE, 6A/1000V STANDARD B |
3,422 | 0.84 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 6 A | 1.05 V @ 3 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
KBJ2510_T0_00601KBJ PACKAGE, 25A/1000V STANDARD |
3,650 | 1.13 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 25 A | 5 µA @ 1 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBJ | ||||||
|
GBJ1010_T0_00601GBJ PACKAGE, 10A/1000V STANDARD |
3,986 | 1.13 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 10 A | 1.05 V @ 5 A | 5 µA @ 1000 V | -55°C ~ 150°C | Through Hole | 4-SIP, GBJ | ||||||
|
|
GBJ1510_T0_00601GBJ PACKAGE, 15A/1000V STANDARD |
2,980 | 1.17 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.05 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|

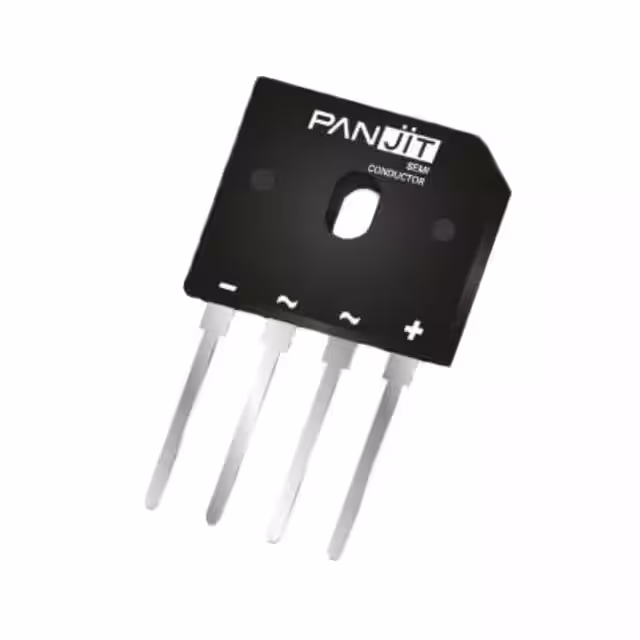

GBU2510_T0_00601GBU PACKAGE, 25A/1000V STANDARD |
2,941 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.05 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBJ2010_T0_00601GBJ PACKAGE, 20A/1000V STANDARD |
3,764 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 20 A | 1.05 V @ 10 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBJ | ||||||
|
|
KBJ3510_T0_00601KBJ PACKAGE, 35A/1000V STANDARD |
2,689 | 1.27 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 35 A | 5 µA @ 1 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBJ | ||||||
|
TS240S_R1_00001MICRO SURFACE MOUNT SCHOTTKY BRI |
3,197 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 2 A | 0.5 V @ 2 A | 50 µA @ 40 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
GBU3510_T0_00601GBU PACKAGE, 35A/1000V STANDARD |
2,676 | 1.48 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 35 A | 1.1 V @ 17.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
TS140S_R1_00001TDI, SKY |
590 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Single Phase | Schottky | 40 V | 1 A | 500 mV @ 1 A | 100 µA @ 40 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing | ||||||
|
|
B10S_R2_00001MINI SURFACE MOUNT GLASS PASSIVA |
2,927 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | B1S | Active | Single Phase | Standard | 1 kV | 800 mA | 1 V @ 500 mA | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Surface Mount | 4-SMD, Gull Wing |
