| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM5403ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,261 | 9.27 |
RFQ |
Tape & Reel (TR) | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM4401WARWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,141 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3.135V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM4402WARWZDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,920 | 9.26 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3.135V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM5403CRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,178 | 1.00 |
RFQ |
Tape & Reel (TR),Bulk | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM5400CRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,129 | 10.29 |
RFQ |
Datasheet |
Tape & Reel (TR) | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ADUM6211CRSZ-RL7DGTL ISO 3750VRMS 2CH GP 20SSOP |
3,107 | 8.91 |
RFQ |
Datasheet |
Tape & Reel (TR) | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 3750Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6212CRSZ-RL7DGTL ISO 3750VRMS 2CH GP 20SSOP |
2,995 | 8.91 |
RFQ |
Datasheet |
Tape & Reel (TR) | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 3750Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM5200CRWZ-RLDGTL ISO 2500VRMS 2CH GP 16SOIC |
3,653 | 8.93 |
RFQ |
Datasheet |
Tape & Reel (TR) | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM5202CRWZ-RLDGTL ISO 2500VRMS 2CH GP 16SOIC |
3,280 | 8.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM3470WCRSZ-RL7DGTL ISO 2500VRMS 4CH GP 20SSOP |
2,519 | 8.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 8ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM3471WCRSZ-RL7DGTL ISO 2500VRMS 4CH GP 20SSOP |
2,490 | 8.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 8ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM3472WCRSZ-RL7DGTL ISO 2500VRMS 4CH GP 20SSOP |
2,890 | 8.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 8ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM3473WCRSZ-RL7DGTL ISO 2500VRMS 4CH GP 20SSOP |
2,981 | 8.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 1/3 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 8ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM3474WCRSZ-RL7DGTL ISO 2500VRMS 4CH GP 20SSOP |
3,770 | 8.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 0/4 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 8ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6210CRSZ-RL7DGTL ISO 3750VRMS 2CH GP 20SSOP |
2,237 | 8.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 3750Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|

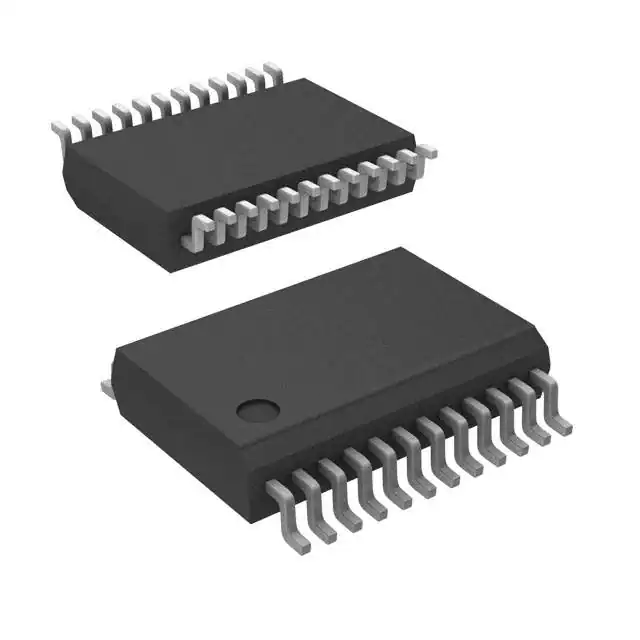

ADUM6412BRSZ-RL7DGTL ISO 3750VRMS 4CH GP 24SSOP |
2,240 | 9.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 3750Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6411BRSZ-RL7DGTL ISO 3750VRMS 4CH GP 24SSOP |
2,489 | 9.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 3750Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6410BRSZ-RL7DGTL ISO 3750VRMS 4CH GP 24SSOP |
3,727 | 9.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 3750Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM5400ARWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
183 | 8.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM3470WARSZDGTL ISO 2500VRMS 4CH GP 20SSOP |
2,721 | 6.14 |
RFQ |
Datasheet |
Bulk,Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
