| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM2211SRIZDGTL ISO 5000VRMS 2CH GP 16SOIC |
2,596 | 5.48 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM2200WARWZDGTL ISO 5000VRMS 2CH GP 16SOIC |
2,841 | 7.01 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM1440ARSZDGTL ISO 3750VRMS 4CH GP 20SSOP |
3,021 | 8.50 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 3750Vrms | 25kV/µs | 2Mbps | 180ns, 180ns | 8ns | 2ns, 2ns | 2.25V ~ 3.6V | -40°C ~ 125°C | Surface Mount |
|
ADUM1285WCRZDGTL ISO 3000VRMS 2CH GP 8SOIC |
3,197 | 10.09 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 3000Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADN4652BRSZDGT ISO 3750VRMS 2CH LVDS 20SSOP |
161 | 14.16 |
RFQ |
Datasheet |
Bulk,Tray | iCoupler® | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 3750Vrms | 25kV/µs | 600Mbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | -40°C ~ 125°C | Surface Mount |
|
ADUM4474CRIZDGTL ISO 5000VRMS 4CH GP 20SOIC |
2,151 | 15.38 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADN4655BRSZDGT ISO 3750VRMS 2CH LVDS 20SSOP |
3,697 | 15.98 |
RFQ |
Tube | iCoupler® | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 3750Vrms | 25kV/µs | 1.1Gbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | -40°C ~ 125°C | Surface Mount | |
|

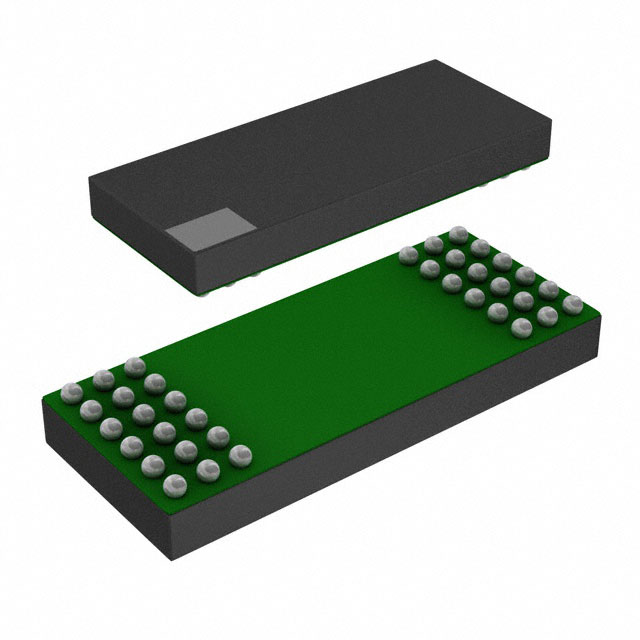

LTM2895CY#PBFDGTL ISOL 6000VRMS 9CH SPI 36BGA |
3,770 | 21.33 |
RFQ |
Datasheet |
Tray | - | Active | Magnetic Coupling | SPI | No | 9 | 8/4 | Bidirectional, Unidirectional | 6000Vrms | 50kV/µs | 100Mbps | 150ns, 150ns | - | 10ns, 10ns | 3V ~ 5.5V | 0°C ~ 70°C | Surface Mount |
|
|
LTM2893IY#PBFDGTL ISOL 6000VRMS 9CH SPI 36BGA |
3,510 | 21.56 |
RFQ |
Datasheet |
Tray | - | Active | Magnetic Coupling | SPI | No | 9 | 6/6 | Bidirectional, Unidirectional | 6000Vrms | 50kV/µs | 100Mbps | 150ns, 150ns | - | 10ns, 10ns | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
LTM2893HY#PBFDGTL ISOL 6000VRMS 9CH SPI 36BGA |
100 | 25.86 |
RFQ |
Datasheet |
Tray | - | Active | Magnetic Coupling | SPI | No | 9 | 6/6 | Bidirectional, Unidirectional | 6000Vrms | 50kV/µs | 100Mbps | 150ns, 150ns | - | 10ns, 10ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
LTM2886CY-3I#PBFDGTL ISOL 2500VRMS 6CH I2C 32BGA |
3,697 | 29.50 |
RFQ |
Datasheet |
Tray | - | Active | Capacitive Coupling | I²C | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 400kHz | 250ns, 250ns | - | 250ns, 250ns (Max) | 3V ~ 3.6V | 0°C ~ 70°C | Surface Mount |
|
|
ADUM130D0BRWZ-RLDGTL ISO 3750VRMS 3CH GP 16SOIC |
3,987 | 3.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 3750Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM1285CRZ-RL7DGTL ISO 3000VRMS 2CH GP 8SOIC |
2,516 | 4.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 3000Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM1441ARSZ-RL7DGTL ISO 3750VRMS 4CH GP 20SSOP |
2,462 | 8.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 3750Vrms | 25kV/µs | 2Mbps | 180ns, 180ns | 8ns | 2ns, 2ns | 2.25V ~ 3.6V | -40°C ~ 125°C | Surface Mount |
|
|
ADN4652BRSZ-RL7DGT ISO 3750VRMS 2CH LVDS 20SSOP |
3,539 | 14.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler® | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 3750Vrms | 25kV/µs | 600Mbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | -40°C ~ 125°C | Surface Mount |
|
|
ADN4652BRWZ-RL7DGT ISO 5000VRMS 2CH LVDS 20SOIC |
2,970 | 15.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler® | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 600Mbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | -40°C ~ 125°C | Surface Mount |
|
|
LTM2895IY#PBFDGTL ISOL 6000VRMS 9CH SPI 36BGA |
100 | 21.56 |
RFQ |
Datasheet |
Tray | - | Active | Magnetic Coupling | SPI | No | 9 | 8/4 | Bidirectional, Unidirectional | 6000Vrms | 50kV/µs | 100Mbps | 150ns, 150ns | - | 10ns, 10ns | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
LTM2810IY-I#PBFDGTL ISOL 7500VRMS 6CH I2C 36BGA |
2,175 | 22.77 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | I²C | Yes | 6 | 3/3 | Unidirectional | 7500Vrms | 50kV/µs | 400kHz | 500ns, 500ns | 50ns | 350ns, 250ns (Max) | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
LTM2887IY-5S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
2,267 | 30.97 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
LTM2881HY-3DGTL ISO 2.5KV RS422/RS485 32BGA |
2,432 | 0.00 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 3V ~ 3.6V | -40°C ~ 105°C | Surface Mount |
