| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADM2865EBRNZ5.7KV ISOPWR & ISORS485 25MBPS H |
2,580 | 15.23 |
RFQ |
Tube | ADM2865E | Active | Magnetic Coupling | RS422, RS485 | Yes | 4 | 1/3 | Unidirectional | 5700Vrms | 250kV/µs | 25Mbps | 25ns, 25ns | - | 4.5ns, 4.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
ADUM5400CRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,626 | 15.27 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6202ARWZDGTL ISO 5000VRMS 2CH GP 16SOIC |
2,690 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6200ARWZDGTL ISO 5000VRMS 2CH GP 16SOIC |
3,709 | 15.62 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ADN4652BRWZDGT ISO 5000VRMS 2CH LVDS 20SOIC |
2,477 | 15.72 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 600Mbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | -40°C ~ 125°C | Surface Mount |
|

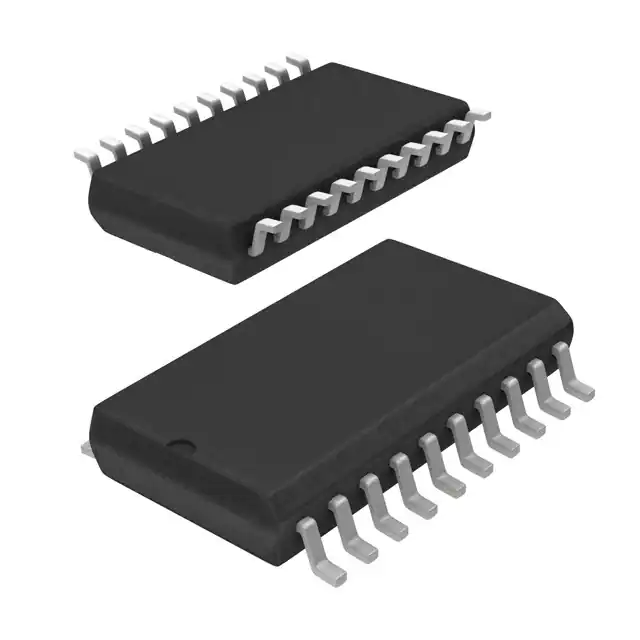

ADUM4165BRIZ5KV 480MBPS USB DIG ISOLATOR HOS |
3,259 | 15.85 |
RFQ |
Datasheet |
Tube | - | Active | Magnetic Coupling | RS232, USB | Yes | 1 | 1/0 | Unidirectional | 5700Vrms | 40kV/µs | 480Mbps | 650ns, 600ns | - | 300ns, 350ns (Max) | 3V ~ 3.6V, 3V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
ADUM4166BRIZ5KV 480MBPS USB DIG ISOLATOR PER |
2,862 | 15.85 |
RFQ |
Datasheet |
Tube | - | Active | Magnetic Coupling | RS232, USB | Yes | 1 | 1/0 | Unidirectional | 5700Vrms | 40kV/µs | 480Mbps | 650ns, 600ns | - | 300ns, 350ns (Max) | 3V ~ 3.6V, 3V ~ 5.5V | -55°C ~ 125°C | Surface Mount |
|
ADN4656BRSZDGT ISO 3750VRMS 2CH LVDS 20SSOP |
2,535 | 15.98 |
RFQ |
Tube | iCoupler® | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 3750Vrms | 25kV/µs | 1.1Gbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | -40°C ~ 125°C | Surface Mount | |
|
|
ADUM6420ABRNZ5DGTL ISO 5KV 4CH GEN PRP 28SOIC |
2,087 | 15.96 |
RFQ |
Datasheet |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM6420ABRNZ3DGTL ISO 5KV 4CH GEN PRP 28SOIC |
2,829 | 15.96 |
RFQ |
Datasheet |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM6201CRWZDGTL ISO 5000VRMS 2CH GP 16SOIC |
2,151 | 16.05 |
RFQ |
Datasheet |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 25Mbps | 60ns, 60ns | 6ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ADUM6421AWBRNZ5DGTL ISO 5KV 4CH GEN PRP 28SOIC |
3,885 | 16.21 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100, IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 75kV/µs | 100Mbps | 17ns, 17ns | 5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM6400ARIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,853 | 16.54 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6401ARIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
2,940 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM6404ARIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
3,045 | 16.54 |
RFQ |
Datasheet |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
LTM2892IY-I#PBFDGTL ISOL 3500VRMS 6CH I2C 24BGA |
2,153 | 17.16 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | I²C | No | 6 | 3/3 | Unidirectional | 3500Vrms | 50kV/µs | 400kHz | 250ns, 250ns | - | 250ns, 250ns (Max) | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
ADN4656BRWZDGT ISO 5000VRMS 2CH LVDS 20SOIC |
2,404 | 17.81 |
RFQ |
Tube | iCoupler® | Active | Magnetic Coupling | LVDS | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 1.1Gbps | 4.5ns, 4.5ns | - | 0.35ns, 0.35ns (Max) | 2.375V ~ 2.625V | -40°C ~ 125°C | Surface Mount | |
|

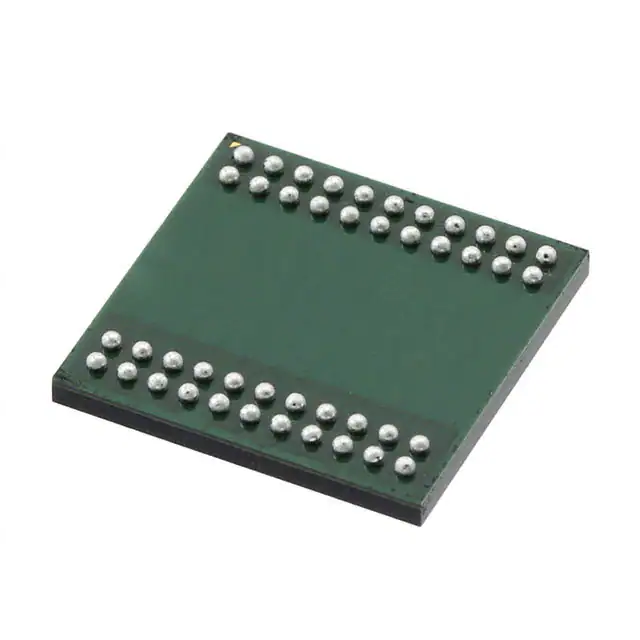

ADM3252EABCZDGTL ISO 2500VRMS RS232 44CSPBGA |
2,883 | 24.22 |
RFQ |
Datasheet |
Tray | IsoPower®, iCoupler® | Active | Magnetic Coupling | RS232 | Yes | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 460Kbps | - | - | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
LTM2895HY#PBFDGTL ISOL 6000VRMS 9CH SPI 36BGA |
917 | 25.86 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | Magnetic Coupling | SPI | No | 9 | 8/4 | Bidirectional, Unidirectional | 6000Vrms | 50kV/µs | 100Mbps | 150ns, 150ns | - | 10ns, 10ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
LTM2887CY-5I#PBFDGTL ISOL 2500VRMS 6CH I2C 32BGA |
3,205 | 28.15 |
RFQ |
Datasheet |
Tray | µModule® | Active | Magnetic Coupling | I²C | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 400kHz | 250ns, 250ns | - | 250ns, 250ns (Max) | 4.5V ~ 5.5V | 0°C ~ 70°C | Surface Mount |
