| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | Type | IsolatedPower | NumberofChannels | Inputs-Side1/Side2 | ChannelType | Voltage-Isolation | CommonModeTransientImmunity(Min) | DataRate | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM3150BRSZ-RL7DGT ISOL 3750VRMS 6CH SPI 20SSOP |
3,617 | 10.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler®, SPIsolator™ | Active | Magnetic Coupling | SPI | No | 6 | 4/2 | Unidirectional | 3750Vrms | 25kV/µs | 40Mbps | 14ns, 14ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM260N1BRIZDGTL ISO 5000VRMS 6CH GP 16SOIC |
2,029 | 6.63 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 6 | 6/0 | Unidirectional | 5000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM262N0BRIZDGTL ISO 5000VRMS 6CH GP 16SOIC |
3,294 | 6.63 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 6 | 4/2 | Unidirectional | 5000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADUM263N0BRIZDGTL ISO 5000VRMS 6CH GP 16SOIC |
2,383 | 6.63 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 6 | 3/3 | Unidirectional | 5000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
ADUM1410ARWZDGTL ISO 3750VRMS 4CH GP 16SOIC |
2,032 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 3750Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
ADUM3201WBRZDGTL ISO 2500VRMS 2CH GP 8SOIC |
2,717 | 6.91 |
RFQ |
Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount | |
|

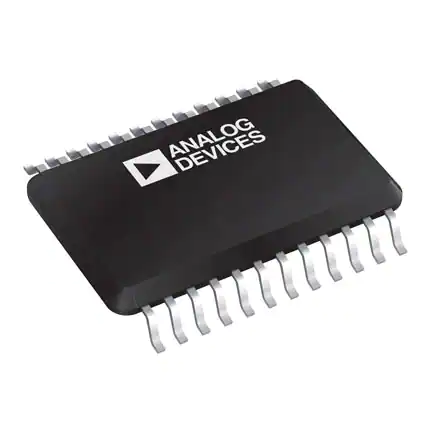

ADUM5411BRSZ-RL7DGTL ISO 2500VRMS 4CH GP 24SSOP |
3,822 | 10.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 2500Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADM3260ARSZ-RL7DGT ISOL 2500VRMS 2CH I2C 20SSOP |
2,378 | 10.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | IsoPower®, iCoupler® | Active | Magnetic Coupling | I²C | Yes | 2 | 2/2 | Bidirectional | 2500Vrms | 25kV/µs | - | - | 145ns, 85ns | - | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM3400BRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,613 | 1.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM3402BRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,118 | 7.11 |
RFQ |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM3401BRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,754 | 7.11 |
RFQ |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM3301BRWZDGTL ISO 2500VRMS 3CH GP 16SOIC |
2,417 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
ADUM3400ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,821 | 7.19 |
RFQ |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM3401ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,854 | 1.00 |
RFQ |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM3402ARWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,806 | 7.19 |
RFQ |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM5212ARSZDGTL ISO 2500VRMS 2CH GP 20SSOP |
2,391 | 7.24 |
RFQ |
Tube | IsoPower®, iCoupler® | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 50ns, 50ns | 10ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | |
|
|
ADUM1301WSRWZDGTL ISO 2500VRMS 3CH GP 16SOIC |
2,932 | 6.53 |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 100ns, 100ns | 40ns | 2.5ns, 2.5ns | 3V ~ 5.5V | -40°C ~ 125°C | Surface Mount |
|
|
ADM2490EBRWZDGTL ISO 5KV RS422/RS485 16SOIC |
3,247 | 7.34 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | RS422, RS485 | No | 2 | 1/1 | Unidirectional | 5000Vrms | 25kV/µs | 16Mbps | 60ns, 60ns | - | - | 3V, 5V | -40°C ~ 105°C | Surface Mount |
|
|
ADM2483BRWZDGT ISO 2.5KV RS422/RS485 16SOIC |
3,443 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | iCoupler® | Active | Magnetic Coupling | RS422, RS485 | No | 3 | 2/1 | Bidirectional | 2500Vrms | 25kV/µs | 500kbps | - | - | 600ns, 600ns (Max) | 3V, 5V | -40°C ~ 85°C | Surface Mount |
|
|
ADUM1301CRWZDGTL ISO 2500VRMS 3CH GP 16SOIC |
2,729 | 6.63 |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 2500Vrms | 25kV/µs | 90Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
