| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UMHVP-1212HV DC-DC CONVERTER, 12V IN, +1.2 |
2,168 | 169.07 |
RFQ |
Datasheet |
4-DIP Module | Box | UMHVP | Active | High Voltage - Isolated Module | 1 | 0V | 12V | 1200V | - | - | - | 417µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
|
UMHVP-1212NHV DC-DC CONVERTER, 12V IN, -1.2 |
2,510 | 169.07 |
RFQ |
Datasheet |
4-DIP Module | Box | UMHVP | Active | High Voltage - Isolated Module | 1 | 0V | 12V | -1200V | - | - | - | 417µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
|
UMHVP-0520HV DC-DC CONVERTER, 5V IN, +2KV |
2,973 | 214.47 |
RFQ |
Datasheet |
4-DIP Module | Box | UMHVP | Active | High Voltage - Isolated Module | 1 | 0V | 5V | 2000V | - | - | - | 250µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
|
UMHVP-0520NHV DC-DC CONVERTER, 5V IN, -2KV |
2,731 | 214.47 |
RFQ |
Datasheet |
4-DIP Module | Box | UMHVP | Active | High Voltage - Isolated Module | 1 | 0V | 5V | -2000V | - | - | - | 250µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
|
UMHVP-0530HV DC-DC CONVERTER, 5V IN, +3KV |
3,201 | 237.96 |
RFQ |
Datasheet |
4-DIP Module | Box | UMHVP | Active | High Voltage - Isolated Module | 1 | 0V | 5V | 3000V | - | - | - | 167µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
|
UMHVP-0530NHV DC-DC CONVERTER, 5V IN, -3KV |
3,143 | 237.96 |
RFQ |
Datasheet |
4-DIP Module | Box | UMHVP | Active | High Voltage - Isolated Module | 1 | 0V | 5V | -3000V | - | - | - | 167µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
|
UMHVP-0540HV DC-DC CONVERTER, 5V IN, +4KV |
2,203 | 277.09 |
RFQ |
Datasheet |
4-DIP Module | Box | UMHVP | Active | High Voltage - Isolated Module | 1 | 0V | 5V | 4000V | - | - | - | 125µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
|
UMHVP-0540NHV DC-DC CONVERTER, 5V IN, -4KV |
2,255 | 277.09 |
RFQ |
Datasheet |
4-DIP Module | Box | UMHVP | Active | High Voltage - Isolated Module | 1 | 0V | 5V | -4000V | - | - | - | 125µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
SK1230NDC DC CONVERTER -3000V 1W |
3,846 | 294.31 |
RFQ |
5-DIP Module | Bulk | SK | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 13.2V | -3000V | - | - | - | 333µA | 1 W | - | ITE (Commercial) | - | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | |||
|
|
SK0530DC DC CONVERTER 3000V 1W |
2,466 | 294.31 |
RFQ |
Datasheet |
5-DIP Module | Bulk | SK | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 5.5V | 3000V | - | - | - | 333µA | 1 W | - | ITE (Commercial) | - | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | ||
|
|
SK1230DC DC CONVERTER 3000V 1W |
2,792 | 294.31 |
RFQ |
5-DIP Module | Bulk | SK | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 13.2V | 3000V | - | - | - | 333µA | 1 W | - | ITE (Commercial) | - | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | |||
|
|
UMHVP-0550NHV DC-DC CONVERTER, 5V IN, -5KV |
2,095 | 300.58 |
RFQ |
Datasheet |
4-DIP Module | Box | UMHVP | Active | High Voltage - Isolated Module | 1 | 0V | 5V | -5000V | - | - | - | 100µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
|
SK0540DC DC CONVERTER 4000V 1W |
2,561 | 317.80 |
RFQ |
Datasheet |
5-DIP Module | Bulk | SK | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 5.5V | 4000V | - | - | - | 250µA | 1 W | - | ITE (Commercial) | - | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | ||
|
|
SK1240DC DC CONVERTER 4000V 1W |
2,430 | 317.80 |
RFQ |
5-DIP Module | Bulk | SK | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 13.2V | 4000V | - | - | - | 250µA | 1 W | - | ITE (Commercial) | - | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | |||
|
|
SK1240NDC DC CONVERTER -4000V 1W |
2,465 | 317.80 |
RFQ |
5-DIP Module | Bulk | SK | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 13.2V | -4000V | - | - | - | 250µA | 1 W | - | ITE (Commercial) | - | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | |||
|

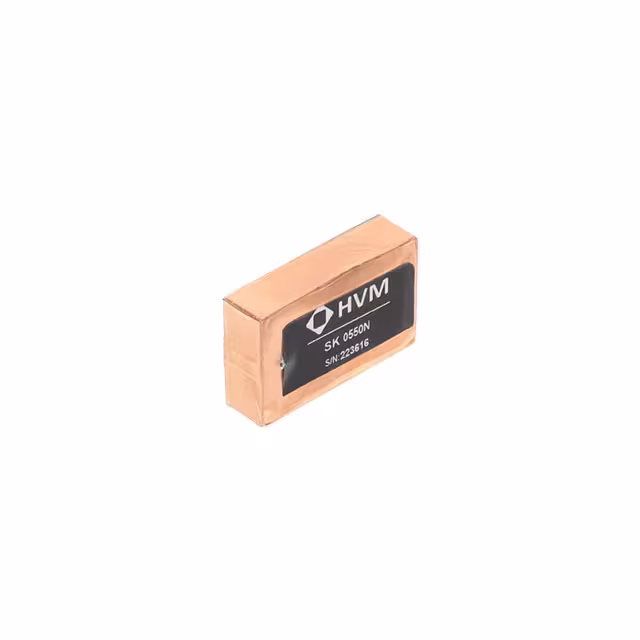

SK0550NMINIATURE REGULATED HV DC-DC CON |
3,035 | 341.28 |
RFQ |
Datasheet |
5-DIP Module | Box | SK | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 5.5V | 0 ~ -5000V | - | - | - | 200µA | 1 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | ||
|
SK0550MINIATURE REGULATED HV DC-DC CON |
3,782 | 341.28 |
RFQ |
Datasheet |
5-DIP Module | Box | SK | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 5.5V | 0 ~ 5000V | - | - | - | 200µA | 1 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | ||
|
|
SK1250NMINIATURE REGULATED HV DC-DC CON |
3,802 | 341.28 |
RFQ |
Datasheet |
5-DIP Module | Box | SK | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 12.5V | 0 ~ -5000V | - | - | - | 200µA | 1 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | ||
|
|
SK1250MINIATURE REGULATED HV DC-DC CON |
3,666 | 341.28 |
RFQ |
Datasheet |
5-DIP Module | Box | SK | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 12.5V | 0 ~ 5000V | - | - | - | 200µA | 1 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 60°C | 60% | Through Hole | 1.75 L x 1.10 W x 0.50 H (44.5mm x 27.9mm x 12.7mm) | ||
|
UMHV0510NDC DC CONVERTER -1000V 500MW |
2,710 | 151.12 |
RFQ |
Datasheet |
5-DIP Module | Bulk | UMHV | Active | High Voltage - Isolated Module | 1 | 4.5V | 5.5V | -1000V | - | - | - | 500µA | 500 mW | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 55% | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) |
