| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC4AB22HMDC DC CONVERTER 12V 5.6W |
2,424 | 18.16 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 470mA | 5.6 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 82% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) | ||
|
|
EC4AB23HMDC DC CONVERTER 15V 6W |
3,954 | 18.16 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 1 | 36V | 72V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) | ||
|
|
EC4AB24HMDC DC CONVERTER +/-12V 5.5W |
2,496 | 18.16 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 2 | 36V | 72V | 12V | -12V | - | - | 230mA, 230mA | 5.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) | ||
|
|
EC4AB25HMDC DC CONVERTER +/-15V 5.7W |
2,621 | 18.16 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 2 | 36V | 72V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 80% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) | ||
|
|
EC4AB26HMDC DC CONVERTER +/-5V 5W |
3,613 | 18.16 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 2 | 36V | 72V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) | ||
|
EC4AW15MDC DC CONVERTER +/-15V 5.7W |
2,205 | 18.18 |
RFQ |
Datasheet |
24-DIP Module, 10 Leads | Tube | EC4AW (6W) | Active | Isolated Module | 2 | 18V | 72V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 85% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC4AB05HDC DC CONVERTER +/-15V 5.7W |
3,890 | 18.40 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) | ||
|
|
EC4AB06HDC DC CONVERTER +/-5V 5W |
2,088 | 18.40 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) | ||
|

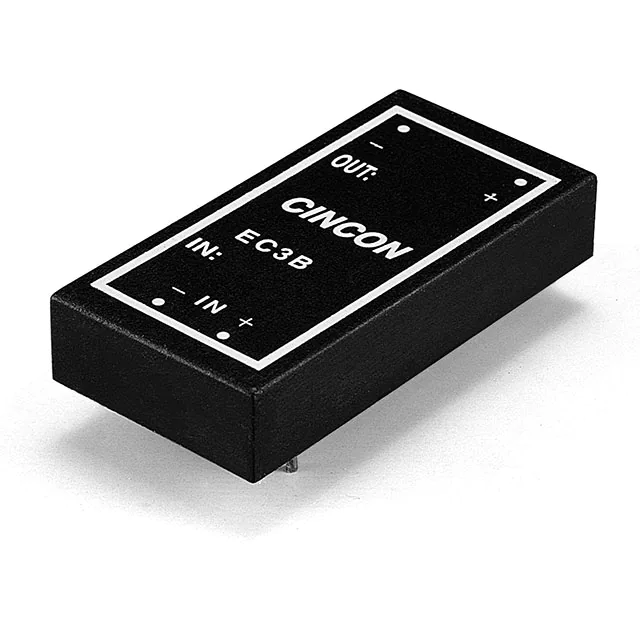

EC3BB04DC DC CONVERTER +/-12V 7.5W |
2,385 | 18.51 |
RFQ |
6-DIP Module | Tube | EC3BB (7.5W) | Not For New Designs | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 310mA, 310mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 80% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | |||
|
|
EC3BB05DC DC CONVERTER +/-15V 7.5W |
3,283 | 18.51 |
RFQ |
6-DIP Module | Tube | EC3BB (7.5W) | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 250mA, 250mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 80% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | |||
|
|
EC3BB06DC DC CONVERTER 5V 5V 7.5W |
3,262 | 18.51 |
RFQ |
6-DIP Module | Tube | EC3BB (7.5W) | Not For New Designs | Isolated Module | 2 | 9V | 18V | 5V | 5V | - | - | 750mA, 750mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | |||
|
|
EC3BB14DC DC CONVERTER +/-12V 7.5W |
2,460 | 18.51 |
RFQ |
6-DIP Module | Tube | EC3BB (7.5W) | Not For New Designs | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 310mA, 310mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | |||
|
|
EC3BB15DC DC CONVERTER +/-15V 7.5W |
2,514 | 18.51 |
RFQ |
6-DIP Module | Tube | EC3BB (7.5W) | Not For New Designs | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 250mA, 250mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | |||
|
|
EC3BB16DC DC CONVERTER 5V 5V 7.5W |
3,189 | 18.51 |
RFQ |
6-DIP Module | Tube | EC3BB (7.5W) | Not For New Designs | Isolated Module | 2 | 18V | 36V | 5V | 5V | - | - | 750mA, 750mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 78% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | |||
|
|
EC3BB24DC DC CONVERTER +/-12V 7.5W |
2,404 | 18.51 |
RFQ |
6-DIP Module | Tube | EC3BB (7.5W) | Not For New Designs | Isolated Module | 2 | 36V | 72V | 12V | -12V | - | - | 310mA, 310mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | |||
|
|
EC3BB25DC DC CONVERTER +/-15V 7.5W |
2,455 | 18.51 |
RFQ |
6-DIP Module | Tube | EC3BB (7.5W) | Not For New Designs | Isolated Module | 2 | 36V | 72V | 15V | -15V | - | - | 250mA, 250mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | |||
|
|
EC3BB26DC DC CONVERTER 5V 5V 7.5W |
2,588 | 18.51 |
RFQ |
6-DIP Module | Tube | EC3BB (7.5W) | Not For New Designs | Isolated Module | 2 | 36V | 72V | 5V | 5V | - | - | 750mA, 750mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 78% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | |||
|
|
EC4AB01HTDC DC CONVERTER 5V 5W |
2,392 | 18.81 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | Remote On/Off, SCP | -25°C ~ 71°C | 76% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) | ||
|
|
EC4AB02HTDC DC CONVERTER 12V 5.6W |
3,246 | 18.81 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 470mA | 5.6 W | 3 kV | ITE (Commercial) | Remote On/Off, SCP | -25°C ~ 71°C | 80% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) | ||
|
|
EC4AB03HTDC DC CONVERTER 15V 6W |
3,056 | 18.81 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AB (6W) | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 400mA | 6 W | 3 kV | ITE (Commercial) | Remote On/Off, SCP | -25°C ~ 71°C | 81% | Through Hole | 1.25 L x 0.80 W x 0.50 H (31.8mm x 20.3mm x 12.7mm) |
