| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC3A05DC DC CONVERTER +/-12V 3W |
341 | 11.29 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC3A (3W) | Active | Isolated Module | 2 | 4.5V | 6V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC3A24DC DC CONVERTER +/-5V 3W |
256 | 11.29 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC3A (3W) | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
EC4A02H-EDC DC CONVERTER 12V 6W |
410 | 13.19 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4A-E (6W) | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 84% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
EC3AW02HDC DC CONVERTER 12V 3W |
451 | 13.21 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC3AW (3W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
EC3A23H-EDC DC CONVERTER 15V 3W |
416 | 13.40 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC3A-E (3W) | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 86% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC3A21HDC DC CONVERTER 5V 3W |
350 | 13.40 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC3A (3W) | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|

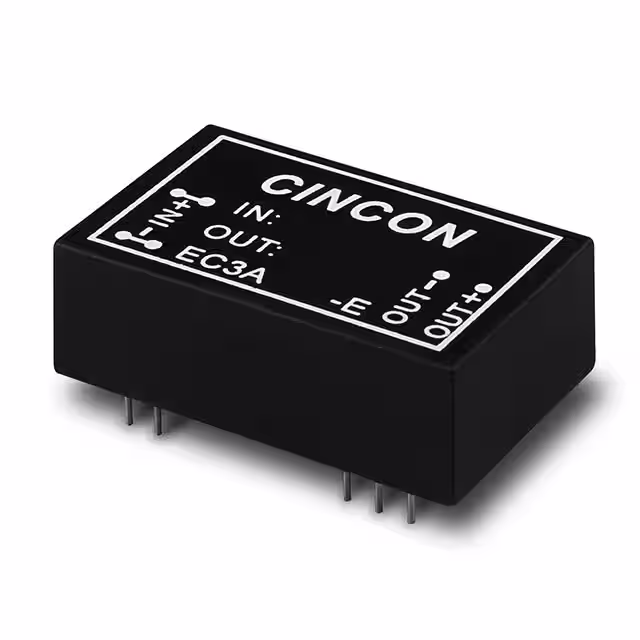

EC3A21H-EDC DC CONVERTER 5V 3W |
130 | 13.40 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC3A-E (3W) | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 82% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC3AW05DC DC CONVERTER +/-12V 3W |
220 | 13.70 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC3AW (3W) | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
EC4SAW-48S15NDC DC CONVERTER 15V 6W |
164 | 14.40 |
RFQ |
Datasheet |
8-SIP Module, 7 Leads | Tube | EC4SAW (6W) | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 88% | Through Hole | 0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm) | ||
|

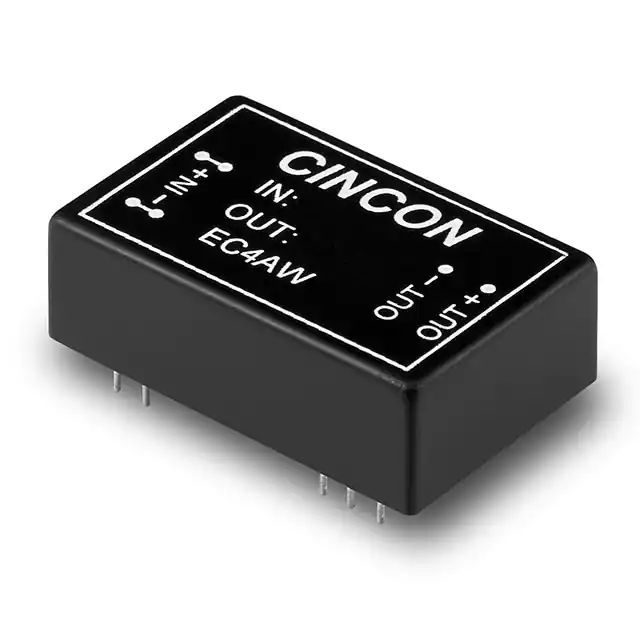

EC4AW02HDC DC CONVERTER 12V 5.6W |
369 | 18.96 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AW (6W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 470mA | 5.6 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC4AW03HDC DC CONVERTER 15V 6W |
110 | 18.96 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AW (6W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
EC6AW-24S05DC DC CONVERTER 5V 8W |
3,739 | 21.00 |
RFQ |
Datasheet |
24-DIP Module, 9 Leads | Tube | EC6AW (8W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.6A | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC6AW-48S12DC DC CONVERTER 12V 8W |
2,691 | 21.00 |
RFQ |
Datasheet |
24-DIP Module, 9 Leads | Tube | EC6AW (8W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 666mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC6AW-24S33DC DC CONVERTER 3.3V 6.6W |
3,451 | 21.00 |
RFQ |
Datasheet |
24-DIP Module, 9 Leads | Tube | EC6AW (8W) | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2A | 6.6 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 80% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC4AW05HDC DC CONVERTER +/-15V 5.7W |
183 | 21.12 |
RFQ |
Datasheet |
24-DIP Module, 14 Leads | Tube | EC4AW (6W) | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|

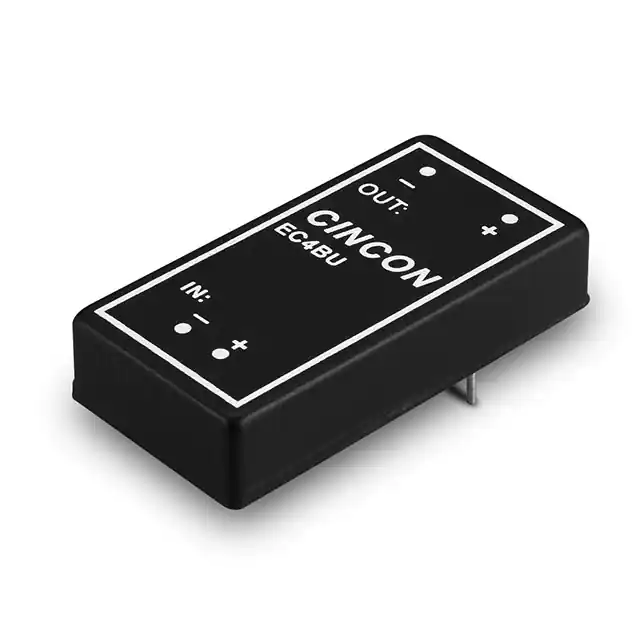

EC4BU-05S15DC DC CONVERTER 15V 10W |
112 | 29.84 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC4BU (10W) | Active | Isolated Module | 1 | 4.7V | 9V | 15V | - | - | - | 666mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 87% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|

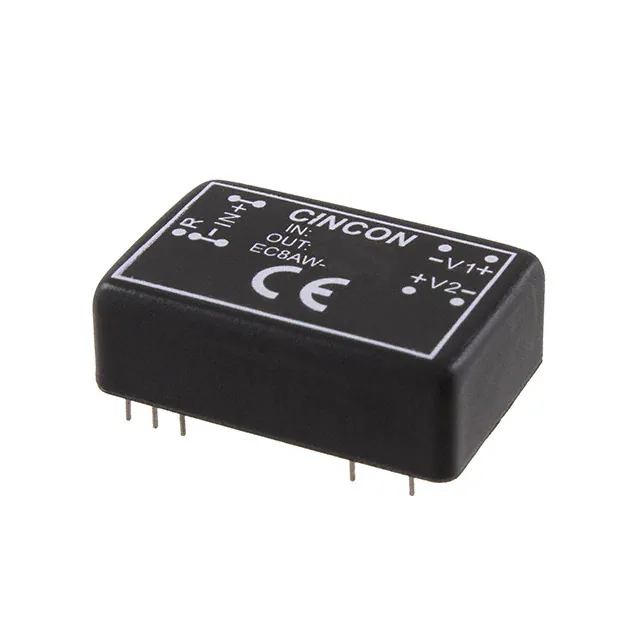

EC8AW-48S05DC DC CONVERTER 5V 15W |
643 | 31.00 |
RFQ |
Datasheet |
24-DIP Module, 9 Leads | Tube | EC8AW (15W) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
CHB75-24S12NDC DC CONVERTER 12V 75W |
877 | 75.62 |
RFQ |
Datasheet |
Half Brick | Tray | CHB75 (75W) | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CHB75-48S15DC DC CONVERTER 15V 75W |
141 | 75.62 |
RFQ |
Datasheet |
Half Brick | Tray | CHB75 (75W) | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 5A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CHB75-48S24DC DC CONVERTER 24V 75W |
132 | 75.62 |
RFQ |
Datasheet |
Half Brick | Tray | CHB75 (75W) | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 3.13A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) |
