| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MGFS404812DC DC CONVERTER 12V 41W |
2,012 | 65.50 |
RFQ |
Datasheet |
6-DIP Module | Tube | MGFS (40W) | Active | Isolated Module | 1 | 18V | 76V | 12V | - | - | - | 3.4A | 41 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | Through Hole | 1.00 L x 1.00 W x 0.39 H (25.4mm x 25.4mm x 9.9mm) | ||
|
MGFS400505DC DC CONVERTER 5V 30W |
3,049 | 65.50 |
RFQ |
Datasheet |
6-DIP Module | Tube | MGFS (40W) | Active | Isolated Module | 1 | 4.5V | 13V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | Through Hole | 1.00 L x 1.00 W x 0.39 H (25.4mm x 25.4mm x 9.9mm) | ||
|
|
MGFW402412DC DC CONVERTER +/-12V 41W |
2,835 | 65.50 |
RFQ |
Datasheet |
6-DIP Module | Tube | MGFW (40W) | Active | Isolated Module | 2 | 9V | 36V | 12V or 24V | -12V | - | - | 1.7A, 1.7A | 41 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 1.00 L x 1.00 W x 0.39 H (25.4mm x 25.4mm x 9.9mm) | ||
|
CHS1204812DC DC CONVERTER 12V |
2,947 | 74.93 |
RFQ |
Datasheet |
8-DIP Module | Box | CHS (120W) | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 10A | - | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 1.30 L x 0.90 W x 0.41 H (33.0mm x 22.9mm x 10.5mm) | ||
|
CHS804805DC DC CONVERTER 5V |
2,796 | 70.14 |
RFQ |
Datasheet |
8-DIP Module | Box | CHS (80W) | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 16A | - | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 92% | Through Hole | 1.30 L x 0.90 W x 0.41 H (33.0mm x 22.8mm x 10.5mm) | ||
|

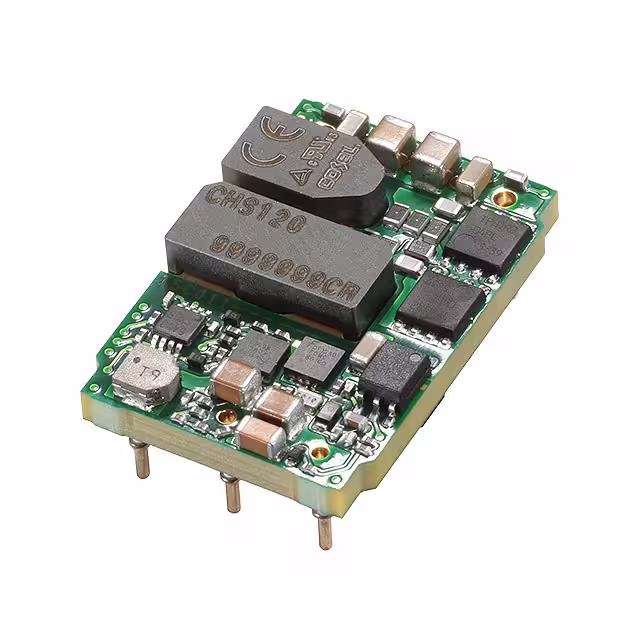

CHS1202412DC DC CONVERTER 12V 120W |
3,168 | 74.93 |
RFQ |
Datasheet |
Sixteenth Brick | Box | CHS (120W) | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91.5% | Through Hole | 1.30 L x 0.90 W x 0.41 H (33.0mm x 22.9mm x 10.5mm) | ||
|
CHS1202415DC DC CONVERTER 15V 120W |
2,010 | 74.93 |
RFQ |
Datasheet |
Sixteenth Brick | Box | CHS (120W) | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 8A | 120 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 1.30 L x 0.90 W x 0.41 H (33.0mm x 22.9mm x 10.5mm) | ||
|
CHS1202405DC DC CONVERTER 5V 120W |
2,549 | 74.93 |
RFQ |
Datasheet |
Sixteenth Brick | Box | CHS (120W) | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 24A | 120 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 92.5% | Through Hole | 1.30 L x 0.90 W x 0.41 H (33.0mm x 22.9mm x 10.5mm) | ||
|
MGFS802415DC DC CONVERTER 15V 81W |
2,014 | 90.21 |
RFQ |
Datasheet |
6-DIP Module | Tube | MGFS (80W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 5.4A | 81 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | Through Hole | 2.00 L x 1.00 W x 0.39 H (50.8mm x 25.4mm x 9.9mm) | ||
.jpg)
|
MGFW804812DC DC CONVERTER +/-12V 82W |
3,174 | 90.21 |
RFQ |
Datasheet |
6-DIP Module | Tube | MGFW (80W) | Active | Isolated Module | 2 | 18V | 76V | 12V or 24V | -12V | - | - | 3.4A, 3.4A | 82 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 94% | Through Hole | 2.00 L x 1.00 W x 0.39 H (50.8mm x 25.4mm x 9.9mm) | ||
|

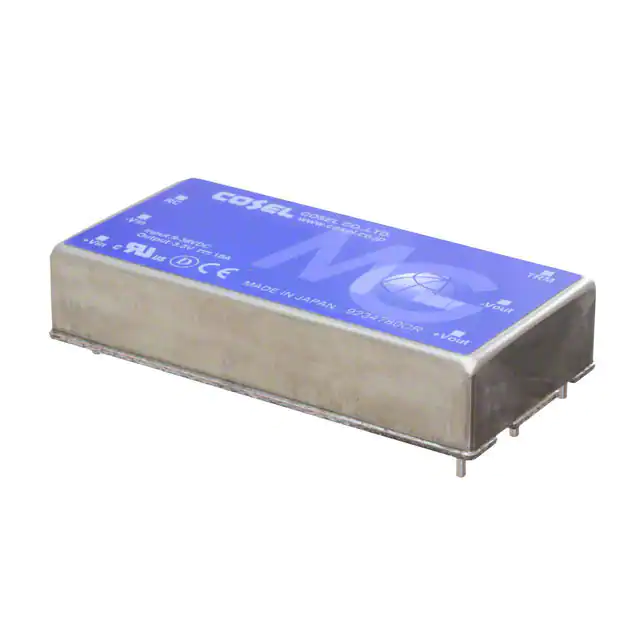

MGFW802415DC DC CONVERTER +/-15V 81W |
3,828 | 90.21 |
RFQ |
Datasheet |
6-DIP Module | Tube | MGFW (80W) | Active | Isolated Module | 2 | 9V | 36V | 15V or 30V | -15V | - | - | 2.7A, 2.7A | 81 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 94% | Through Hole | 2.00 L x 1.00 W x 0.39 H (50.8mm x 25.4mm x 9.9mm) | ||
|
|
MGFW802412DC DC CONVERTER +/-12V 82W |
3,617 | 90.21 |
RFQ |
Datasheet |
6-DIP Module | Tube | MGFW (80W) | Active | Isolated Module | 2 | 9V | 36V | 12V or 24V | -12V | - | - | 3.4A, 3.4A | 82 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 94% | Through Hole | 2.00 L x 1.00 W x 0.39 H (50.8mm x 25.4mm x 9.9mm) | ||
|

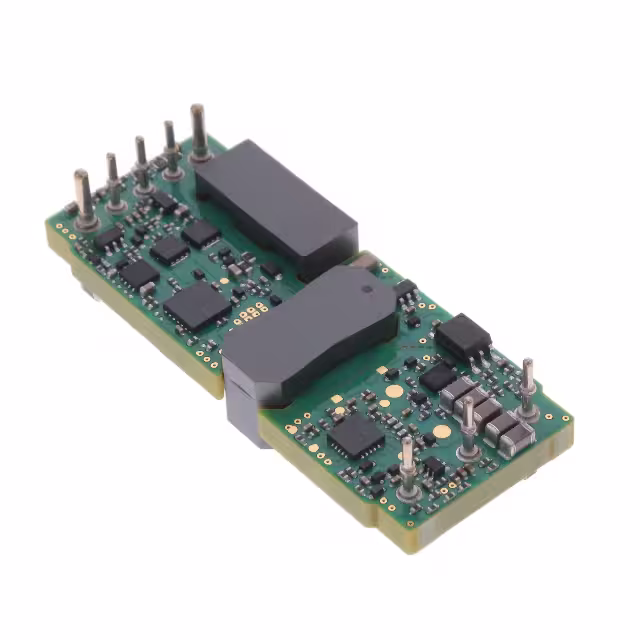

CHS3002448DC DC CONVERTER 48V 254W |
3,382 | 96.40 |
RFQ |
Datasheet |
8-DIP Module | Box | CHS (300W) | Active | Isolated Module | 1 | 18V | 36V | 48V | - | - | - | 5.3A | 254 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 93.5% | Through Hole | 2.30 L x 0.90 W x 0.43 H (58.4mm x 22.9mm x 11.0mm) | ||
|

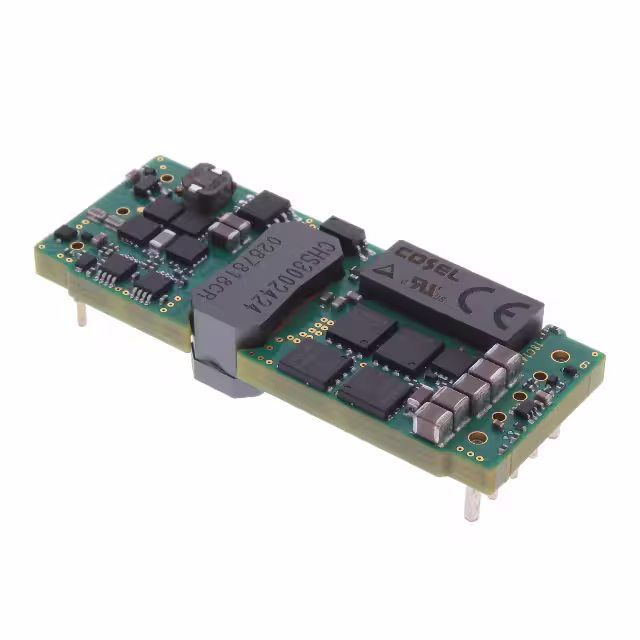

CHS3002424DC DC CONVERTER 24V 252W |
2,018 | 96.40 |
RFQ |
Datasheet |
8-DIP Module | Box | CHS (300W) | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 10.5A | 252 W | 2.25 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 94% | Through Hole | 2.30 L x 0.90 W x 0.43 H (58.4mm x 22.9mm x 11.0mm) | ||
|
CBS502415DC DC CONVERTER 15V |
2,001 | 119.53 |
RFQ |
Datasheet |
13-DIP Module | Box | CBS (50W) | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 3.4A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 87% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CBS504824DC DC CONVERTER 24V |
2,559 | 119.53 |
RFQ |
Datasheet |
13-DIP Module | Box | CBS (50W) | Active | Isolated Module | 1 | 36V | 76V | 24V | - | - | - | 2.1A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 88% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CHS4002412DC DC CONVERTER 12V 318W |
2,045 | 115.05 |
RFQ |
Datasheet |
Quarter Brick | Box | CHS (400W) | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 26.5A | 318 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 93.5% | Through Hole | 2.30 L x 1.45 W x 0.37 H (58.4mm x 36.8mm x 9.5mm) | ||
|
CBS1002424DC DC CONVERTER 24V |
2,362 | 141.58 |
RFQ |
Datasheet |
9-DIP Module | Box | CBS (100W) | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 4.2A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 87% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CBS2004812DC DC CONVERTER 12V |
3,283 | 154.06 |
RFQ |
Datasheet |
9-DIP Module | Box | CBS (200W) | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 16.7A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 88% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CBS2002403DC DC CONVERTER 3.3V 116W |
2,918 | 154.06 |
RFQ |
Datasheet |
Half Brick | Box | CBS (200W) | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 35A | 116 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C (With Derating) | 79% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) |
