| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

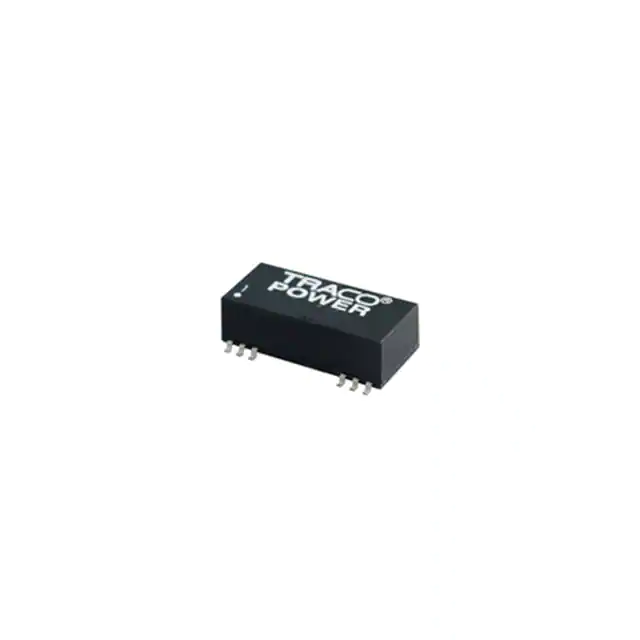

TES 3-4810DC DC CONVERTER 3.3V 2.3W |
2,512 | 30.63 |
RFQ |
Datasheet |
24-SMD Module, 12 Leads | Tube | TES 3 (3W) | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 76% | Surface Mount | 1.27 L x 0.58 W x 0.40 H (32.2mm x 14.8mm x 10.2mm) | ||
|
TDR 3-0522DC DC CONVERTER +/-12V 3W |
2,564 | 30.69 |
RFQ |
Datasheet |
14-DIP Module, 7 Leads | Tube | TDR 3 (3W) | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | Through Hole | 0.74 L x 0.50 W x 0.34 H (18.9mm x 12.8mm x 8.7mm) | ||
|
TDR 3-0523DC DC CONVERTER +/-15V 3W |
2,272 | 30.69 |
RFQ |
Datasheet |
14-DIP Module, 7 Leads | Tube | TDR 3 (3W) | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | Through Hole | 0.74 L x 0.50 W x 0.34 H (18.9mm x 12.8mm x 8.7mm) | ||
|
|
TDR 3-1222DC DC CONVERTER +/-12V 3W |
3,670 | 30.69 |
RFQ |
Datasheet |
14-DIP Module, 7 Leads | Tube | TDR 3 (3W) | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | Through Hole | 0.74 L x 0.50 W x 0.34 H (18.9mm x 12.8mm x 8.7mm) | ||
|
TDR 3-1223DC DC CONVERTER +/-15V 3W |
3,534 | 30.69 |
RFQ |
Datasheet |
14-DIP Module, 7 Leads | Tube | TDR 3 (3W) | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | Through Hole | 0.74 L x 0.50 W x 0.34 H (18.9mm x 12.8mm x 8.7mm) | ||
|
|
TDR 3-2422DC DC CONVERTER +/-12V 3W |
2,659 | 30.69 |
RFQ |
Datasheet |
14-DIP Module, 7 Leads | Tube | TDR 3 (3W) | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | Through Hole | 0.74 L x 0.50 W x 0.34 H (18.9mm x 12.8mm x 8.7mm) | ||
|
TDR 3-2423DC DC CONVERTER +/-15V 3W |
2,694 | 30.69 |
RFQ |
Datasheet |
14-DIP Module, 7 Leads | Tube | TDR 3 (3W) | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | Through Hole | 0.74 L x 0.50 W x 0.34 H (18.9mm x 12.8mm x 8.7mm) | ||
|
|
TDR 3-4822DC DC CONVERTER +/-12V 3W |
3,492 | 30.69 |
RFQ |
Datasheet |
14-DIP Module, 7 Leads | Tube | TDR 3 (3W) | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | Through Hole | 0.74 L x 0.50 W x 0.34 H (18.9mm x 12.8mm x 8.7mm) | ||
|
|
TDR 3-4823DC DC CONVERTER +/-15V 3W |
3,377 | 30.69 |
RFQ |
Datasheet |
14-DIP Module, 7 Leads | Tube | TDR 3 (3W) | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | Through Hole | 0.74 L x 0.50 W x 0.34 H (18.9mm x 12.8mm x 8.7mm) | ||
|
TES 3-1223DC DC CONVERTER +/-15V 3W |
2,917 | 31.82 |
RFQ |
Datasheet |
24-SMD Module, 12 Leads | Tube | TES 3 (3W) | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | Surface Mount | 1.27 L x 0.58 W x 0.40 H (32.2mm x 14.8mm x 10.2mm) | ||
|
|
TES 3-4822DC DC CONVERTER +/-12V 3W |
3,708 | 31.82 |
RFQ |
Datasheet |
24-SMD Module, 12 Leads | Tube | TES 3 (3W) | Not For New Designs | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | Surface Mount | 1.27 L x 0.58 W x 0.40 H (32.2mm x 14.8mm x 10.2mm) | ||
|
|
TES 3-4823DC DC CONVERTER +/-15V 3W |
3,787 | 31.82 |
RFQ |
Datasheet |
24-SMD Module, 12 Leads | Tube | TES 3 (3W) | Not For New Designs | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | Surface Mount | 1.27 L x 0.58 W x 0.40 H (32.2mm x 14.8mm x 10.2mm) | ||
|
TEN 8-4821DC DC CONVERTER +/-5V 8W |
3,094 | 31.85 |
RFQ |
Datasheet |
24-DIP Module, 9 Leads | Tube | TEN 8 (8W) | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 800mA, 800mA | 8 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 85% | Through Hole | 1.26 L x 0.80 W x 0.40 H (32.0mm x 20.3mm x 10.2mm) | ||
|
THL 10-1221DC DC CONVERTER +/-5V 10W |
3,597 | 32.04 |
RFQ |
Datasheet |
5-DIP Module | Box | THL 10 (10W) | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 84% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
|
THL 10-1222DC DC CONVERTER +/-12V 10W |
2,326 | 32.04 |
RFQ |
Datasheet |
5-DIP Module | Box | THL 10 (10W) | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 87% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
|
THL 10-1223DC DC CONVERTER +/-15V 10W |
2,842 | 32.04 |
RFQ |
Datasheet |
5-DIP Module | Box | THL 10 (10W) | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 87% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
|
THL 10-2422DC DC CONVERTER +/-12V 10W |
3,229 | 32.04 |
RFQ |
Datasheet |
5-DIP Module | Box | THL 10 (10W) | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 88% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
|
THL 10-2423DC DC CONVERTER +/-15V 10W |
2,515 | 32.04 |
RFQ |
Datasheet |
5-DIP Module | Box | THL 10 (10W) | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 89% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
|
THL 10-4821DC DC CONVERTER +/-5V 10W |
2,806 | 32.04 |
RFQ |
Datasheet |
5-DIP Module | Box | THL 10 (10W) | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 86% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
|
THL 10-4822DC DC CONVERTER +/-12V 10W |
2,483 | 32.04 |
RFQ |
Datasheet |
5-DIP Module | Box | THL 10 (10W) | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 87% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) |
