| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gull Wing15.2mm.jpg)
|
PES1-S5-D15-M-TRDC DC CONVERTER +/-15V 1W |
3,671 | 5.73 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.3mm x 7.3mm) | ||
|
PDS1-S3-S3-MDC DC CONVERTER 3.3V 1W |
2,955 | 4.72 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PDS1-M (1W) | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 69% | Surface Mount | 0.50 L x 0.33 W x 0.29 H (12.7mm x 8.3mm x 7.3mm) | ||
|
PESE1-S5-D15-MDC DC CONVERTER +/-15V 1W |
3,424 | 5.09 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tube | PESE1-M (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
PEM1-S12-S15-SDC DC CONVERTER 15V 1W |
2,305 | 5.22 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PEM1-S (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 81% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
|
|
PEM1-S24-S5-SDC DC CONVERTER 5V 1W |
2,389 | 5.22 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PEM1-S (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 79% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
|
|
PEM1-S24-S24-SDC DC CONVERTER 24V 1W |
3,986 | 5.26 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PEM1-S (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 81% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
|
PES1-S24-S24-M-TRDC DC CONVERTER 24V 1W |
3,049 | 6.78 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tape & Reel (TR),Cut Tape (CT) | PES1-M (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | Surface Mount | 0.50 L x 0.32 W x 0.29 H (12.8mm x 8.2mm x 7.3mm) | ||
.jpg)
|
PDS1-S5-D15-MDC DC CONVERTER +/-15V 1W |
3,032 | 5.62 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tube | PDS1-M (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.3mm x 7.3mm) | ||
|
PDM2-S24-S5-SDC DC CONVERTER 5V 2W |
275 | 6.34 |
RFQ |
Datasheet |
6-SIP Module, 4 Leads | Tube | PDM2-S (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | Through Hole | 0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm) | ||
|
PCN2-S5-D15-SDC DC CONVERTER +/-15V 2W |
3,044 | 6.47 |
RFQ |
Datasheet |
6-SIP Module, 5 Leads | Tube | PCN2-S (2W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 86% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.6mm x 7.2mm x 10.2mm) | ||
|
VX7805-1000RDC DC CONVERTER +/-5V 7.5W |
2,393 | 6.52 |
RFQ |
Datasheet |
3-SIP Module | Tube | VX78-1000R | Active | Non-Isolated PoL Module | 1 | 8V | 36V | 5V, -5V | - | - | - | 1A, 500mA | 7.5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | Through Hole, Right Angle | 0.69 L x 0.45 W x 0.35 H (17.5mm x 11.5mm x 9.0mm) | ||
|
PDM2-S5-D24-SDC DC CONVERTER +/-24V 2W |
3,494 | 6.78 |
RFQ |
Datasheet |
6-SIP Module, 5 Leads | Tube | PDM2-S (2W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | Through Hole | 0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm) | ||
|

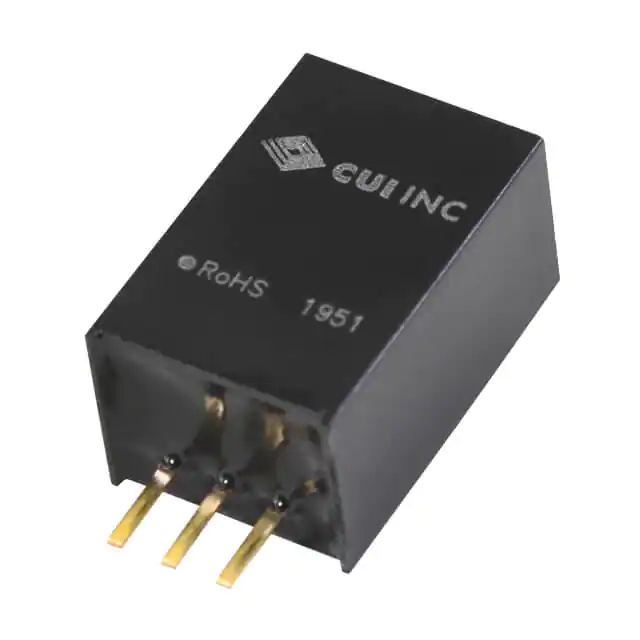

P7812-2000-SDC DC CONVERTER 12V 24W |
2,454 | 7.09 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-2000-S | Active | Non-Isolated PoL Module | 1 | 16V | 36V | 12V | - | - | - | 2A | 24 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | Through Hole | 0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm) | ||
|
|
P7803-2000-SDC DC CONVERTER 3.3V 6.6W |
3,942 | 7.09 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-2000-S | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 3.3V | - | - | - | 2A | 6.6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | Through Hole | 0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm) | ||
|
PEM2-S24-S5-SDC DC CONVERTER 5V 2W |
3,632 | 8.21 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PEM2-S (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | Through Hole | 0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm) | ||
|
|
P7815-2000-SDC DC CONVERTER 15V 30W |
3,933 | 8.27 |
RFQ |
Datasheet |
3-SIP Module | Tube | P78-2000-S | Active | Non-Isolated PoL Module | 1 | 16V | 36V | 15V | - | - | - | 2A | 30 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | Through Hole | 0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm) | ||
|
PEM2-S24-D12-SDC DC CONVERTER +/-12V 2W |
220 | 8.75 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | PEM2-S (2W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83.3mA, 83.3mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | Through Hole | 0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm) | ||
|
PRM3W-E12-S12-SDC-DC ISOLATED, 3 W, 4.5~36 VDC |
3,264 | 8.99 |
RFQ |
Datasheet |
8-SIP Module, 7 Leads | Tube | PRM3W-S (3W) | Active | Isolated Module | 1 | 4.5V | 36V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | Through Hole | 0.87 L x 0.37 W x 0.47 H (22.0mm x 9.5mm x 12.0mm) | ||
|
PQP3-D24-S24-DDC DC CONVERTER 24V 3W |
3,961 | 9.13 |
RFQ |
Datasheet |
8-DIP Module, 5 Leads | Tube | PQP3-D | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | Through Hole | 0.55 L x 0.55 W x 0.35 H (14.0mm x 14.0mm x 9.0mm) | ||
|
PQP3-D24-S5-MDC DC CONVERTER 5V 3W |
3,003 | 9.13 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PQP3-M | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | Surface Mount | 0.55 L x 0.55 W x 0.36 H (14.0mm x 14.0mm x 9.1mm) |
