| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDS1-S3-S5-DDC DC CONVERTER 5V 1W |
3,502 | 5.02 |
RFQ |
Datasheet |
7-DIP Module, 4 Leads | Tube | PDS1-D (1W) | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | Through Hole | 0.50 L x 0.39 W x 0.30 H (12.8mm x 10.0mm x 7.7mm) | ||
|
PCSA1-S12-S12-SDC DC CONVERTER 12V 1W |
2,231 | 5.02 |
RFQ |
Datasheet |
4-SIP Module | Tube | PSCA1-S (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 81% | Through Hole | 0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm) | ||
|
PEP1-S5-D3-MDC DC CONVERTER +/-3.3V 997MW |
2,538 | 5.07 |
RFQ |
Datasheet |
12-SMD Module, 10 Leads | Tube | PEP1-M (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 151mA, 151mA | 997 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 74% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
|
PEP1-S5-D12-MDC DC CONVERTER +/-12V 1W |
2,952 | 5.07 |
RFQ |
Datasheet |
12-SMD Module, 10 Leads | Tube | PEP1-M (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm) | ||
|
PEM1-S15-S5-SDC DC CONVERTER 5V 1W |
2,297 | 5.16 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PEM1-S (1W) | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
|

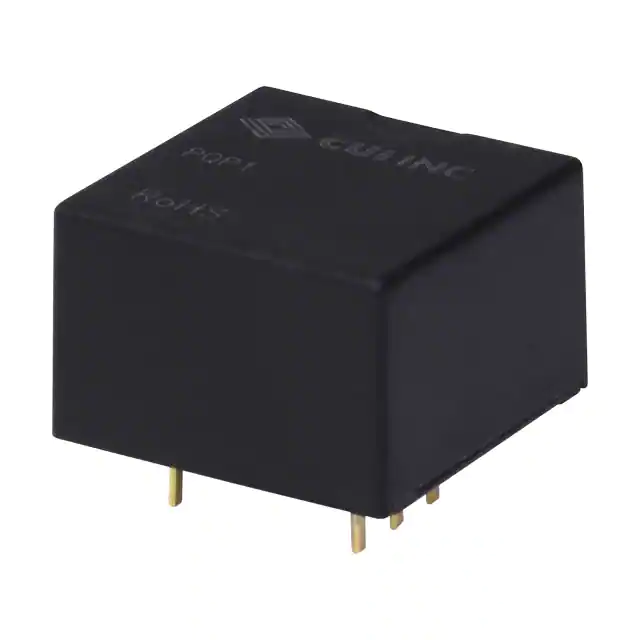

PQP1-D12-S3-DDC DC CONVERTER 3.3V 1W |
3,705 | 8.38 |
RFQ |
Datasheet |
8-DIP Module, 5 Leads | Tube | PQP1-D | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | Through Hole | 0.55 L x 0.55 W x 0.35 H (14.0mm x 14.0mm x 9.0mm) | ||
|
|
PQP1-D12-S5-DDC DC CONVERTER 5V 1W |
2,001 | 8.38 |
RFQ |
Datasheet |
8-DIP Module, 5 Leads | Tube | PQP1-D | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | Through Hole | 0.55 L x 0.55 W x 0.35 H (14.0mm x 14.0mm x 9.0mm) | ||
|
PQP1-D24-S12-MDC DC CONVERTER 12V 996MW |
2,744 | 8.38 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PQP1-M | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 83mA | 996 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | Surface Mount | 0.55 L x 0.55 W x 0.36 H (14.0mm x 14.0mm x 9.1mm) | ||
|
|
PQP1-D12-S15-MDC DC CONVERTER 15V 1W |
3,288 | 8.38 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PQP1-M | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | Surface Mount | 0.55 L x 0.55 W x 0.36 H (14.0mm x 14.0mm x 9.1mm) | ||
|
|
PQP1-D12-S5-MDC DC CONVERTER 5V 1W |
2,013 | 8.38 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | PQP1-M | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | Surface Mount | 0.55 L x 0.55 W x 0.36 H (14.0mm x 14.0mm x 9.1mm) | ||
|
PDS1-S24-S9-SDC DC CONVERTER 9V 1W |
2,066 | 5.22 |
RFQ |
Datasheet |
4-SIP Module | Tube | PDS1-S (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | Through Hole | 0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm) | ||
|
|
PEM1-S15-S15-SDC DC CONVERTER 15V 1W |
2,203 | 5.26 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PEM1-S (1W) | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 81% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
|
PDM1-S5-S24-SDC DC CONVERTER 24V 1W |
3,689 | 5.29 |
RFQ |
Datasheet |
6-SIP Module, 4 Leads | Tube | PDM1-S (1W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 81% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
|
|
PCN1-S12-S15-SDC DC CONVERTER 15V 1W |
2,009 | 5.31 |
RFQ |
Datasheet |
6-SIP Module, 4 Leads | Tube | PCN1-S (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 81% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.6mm x 6.1mm x 10.2mm) | ||
|
|
PEM1-S12-S3-SDC DC CONVERTER 3.3V 1W |
100 | 5.48 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | PEM1-S (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 75% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
|
|
PEM1-S24-D5-SDC DC CONVERTER +/-5V 1W |
3,860 | 5.51 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | PEM1-S (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
|
PEM1-S15-D5-SDC DC CONVERTER +/-5V 1W |
2,430 | 5.51 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | PEM1-S (1W) | Active | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
|
|
PEM1-S24-D3-SDC DC CONVERTER +/-3.3V 1W |
3,918 | 5.62 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | PEM1-S (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 73% | Through Hole | 0.77 L x 0.24 W x 0.37 H (19.5mm x 6.0mm x 9.3mm) | ||
.jpg)
|
PDS1-S3-D5-MDC DC CONVERTER +/-5V 1W |
2,106 | 5.62 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tube | PDS1-M (1W) | Active | Isolated Module | 2 | 2.97V | 3.63V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 78% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.3mm x 7.3mm) | ||
|
|
PDS1-S3-D15-MDC DC CONVERTER +/-15V 1W |
3,558 | 5.62 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Tube | PDS1-M (1W) | Active | Isolated Module | 2 | 2.97V | 3.63V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 78% | Surface Mount | 0.60 L x 0.33 W x 0.29 H (15.2mm x 8.3mm x 7.3mm) |
