| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QA153HC-2005R3DC/DC CONVERTER 15V 20/-5.0V 2.2 |
3,812 | 5.25 |
RFQ |
Datasheet |
10-SIP Module, 5 Leads | Tube | QA_HC-R3 | Active | Isolated Module | 2 | 13.5V | 16.5V | 20V | -5V | - | - | 90mA, 90mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | Through Hole | 1.08 L x 0.37 W x 0.47 H (27.4mm x 9.5mm x 12.0mm) | ||
|
|
QA243HC-1504R3DC/DC CONVERTER 24V 15/-4.0V 2. |
2,644 | 5.25 |
RFQ |
Datasheet |
10-SIP Module, 5 Leads | Tube | QA_HC-R3 | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -4V | - | - | 120mA, 120mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | Through Hole | 1.08 L x 0.37 W x 0.47 H (27.4mm x 9.5mm x 12.0mm) | ||
|

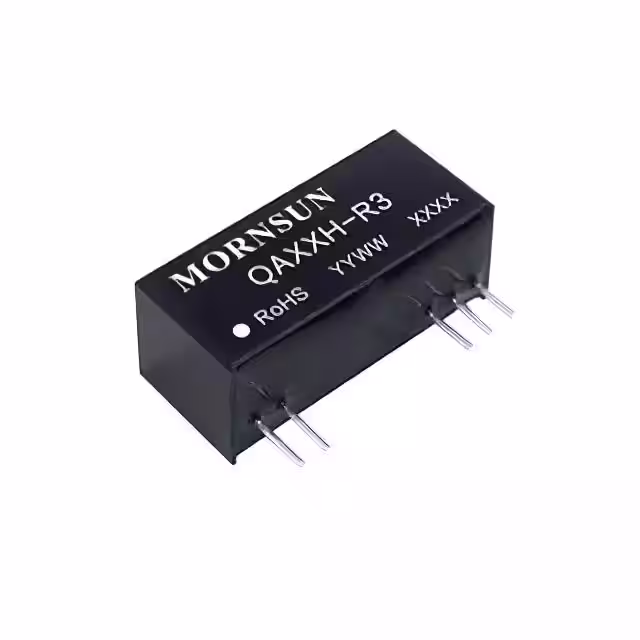

QA153H-1509R3DC/DC CONVERTER 15V 15/-9.0V 2.4 |
3,783 | 5.25 |
RFQ |
Datasheet |
10-SIP Module, 5 Leads | Tube | QA_H-R3 | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -9V | - | - | 100mA, 100mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | Through Hole | 1.08 L x 0.37 W x 0.47 H (27.4mm x 9.5mm x 12.0mm) | ||
|
|
QA243HC-2005R3DC/DC CONVERTER 24V 20/-5.0V 2. |
2,982 | 5.25 |
RFQ |
Datasheet |
10-SIP Module, 5 Leads | Tube | QA_HC-R3 | Active | Isolated Module | 2 | 21.6V | 26.4V | 20V | -5V | - | - | 90mA, 90mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | Through Hole | 1.08 L x 0.37 W x 0.47 H (27.4mm x 9.5mm x 12.0mm) | ||
|
|
QA123HC-2005R3DC/DC CONVERTER 12V 20/-5.0V 2.2 |
3,402 | 5.25 |
RFQ |
Datasheet |
10-SIP Module, 5 Leads | Tube | QA_HC-R3 | Active | Isolated Module | 2 | 10.8V | 13.2V | 20V | -5V | - | - | 90mA, 90mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | Through Hole | 1.08 L x 0.37 W x 0.47 H (27.4mm x 9.5mm x 12.0mm) | ||
|
B1215XT-2WR3DC DC CONVERTER 15V 2W |
2,992 | 5.42 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | B_XT-2WR3 (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 1.99 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
F1224XT-2WR3DC DC CONVERTER 24V 2W |
2,434 | 5.75 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | F_XT-2WR3 (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 1.99 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|

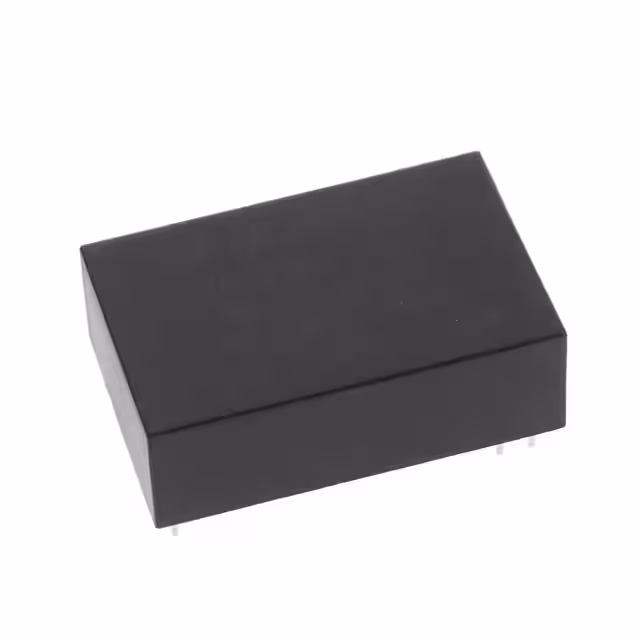

QA123D-2GR3DC DC CONVERTER FOR IGBT DRIVER |
3,126 | 32.00 |
RFQ |
Datasheet |
Through Hole | Tube | - | Active | Isolated Module | 2 | 10.8V | 13.2V | 24V | 24V | - | - | 100mA, 100mA | 5 W | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 88% | 24-DIP Module, 6 Leads | |||
|

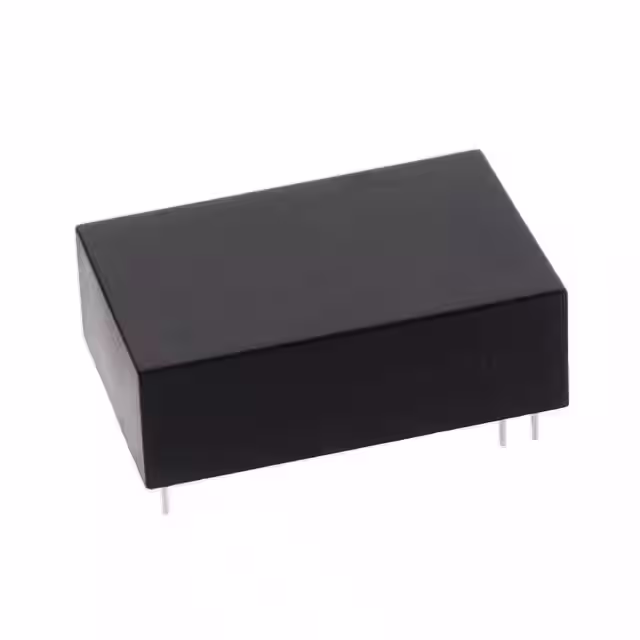

QA153D-2GR3DC DC CONVERTER FOR IGBT DRIVER |
3,578 | 26.00 |
RFQ |
Datasheet |
Through Hole | Tube | - | Active | Isolated Module | 2 | 13.5V | 16.5V | 24V | 24V | - | - | 100mA, 100mA | 5 W | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 88% | 24-DIP Module, 6 Leads | |||
|
F1515XT-1WR3DC DC CONVERTER 15V 1W |
2,872 | 5.86 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | F_XT-1WR3 (1W) | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
F2415S-2WR3DC DC CONVERTER 15V 1W |
3,458 | 5.91 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | F_S-2WR3 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 1.99 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|
F1224S-2WR3DC DC CONVERTER 24V 1W |
3,107 | 5.91 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | F_S-2WR3 (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 1.99 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|

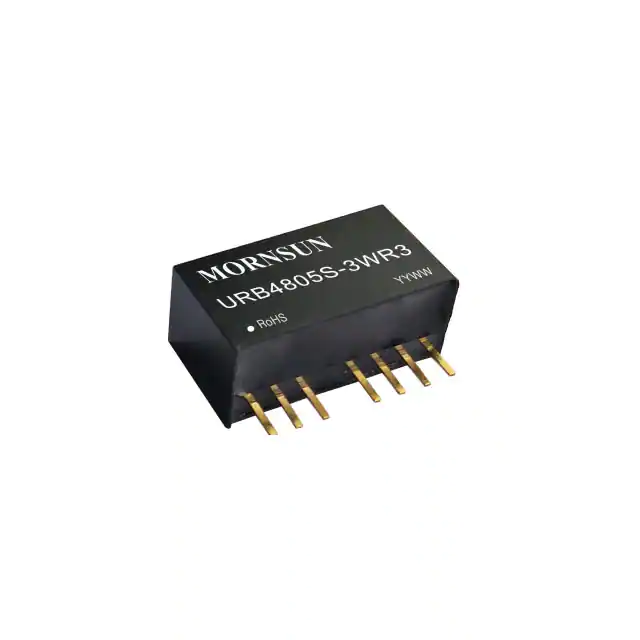

URB4805S-3WR3DC DC CONVERTER 5V 3W |
2,102 | 5.93 |
RFQ |
Datasheet |
8-SIP Module, 7 Leads | Tube | URB4805S-3WR3 (3W) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 77% | Through Hole | 0.87 L x 0.37 W x 0.47 H (22.0mm x 9.5mm x 12.0mm) | ||
|
E2412S-2WR3DC DC CONVERTER +/-12V 1W |
3,357 | 5.99 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | E_S-2WR3 (2W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 1.99 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|
F2424XT-2WR3DC DC CONVERTER 24V 2W |
3,003 | 6.12 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | F_XT-2WR3 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83mA | 1.99 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
F2412XT-2WR3DC DC CONVERTER 12V 2W |
3,876 | 6.12 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | F_XT-2WR3 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
F2415XT-2WR3DC DC CONVERTER 15V 2W |
2,046 | 6.12 |
RFQ |
Datasheet |
8-SMD Module, 5 Leads | Tube | F_XT-2WR3 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 1.99 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | Surface Mount | 0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm) | ||
|
|
E1205S-2WR3DC DC CONVERTER +/-5V 1W |
2,831 | 6.12 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | E_S-2WR3 (2W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|
E2415S-2WR3DC DC CONVERTER +/-15V 1W |
100 | 6.44 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | E_S-2WR3 (2W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) | ||
|
|
E1215S-2WR3DC DC CONVERTER +/-15V 1W |
100 | 6.44 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | E_S-2WR3 (2W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | Through Hole | 0.77 L x 0.28 W x 0.40 H (19.7mm x 7.1mm x 10.2mm) |
