| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JTL6024D12DC DC CONVERTER +/-12V 60W |
150 | 101.20 |
RFQ |
Datasheet |
6-DIP Module | Tube | JTL60 (60W) | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C | 91% | Through Hole | 2.00 L x 1.00 W x 0.45 H (50.8mm x 25.4mm x 11.4mm) | ||
|
Q02-24DC DC CONVERTER 200V 500MW |
114 | 107.59 |
RFQ |
Datasheet |
4-DIP Module | Box | XP EMCO - Q (0.5W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 24V | 200V | - | - | - | 2.5mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
AG05P-5DC DC CONVERTER 500V 1W |
3,628 | 112.37 |
RFQ |
Datasheet |
5-SMD Module | Box | XP EMCO - AG (1W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 500V | - | - | - | 2mA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | Surface Mount | 0.92 L x 0.45 W x 0.25 H (23.4mm x 11.4mm x 6.4mm) | ||
|
G05DC DC CONVERTER 500V 1.5W |
2,123 | 113.87 |
RFQ |
Datasheet |
4-DIP Module | Bulk | XP EMCO - G (1.5W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 500V | - | - | - | 3mA | 1.5 W | 3.5 kV | ITE (Commercial) | Proportional Output | -10°C ~ 60°C | - | Through Hole | 1.50 L x 1.50 W x 0.63 H (38.1mm x 38.1mm x 16.0mm) | ||
|

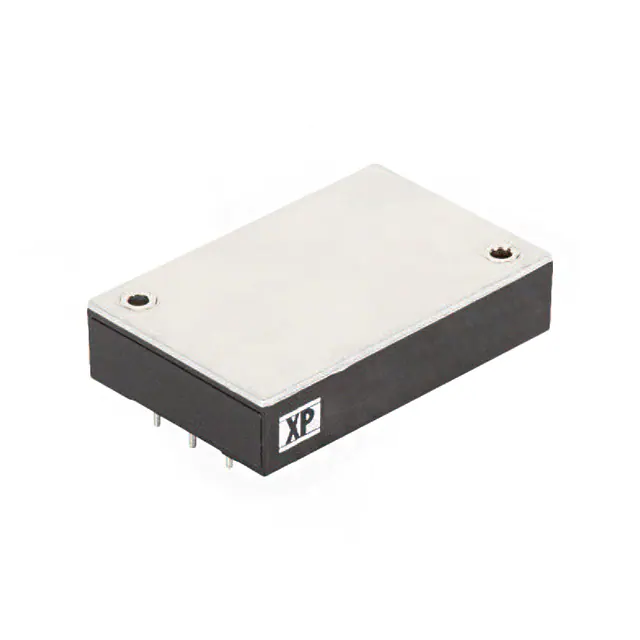

RDF5072WS24DC DC CONVERTER 24V 50W |
209 | 123.97 |
RFQ |
Datasheet |
Quarter Brick | Box | RDF50 (50W) | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 2.1A | 50 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 100°C | 89% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|
RDF5072WS48DC DC CONVERTER 48V 50W |
2,467 | 123.97 |
RFQ |
Datasheet |
Quarter Brick | Box | RDF50 (50W) | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 1.05A | 50 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 100°C | 88% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|
RDF5072WS12DC DC CONVERTER 12V 50W |
2,364 | 123.97 |
RFQ |
Datasheet |
Quarter Brick | Box | RDF50 (50W) | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 4.2A | 50 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 100°C | 87% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|
Q03-12DC DC CONVERTER 300V 500MW |
2,704 | 131.50 |
RFQ |
Datasheet |
4-DIP Module | Box | XP EMCO - Q (0.5W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 300V | - | - | - | 1.667mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
QSB10024S15DC DC CONVERTER 15V 100W |
2,120 | 135.41 |
RFQ |
Datasheet |
8-DIP Module | Box | QSB (100W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 6.7A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 86.5% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
ICH10024WS15DC DC CONVERTER 15V 100W |
3,154 | 137.28 |
RFQ |
Datasheet |
9-DIP Module | Box | ICH (200W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 6.7A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 86% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
QSB35048S12DC DC CONVERTER 12V 350W |
2,073 | 146.33 |
RFQ |
Datasheet |
9-DIP Module | Box | QSB (350W) | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 29.2A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 92.5% | Through Hole | 2.40 L x 2.28 W x 0.52 H (61.0mm x 57.9mm x 13.2mm) | ||
|
|
Q07-5DC DC CONVERTER 700V 500MW |
2,754 | 158.07 |
RFQ |
Datasheet |
4-DIP Module | Box | XP EMCO - Q (0.5W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 700V | - | - | - | 714µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
A12P-12DC DC CONVERTER 1200V 1W |
3,854 | 163.59 |
RFQ |
Datasheet |
5-DIP Module | Box | XP EMCO - A (1W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 1200V | - | - | - | 830µA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | Through Hole | 0.92 L x 0.45 W x 0.25 H (23.4mm x 11.4mm x 6.4mm) | ||
|
|
A15P-5DC DC CONVERTER 1500V 1W |
2,580 | 163.59 |
RFQ |
Datasheet |
5-DIP Module | Box | XP EMCO - A (1W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 1500V | - | - | - | 670µA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | Through Hole | 0.92 L x 0.45 W x 0.25 H (23.4mm x 11.4mm x 6.4mm) | ||
|
QSC15048S28DC DC CONVERTER 28V 151W |
2,935 | 167.59 |
RFQ |
Datasheet |
Quarter Brick | Box | QSC150 (150W) | Active | Isolated Module | 1 | 18V | 75V | 28V | - | - | - | 5.4A | 151 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 105°C | 90.5% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|
QSB20048S24DC DC CONVERTER 24V 200W |
2,086 | 182.07 |
RFQ |
Datasheet |
9-DIP Module | Box | QSB (200W) | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 8.3A | 200 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 88% | Through Hole | 2.40 L x 2.28 W x 0.52 H (61.0mm x 57.9mm x 13.2mm) | ||
|
|
Q12N-5DC DC CONVERTER -1200V 500MW |
2,835 | 184.63 |
RFQ |
Datasheet |
4-DIP Module | Box | XP EMCO - Q (0.5W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | -1200V | - | - | - | 417µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | Through Hole | 0.50 L x 0.50 W x 0.50 H (12.7mm x 12.7mm x 12.7mm) | ||
|
|
QSB15048WS28DC DC CONVERTER 28V 150W |
3,373 | 208.85 |
RFQ |
Datasheet |
9-DIP Module, 1/2 Brick | Bulk | QSB15048W (150W) | Active | Isolated Module | 1 | 9V | 75V | 28V | - | - | - | 5.35A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
GP50DC DC CONVERTER 5000V 1W |
2,924 | 212.46 |
RFQ |
Datasheet |
4-DIP Module | Bulk | XP EMCO - GP (1W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 5000V | - | - | - | 200µA | 1 W | 3.5 kV | ITE (Commercial) | Proportional Output | -20°C ~ 70°C | - | Through Hole | 1.50 L x 1.50 W x 0.63 H (38.1mm x 38.1mm x 16.0mm) | ||
|
AH20N-12DC DC CONVERTER -2000V 1.5W |
2,344 | 220.79 |
RFQ |
Datasheet |
5-DIP Module | Box | XP EMCO - AH (1.5W) | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | -2000V | - | - | - | 750µA | 1.5 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | Through Hole | 1.13 L x 0.45 W x 0.25 H (28.7mm x 11.4mm x 6.4mm) |
