| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PXG-M20-24WS15DC DC CONVERTER 15V 20W |
2,657 | 85.48 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.33A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-24WD12DC DC CONVERTER +/-12V 20W |
2,046 | 88.34 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88.5% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-48WD15DC DC CONVERTER +/-15V 20W |
3,728 | 88.34 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 677mA, 677mA | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-48WD12DC DC CONVERTER +/-12V 20W |
2,749 | 88.34 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88.5% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-24WD15DC DC CONVERTER 15V 15V 20W |
2,007 | 88.34 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 2 | 9V | 36V | 15V | 15V | - | - | 677mA, 677mA | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-24WS05DC DC CONVERTER 5V 20W |
2,793 | 89.21 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88.5% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-48WD05DC DC CONVERTER +/-5V 20W |
3,560 | 91.81 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 2A, 2A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 86% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-24WD05DC DC CONVERTER +/-5V 20W |
2,956 | 91.81 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 2A, 2A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 86% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
PXD-M30-24WS24DC DC CONVERTER 24V 30W |
3,653 | 110.17 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD-M (30W) | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 1.25A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89.5% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
PXD-M30-48WS15DC DC CONVERTER 15V 30W |
2,134 | 110.17 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD-M (30W) | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 2A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 90% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
PXD-M30-48WS24DC DC CONVERTER 24V 30W |
2,898 | 110.17 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD-M (30W) | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 1.25A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
PXD-M30-48WD15DC DC CONVERTER +/-15V 30W |
2,067 | 113.02 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD-M (30W) | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 1A, 1A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89.5% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
PXD-M30-48WS05DC DC CONVERTER 5V 30W |
3,197 | 115.14 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD-M (30W) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 6A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|

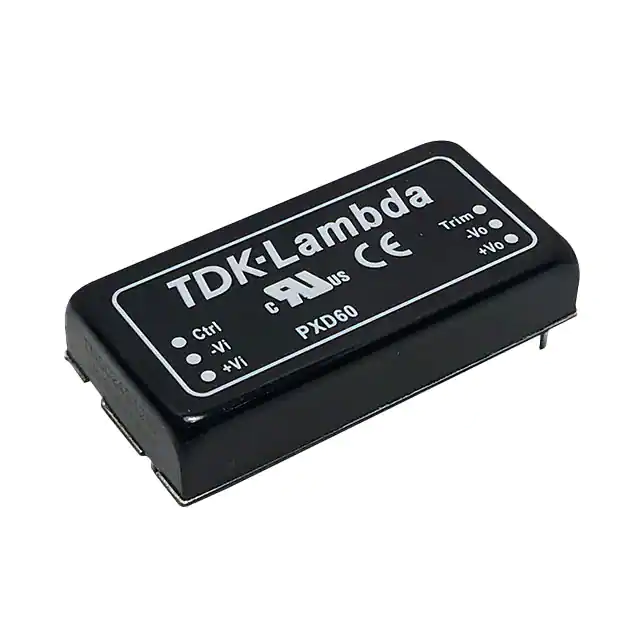

PXD60-24WS12DC DC CONVERTER 12V 60W |
2,672 | 115.21 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD60 (60W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 92% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
PXD-M30-48WD05DC DC CONVERTER +/-5V 30W |
3,883 | 117.40 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD-M (30W) | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 3A, 3A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 86.5% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
CN200B110-15DC-DC, PCB MOUNT, HALF BRICK, IN |
3,253 | 122.13 |
RFQ |
Datasheet |
Half Brick | Bulk | CN-B110 (200W) | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 13.4A | 201 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CN200B110-24DC-DC, PCB MOUNT, HALF BRICK, IN |
3,105 | 122.13 |
RFQ |
Datasheet |
Half Brick | Bulk | CN-B110 (200W) | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 8.4A | 202 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
PXD60-24WS05DC DC CONVERTER 5V 60W |
2,223 | 126.60 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD60 (60W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 92% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
CN300B110-15DC-DC, PCB MOUNT, HALF BRICK, IN |
3,433 | 159.54 |
RFQ |
Datasheet |
Half Brick | Bulk | CN-B110 (300W) | Active | Isolated Module | 1 | 43V | 160V | 15V | - | - | - | 20A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CN300B110-12DC-DC, PCB MOUNT, HALF BRICK, IN |
2,008 | 159.54 |
RFQ |
Datasheet |
Half Brick | Bulk | CN-B110 (300W) | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 25A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense | -40°C ~ 100°C | 89.5% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) |
