| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRS-2412DC DC CONVERTER 12V 504MW |
3,863 | 5.75 |
RFQ |
Datasheet |
16-DIP Module, 8 Leads | Tube | SRS (0.5W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 42mA | 504 mW | 1 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 71°C (With Derating) | 60% | Through Hole | 0.89 L x 0.39 W x 0.33 H (22.6mm x 9.9mm x 8.4mm) | ||
|
|
SRS-4812DC DC CONVERTER 12V 504MW |
3,123 | 5.75 |
RFQ |
Datasheet |
16-DIP Module, 8 Leads | Tube | SRS (0.5W) | Active | Isolated Module | 1 | 43.2V | 52.8V | 12V | - | - | - | 42mA | 504 mW | 1 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 71°C (With Derating) | 60% | Through Hole | 0.89 L x 0.39 W x 0.33 H (22.6mm x 9.9mm x 8.4mm) | ||
|
SFTN01M-12DC DC CONVERTER 12V 1W |
2,445 | 5.94 |
RFQ |
Datasheet |
12-SMD Module, 10 Leads | - | SFTN01 (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 82% | Surface Mount | 0.60 L x 0.42 W x 0.28 H (15.2mm x 10.7mm x 7.1mm) | ||
|
SMU02N-05DC DC CONVERTER 5V 2W |
3,580 | 5.94 |
RFQ |
Datasheet |
4-SIP Module | Tube | SMU02 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 80% | Through Hole | 0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.1mm) | ||
|
|
SMU02N-15DC DC CONVERTER 15V 2W |
3,702 | 5.94 |
RFQ |
Datasheet |
4-SIP Module | Tube | SMU02 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 84% | Through Hole | 0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.1mm) | ||
|
|
SFTN01M-05DC DC CONVERTER 5V 1W |
3,770 | 5.94 |
RFQ |
Datasheet |
12-SMD Module, 10 Leads | - | SFTN01 (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 75% | Surface Mount | 0.60 L x 0.42 W x 0.28 H (15.2mm x 10.7mm x 7.1mm) | ||
|
|
SFTN01N-05DC DC CONVERTER 5V 1W |
2,166 | 5.94 |
RFQ |
Datasheet |
12-SMD Module, 10 Leads | - | SFTN01 (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 77% | Surface Mount | 0.60 L x 0.42 W x 0.28 H (15.2mm x 10.7mm x 7.1mm) | ||
|

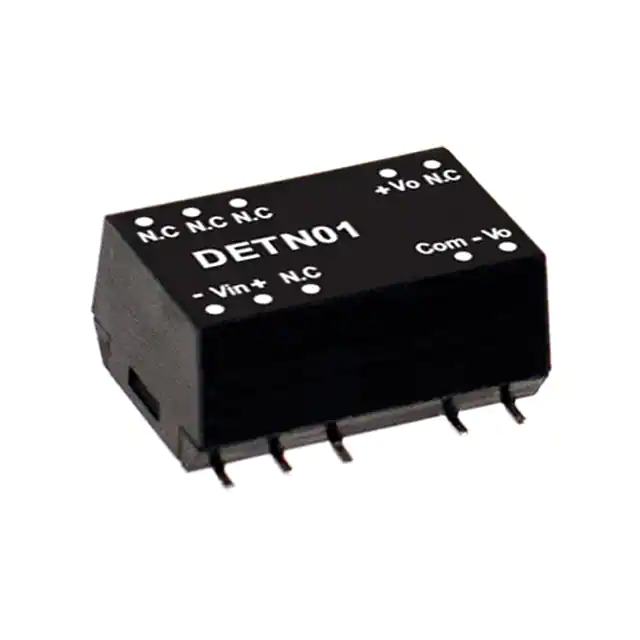

DETN01N-15DC DC CONVERTER +/-15V 1W |
2,346 | 6.49 |
RFQ |
Datasheet |
12-SMD Module, 10 Leads | Tube | DETN01 (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | Surface Mount | 0.60 L x 0.42 W x 0.28 H (15.2mm x 10.7mm x 7.1mm) | ||
|
|
DETN01L-05DC DC CONVERTER +/-5V 1W |
3,119 | 6.49 |
RFQ |
Datasheet |
12-SMD Module, 10 Leads | - | DETN01 (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | Surface Mount | 0.60 L x 0.42 W x 0.28 H (15.2mm x 10.7mm x 7.1mm) | ||
|
MDS02N-05DC DC CONVERTER 5V 2W |
3,320 | 6.68 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | MDS02 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 80% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
|
MDS02N-12DC DC CONVERTER 12V 2W |
3,243 | 6.68 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | MDS02 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 83% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
MDD01N-12DC DC CONVERTER +/-12V 1W |
3,474 | 6.31 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MDD01 (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 77% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
|
MDD01M-05DC DC CONVERTER +/-5V 1W |
2,742 | 6.31 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MDD01 (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 78% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
|
MDD01M-09DC DC CONVERTER +/-9V 1W |
2,141 | 6.31 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MDD01 (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 82% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
|
MDD01L-05DC DC CONVERTER +/-5V 1W |
2,794 | 6.31 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MDD01 (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 79% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
|
MDD01L-12DC DC CONVERTER +/-12V 1W |
2,449 | 6.31 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MDD01 (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 77% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
|
MDD01L-15DC DC CONVERTER +/-15V 1W |
2,327 | 6.31 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MDD01 (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 77% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
|
MDD01M-12DC DC CONVERTER +/-12V 1W |
3,337 | 6.31 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MDD01 (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 75% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
|
MDD01N-15DC DC CONVERTER +/-15V 1W |
3,224 | 6.31 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MDD01 (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 77% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) | ||
|
MDS01L-12DC DC CONVERTER 12V 1W |
2,300 | 6.31 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | MDS01 (1W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 77% | Through Hole | 0.77 L x 0.39 W x 0.49 H (19.5mm x 9.8mm x 12.5mm) |
