| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MX7534KP+TIC DAC 14BIT A-OUT 20PLCC |
2,581 | 46.44 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Tape & Reel (TR) | - | Active | 14 | 1 | 1.5µs | Current - Unbuffered | No | Parallel | External | 11.4V ~ 15.75V | 11.4V ~ 15.75V | ±1 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
MAX5890EGK+DIC DAC 14BIT LVDS 600MSPS 68-QFN |
2,785 | 47.28 |
RFQ |
Datasheet |
68-VFQFN Exposed Pad | Tube | - | Active | 14 | 1 | 11µs (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | ±1, ±0.5 | Current Steering | -40°C ~ 85°C |
|
MAX5774UTK+IC DAC 14BIT V-OUT 68TQFN |
2,517 | 47.57 |
RFQ |
Datasheet |
68-WFQFN Exposed Pad | Tube | - | Active | 14 | 32 | 20µs (Typ) | Voltage - Buffered | No | SPI, DSP | External | 5V | 2.7V ~ 5.25V | ±1, ±1 (Max) | Pipelined | 0°C ~ 85°C |
|
MAX536AEWE+IC DAC 12BIT V-OUT 16SOIC |
3,660 | 47.65 |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | SPI | External | 10.8V ~ 13.2V, -5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
MAX5887EGK+TDIC DAC 14BIT A-OUT 68QFN |
2,765 | 47.87 |
RFQ |
Datasheet |
68-VFQFN Exposed Pad | Tape & Reel (TR) | - | Active | 14 | 1 | 11µs (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.135V ~ 3.465V | 3.135V ~ 3.465V | ±0.8, ±0.5 | Current Steering | -40°C ~ 85°C |
|
MAX525AEPP+IC DAC 12BIT V-OUT 20DIP |
3,597 | 48.00 |
RFQ |
Datasheet |
20-DIP (0.300, 7.62mm) | Tube | - | Active | 12 | 4 | 12µs (Typ) | Voltage - Buffered | No | SPI | External | 5V | 5V | ±0.25, ±1 (Max) | R-2R | -40°C ~ 85°C |
|
MAX547BCMH+IC DAC 13BIT V-OUT 44MQFP |
3,997 | 49.20 |
RFQ |
Datasheet |
44-QFP | Tube | - | Active | 13 | 8 | 5µs (Typ) | Voltage - Buffered | No | Parallel | External | ±5V | - | ±0.5, ±1 (Max) | R-2R | 0°C ~ 70°C |
|
|
MAX5887EGK+DIC DAC 14BIT A-OUT 68QFN |
2,963 | 50.36 |
RFQ |
Datasheet |
68-VFQFN Exposed Pad | Tube | - | Active | 14 | 1 | 11µs (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.135V ~ 3.465V | 3.135V ~ 3.465V | ±0.8, ±0.5 | Current Steering | -40°C ~ 85°C |
|
MAX537AEPE+IC DAC 12BIT V-OUT 16DIP |
3,111 | 50.54 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | 12 | 4 | 5µs (Typ) | Voltage - Buffered | No | SPI | External | ±5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
MAX547BEMH+IC DAC 13BIT V-OUT 44MQFP |
3,376 | 54.81 |
RFQ |
Datasheet |
44-QFP | Tray | - | Active | 13 | 8 | 5µs (Typ) | Voltage - Buffered | No | Parallel | External | ±5V | - | ±0.5, ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
MAX5888EGK+TDIC DAC 16BIT A-OUT 68QFN |
3,846 | 55.89 |
RFQ |
Datasheet |
68-VFQFN Exposed Pad | Tape & Reel (TR) | - | Active | 16 | 1 | 11µs (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 3.135V ~ 3.465V | 3.135V ~ 3.465V | - | Current Steering | -40°C ~ 85°C |
|

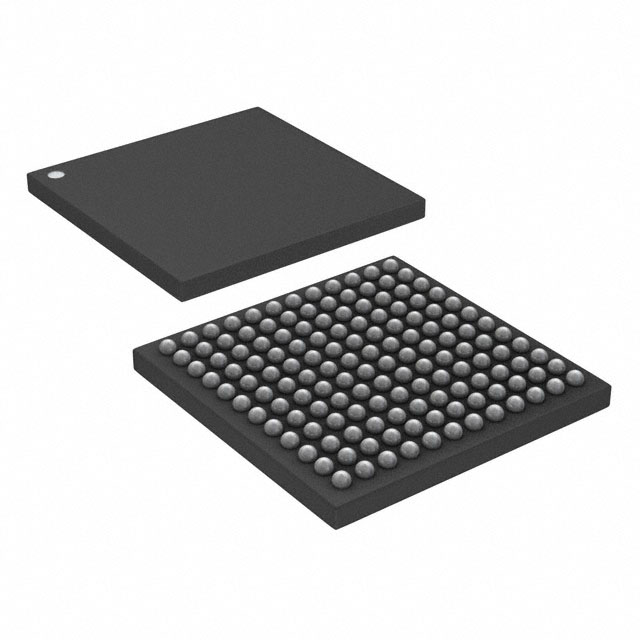

MAX5871EXE+IC DAC 16BIT A-OUT 144FCCSP |
3,807 | 55.92 |
RFQ |
Datasheet |
144-LFBGA, FCCSPBGA | Tray | - | Active | 16 | 1 | 20ns (Typ) | Current - Unbuffered | Yes | SPI | External, Internal | 0.95V ~ 1.05V, 1.71V ~ 1.89V | 0.95V ~ 1.05V, 1.71V ~ 1.89V | ±3, ±1.5 | Current Steering | -40°C ~ 85°C |
|
|
MAX536AEPE+IC DAC 12BIT V-OUT 16DIP |
2,066 | 56.14 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | 12 | 4 | 3µs (Typ) | Voltage - Buffered | No | SPI | External | 10.8V ~ 13.2V, -5V | - | ±0.15, ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
MAX5891EGK+TDIC DAC 16BIT A-OUT 68QFN |
3,836 | 56.22 |
RFQ |
Datasheet |
68-VFQFN Exposed Pad | Tape & Reel (TR) | - | Active | 16 | 1 | 11µs (Typ) | Current - Unbuffered | Yes | LVDS - Parallel | External, Internal | 1.71V ~ 1.89V, 3.135V ~ 3.465V | 1.71V ~ 1.89V, 3.135V ~ 3.465V | ±3.8, ±2.8 | Current Steering | -40°C ~ 85°C |
|
MAX5632UCB+DIC DAC 16BIT V-OUT 64LQFP |
2,817 | 57.39 |
RFQ |
Datasheet |
64-LQFP | Tray | - | Obsolete | 16 | 32 | - | Voltage - Buffered | No | SPI | External | 8.55V ~ 11.6V, -2.75V ~ -5.25V | 5V | -, ±1 | R-2R | 0°C ~ 85°C |
|
|
MAX547ACMH+IC DAC 13BIT V-OUT 44MQFP |
2,468 | 58.90 |
RFQ |
Datasheet |
44-QFP | Tray | - | Active | 13 | 8 | 5µs (Typ) | Voltage - Buffered | No | Parallel | External | ±5V | - | ±0.5, ±1 (Max) | R-2R | 0°C ~ 70°C |
|
|
MAX547ACMH+DIC DAC 13BIT V-OUT 44MQFP |
2,688 | 58.90 |
RFQ |
Datasheet |
44-QFP | Tray | - | Active | 13 | 8 | 5µs (Typ) | Voltage - Buffered | No | Parallel | External | ±5V | - | ±0.5, ±1 (Max) | R-2R | 0°C ~ 70°C |
|
|
MAX5633UCB+TDIC DAC 16BIT V-OUT 64LQFP |
750 | 56.01 |
RFQ |
Datasheet |
64-LQFP | Tape & Reel (TR),Bulk | - | Active | 16 | 32 | - | Voltage - Buffered | No | SPI | External | 8.55V ~ 11.6V, -2.75V ~ -5.25V | 5V | -, ±1 | R-2R | 0°C ~ 85°C |
|
MAX5734BUTN+IC DAC 16BIT V-OUT 56TQFN |
2,769 | 102.92 |
RFQ |
Datasheet |
56-WFQFN Exposed Pad | Tube | - | Active | 16 | 32 | 20µs (Typ) | Voltage - Buffered | No | SPI, DSP | External | 5V | 2.7V ~ 5.25V | ±8, ±1 (Max) | Pipelined | 0°C ~ 85°C |
|
|
MAX5732BUTN+TIC DAC 16BIT 56TQFN |
2,783 | 105.47 |
RFQ |
Datasheet |
56-WFQFN Exposed Pad | Tape & Reel (TR) | - | Active | 16 | 32 | 20µs (Typ) | Voltage - Buffered | No | SPI, DSP | External | 4.75V ~ 5.25V | 2.7V ~ 5.25V | ±8, ±1 (Max) | Pipelined | 0°C ~ 85°C |
