Data Acquisition - Digital to Analog Converters (DAC)(12303)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLV5623CDGKIC DAC 8BIT V-OUT 8VSSOP |
130 | 3.89 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | - | Active | 8 | 1 | 20µs | Voltage - Buffered | No | SPI | External | 2.7V ~ 3.3V, 5V | 2.7V ~ 3.3V, 5V | ±0.3, ±0.07 | String DAC | 0°C ~ 70°C |
|
DAC7563SDSCTIC DAC 12BIT V-OUT 10WSON |
479 | 7.33 |
RFQ |
Datasheet |
10-WFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 2 | 10µs (Typ) | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.3, ±0.05 | String DAC | -40°C ~ 125°C |
|
MCP47FEB18T-E/MQOCTAL CHANNEL, 10-BIT, EEPROM, I |
3,298 | 7.49 |
RFQ |
Datasheet |
20-VQFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | MCP | Active | 10 | 8 | 7.8µs (Typ) | Voltage - Buffered, Voltage - Unbuffered | No | I²C | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.1, ±0.0125 | R-2R | -55°C ~ 125°C |
|
|
MCP48FEB14-E/MQQUAD CHANNEL, 10-BIT, EEPROM, SP |
142 | 5.84 |
RFQ |
Datasheet |
20-VQFN Exposed Pad | Tube | Automotive, AEC-Q100 | Active | 10 | 4 | 7.8µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4LSB, ±0.05LSB | - | -40°C ~ 125°C |
|
LTC1663-8IMS8#PBFIC DAC 10BIT V-OUT 8MSOP |
156 | 6.94 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | - | Active | 10 | 1 | 30µs (Typ) | Voltage - Buffered | No | I²C | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.2 | - | -40°C ~ 85°C |
|
MAX5521ETC+IC DAC 10BIT V-OUT 12TQFN |
146 | 6.28 |
RFQ |
Datasheet |
12-WQFN Exposed Pad | Tube | - | Active | 10 | 1 | 660µs (Typ) | Voltage - Buffered | No | SPI | Internal | 1.8V ~ 5.5V | 1.8V ~ 5.5V | ±1, ±0.2 | Current Source | -40°C ~ 85°C |
|
MAX5187BEEG+IC DAC 8BIT A-OUT 24QSOP |
111 | 7.00 |
RFQ |
Datasheet |
24-SSOP (0.154, 3.90mm Width) | Tube | - | Active | 8 | 1 | 25ns (Typ) | Current - Unbuffered | Yes | Parallel | External, Internal | 2.7V ~ 3.3V | 2.7V ~ 3.3V | ±0.25, ±0.25 | Current Steering | -40°C ~ 85°C |
|
TLC5615IPIC DAC 10BIT V-OUT 8DIP |
474 | 7.07 |
RFQ |
Datasheet |
8-DIP (0.300, 7.62mm) | Tube | - | Active | 10 | 1 | 12.5µs (Typ) | Voltage - Buffered | No | SPI | External | 5V | 5V | ±1 (Max), ±0.1 | String DAC | -40°C ~ 85°C |
|
MAX5120AEEE+IC DAC 12BIT V-OUT 16QSOP |
125 | 11.07 |
RFQ |
Datasheet |
16-SSOP (0.154, 3.90mm Width) | Tube | - | Active | 12 | 1 | 20µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
MCP48FEB28-E/MQOCTAL CHANNEL, 12-BIT, EEPROM, S |
227 | 12.26 |
RFQ |
Datasheet |
20-VQFN Exposed Pad | Tube | Automotive, AEC-Q100 | Active | 12 | 4 | 7.8µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4LSB, ±0.05LSB | - | -40°C ~ 125°C |
|
MAX521BCAG+IC DAC 8BIT V-OUT 24SSOP |
164 | 12.73 |
RFQ |
Datasheet |
24-SSOP (0.209, 5.30mm Width) | Tube | - | Active | 8 | 8 | 6µs (Typ) | Voltage - Buffered | No | I²C | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
AD557JPZ-REEL7IC DAC 8BIT V-OUT 20PLCC |
1,158 | 20.77 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Tape & Reel (TR),Cut Tape (CT) | DACPORT® | Active | 8 | 1 | 1.5µs | Voltage - Unbuffered | No | Parallel | Internal | 5V | 5V | ±0.5, - | R-2R | 0°C ~ 70°C |
|
MAX5580BEUP+IC DAC 12BIT V-OUT 20TSSOP |
126 | 13.65 |
RFQ |
Datasheet |
20-TSSOP (0.173, 4.40mm Width) | Tube | - | Not For New Designs | 12 | 4 | 6µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.25V | 1.8V ~ 5.25V | ±2, ±1 (Max) | R-2R | -40°C ~ 85°C |
|
MAX552ACUB+IC DAC 12BIT A-OUT 10UMAX |
915 | 15.18 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tube | - | Active | 12 | 1 | 1µs | Current - Unbuffered | No | SPI | External | 2.7V ~ 3.6V | 2.7V ~ 3.6V | ±0.5 (Max), ±0.5 (Max) | R-2R | 0°C ~ 70°C |
|
LTC1454CN#PBFIC DAC 12BIT V-OUT 16DIP |
262 | 18.08 |
RFQ |
Datasheet |
16-DIP (0.300, 7.62mm) | Tube | - | Active | 12 | 2 | 14µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 5V | 5V | ±2.5, ±0.5 (Max) | R-2R | 0°C ~ 70°C |
|
AD7528JRZ-REEL7IC DAC 8BIT A-OUT 20SOIC |
800 | 24.08 |
RFQ |
Datasheet |
20-SOIC (0.295, 7.50mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 8 | 2 | 400ns | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|
|
MX7545AKEWP+IC DAC 12BIT A-OUT 20SOIC |
111 | 16.28 |
RFQ |
Datasheet |
20-SOIC (0.295, 7.50mm Width) | Tube | - | Active | 12 | 1 | 1µs | Current - Unbuffered | No | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
|

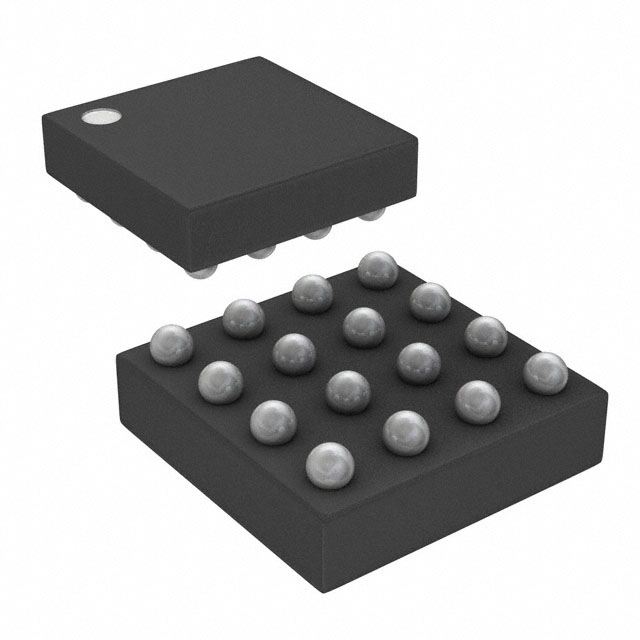

DAC70508MYZFTIC DAC 14BIT V-OUT 16DSBGA |
250 | 21.36 |
RFQ |
Datasheet |
16-UFBGA, DSBGA | Tape & Reel (TR),Cut Tape (CT) | - | Active | 14 | 8 | 5µs (Typ) | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 1.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 125°C (TA) |
|
MAX521BCPP+IC DAC 8BIT V-OUT 20DIP |
149 | 16.88 |
RFQ |
Datasheet |
20-DIP (0.300, 7.62mm) | Tube | - | Active | 8 | 8 | 6µs (Typ) | Voltage - Buffered | No | I²C | External | 5V | 5V | ±2 (Max), ±1 (Max) | R-2R | 0°C ~ 70°C |
|
MAX5590AEUG+IC DAC 12BIT V-OUT 24TSSOP |
2,726 | 17.01 |
RFQ |
Datasheet |
24-TSSOP (0.173, 4.40mm Width) | Tube | - | Active | 12 | 8 | 6µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.25V | 1.8V ~ 5.25V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C |
