| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC1661IMS8#PBFIC DAC 10BIT V-OUT 8MSOP |
2,772 | 6.43 |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | - | Active | 10 | 2 | 30µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.4, ±0.1 | Oversampling Interpolating DAC | -40°C ~ 85°C |
|
AD5683RACPZ-RL7IC DAC 16BIT V-OUT 8LFCSP |
3,190 | 8.55 |
RFQ |
8-UFDFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | nanoDAC+® | Active | 16 | 1 | 7µs | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | |
|
|
AD5683RACPZ-1RL7IC DAC 16BIT V-OUT 8LFCSP |
3,044 | 8.55 |
RFQ |
8-UFDFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | nanoDAC+® | Active | 16 | 1 | 7µs | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 1.8V ~ 5.5V | ±8 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | |
|
AD5443YRMZ-REEL7IC DAC 12BIT A-OUT 10MSOP |
2,657 | 8.65 |
RFQ |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 12 | 1 | 160ns | Current - Unbuffered | Yes | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±1 (Max), -1/+2 (Max) | R-2R | -40°C ~ 125°C | |
|
AD5452YRMZ-REEL7IC DAC 12BIT A-OUT 8MSOP |
3,441 | 8.65 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 1 | 110ns | Current - Unbuffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C | |
|
|
AD5627RBRMZ-1REEL7IC DAC 12BIT V-OUT 10MSOP |
3,635 | 8.80 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | nanoDAC® | Active | 12 | 2 | 4.5µs | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.25 (Max) | String DAC | -40°C ~ 105°C |
|
|
AD5444YRMZ-REEL7IC DAC 12BIT A-OUT 10MSOP |
2,409 | 9.01 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 12 | 1 | 110ns | Current - Unbuffered | Yes | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C |
|
AD5320BRTZ-REEL7IC DAC 12BIT V-OUT SOT23-6 |
3,143 | 1.00 |
RFQ |
SOT-23-6 | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±16 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | |
|
LTC2601IDD#TRPBFIC DAC 16BIT V-OUT 10DFN |
2,487 | 9.11 |
RFQ |
Datasheet |
10-WFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | 16 | 1 | 10µs (Typ) | Voltage - Buffered | No | SPI | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±13, ±1 (Max) | - | -40°C ~ 85°C |
|
AD5647RBCPZ-REEL7IC DAC 14BIT V-OUT 10LFCSP |
3,576 | 1.00 |
RFQ |
Datasheet |
10-VFDFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | nanoDAC® | Active | 14 | 2 | 5µs | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±0.5 (Max) | String DAC | -40°C ~ 105°C |
|
|
AD5312BRMZ-REEL7IC DAC 10BIT V-OUT 10MSOP |
2,859 | 1.00 |
RFQ |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 10 | 2 | 9µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5, ±0.05 | String DAC | -40°C ~ 105°C | |
|
LTC1664CGN#TRPBFIC DAC 10BIT V-OUT 16SSOP |
3,254 | 9.33 |
RFQ |
Datasheet |
16-SSOP (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 10 | 4 | 19µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.6, ±0.2 | Oversampling Interpolating DAC | 0°C ~ 70°C |
|
|
AD5314ARMZ-REEL7IC DAC 10BIT V-OUT 10MSOP |
3,572 | 1.00 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 10 | 4 | 9µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5, ±0.05 | String DAC | -40°C ~ 105°C |
|
AD5413BCPZ-RL71 CHANNEL;14-BIT 4-TO-20 MA AND |
2,096 | 9.41 |
RFQ |
Datasheet |

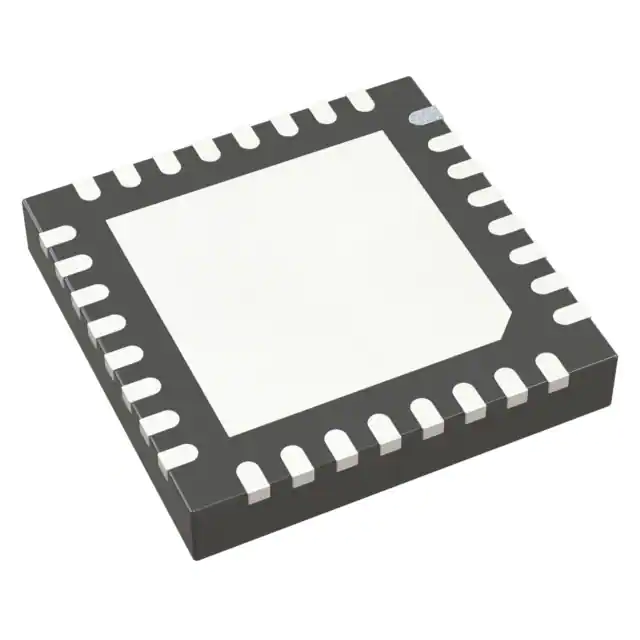

32-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | AD5413 | Active | 14 | 1 | 20µs | Voltage or Current - Unbuffered | No | DSP, MICROWIRE™, QSPI™, SPI™ | External, Internal | 4.5V ~ 33V, 7V ~ 33V | 33V | ±0.12, ±1 (Max) | R-2R | -40°C ~ 105°C |
|
|
LTC1665CGN#TRPBFIC DAC 8BIT V-OUT 16SSOP |
3,766 | 9.51 |
RFQ |
Datasheet |
16-SSOP (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | 8 | 8 | 30µs (Typ) | Voltage - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.2, ±0.1 | Oversampling Interpolating DAC | 0°C ~ 70°C |
|
|
LTC2606IDD#TRPBFIC DAC 16BIT V-OUT 10DFN |
2,542 | 9.54 |
RFQ |
Datasheet |
10-WFDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | 16 | 1 | 10µs (Typ) | Voltage - Buffered | No | I²C | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±14, ±1 (Max) | - | -40°C ~ 85°C |
|
|
AD5320BRMZ-REEL7IC DAC 12BIT V-OUT 8MSOP |
2,924 | 1.00 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±16 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | |
|
|
AD5683RBCPZ-1RL7IC DAC 16BIT V-OUT 8LFCSP |
2,853 | 9.86 |
RFQ |
8-UFDFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT) | nanoDAC+® | Active | 16 | 1 | 7µs | Voltage - Buffered | No | SPI | External, Internal | 2.7V ~ 5.5V | 1.8V ~ 5.5V | ±3 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C | |
|
|
AD5662BRMZ-1REEL7IC DAC 16BIT V-OUT 8MSOP |
3,290 | 9.89 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | nanoDAC® | Active | 16 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±8, ±1 (Max) | String DAC | -40°C ~ 125°C | |
|
|
AD5693RBRMZ-RL7IC DAC 16BIT V-OUT 10MSOP |
3,586 | 10.09 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT) | nanoDAC+® | Active | 16 | 1 | 7µs | Voltage - Buffered | No | I²C | External, Internal | 2.7V ~ 5.5V | 1.8V ~ 5.5V | ±3 (Max), ±1 (Max) | String DAC | -40°C ~ 105°C |
