| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD5765BSUZ-REEL7IC DAC 16BIT V-OUT 32TQFP |
3,712 | 0.00 |
RFQ |
Datasheet |
32-TQFP | Tape & Reel (TR) | iCMOS® | Obsolete | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 2.7V ~ 5.25V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 105°C |
|
AD5314BRM-REEL7IC DAC 10BIT V-OUT 10MSOP |
2,769 | 5.87 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Bulk | - | Obsolete | 10 | 4 | 9µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5, ±0.05 | String DAC | -40°C ~ 105°C |
|
AD5544ACPZ-1-R2IC DAC 16BIT A-OUT 32LFCSP |
2,053 | 22.35 |
RFQ |
32-WFQFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Discontinued at Mosen | 16 | 4 | 900ns (Typ) | Current - Unbuffered | No | SPI | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±4 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C | |
|
AD5045BRUZ-REEL7IC DAC 14BIT V-OUT 14TSSOP |
2,794 | 0.00 |
RFQ |
14-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR) | nanoDAC® | Obsolete | 14 | 2 | 13µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 5V | ±0.1, ±0.2 | R-2R | -40°C ~ 125°C | |
|
AD5338BRMZ-1REEL7IC DAC 10BIT V-OUT 8MSOP |
2,834 | 1.00 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Bulk | - | Obsolete | 10 | 2 | 9µs | Voltage - Buffered | No | I²C | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5, ±0.05 | String DAC | -40°C ~ 105°C | |
|
|
AD5648BRUZ-1REEL7IC DAC 14BIT V-OUT 14TSSOP |
3,788 | 0.00 |
RFQ |
Datasheet |
14-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR) | nanoDAC® | Obsolete | 14 | 8 | 7µs | Voltage - Buffered | No | SPI, DSP | External, Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±2, ±0.5 (Max) | String DAC | -40°C ~ 105°C |
|
AD5547CRUZ-REEL7IC DAC 16BIT A-OUT 38TSSOP |
2,437 | 0.00 |
RFQ |
Datasheet |
38-TFSOP (0.173, 4.40mm Width) | Tape & Reel (TR) | - | Obsolete | 16 | 2 | 500ns (Typ) | Current - Unbuffered | No | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C |
|
AD5066ARUZ-REEL7IC DAC 16BIT V-OUT 16TSSOP |
980 | 16.37 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Bulk | nanoDAC® | Obsolete | 16 | 4 | 15µs | Voltage - Unbuffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.2 | R-2R | -40°C ~ 125°C |
|
|
AD5063BRMZ-1-REEL7IC DAC 16BIT V-OUT 10MSOP |
2,822 | 0.00 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR) | nanoDAC® | Obsolete | 16 | 1 | 1µs | Voltage - Unbuffered | No | SPI, DSP | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±0.5, ±0.5 | R-2R | -40°C ~ 85°C |
|
AD7524SR-EP-RL7IC DAC 8BIT A-OUT 16SOIC |
7,000 | 19.64 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Bulk | - | Obsolete | 8 | 1 | 500ns | Current - Unbuffered | Yes | Parallel | External | 5V ~ 15V | 5V ~ 15V | ±0.5 (Max), - | R-2R | -55°C ~ 125°C |
|
|
AD5453YRM-REEL7IC DAC 14BIT A-OUT 8MSOP |
1,902 | 6.82 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Bulk | - | Obsolete | 14 | 1 | 110ns | Current - Unbuffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±2 (Max), -1/+2 (Max) | R-2R | -40°C ~ 125°C | |
|
|
AD5764ASUZ-REEL7IC DAC 16BIT V-OUT 32TQFP |
2,799 | 0.00 |
RFQ |
32-TQFP | Tape & Reel (TR) | iCMOS® | Obsolete | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | ±11.4V ~ 16.5V | 2.7V ~ 5.25V | ±4 (Max), ±1 (Max) | R-2R | -40°C ~ 85°C | |
|
AD5620BCPZ-1RL7IC DAC 12BIT V-OUT 8LFCSP-WD |
3,800 | 0.00 |
RFQ |
8-WDFN, CSP | Tape & Reel (TR),Bulk | nanoDAC® | Active | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 2.7V ~ 3.3V | 2.7V ~ 3.3V | ±1 (Max), ±0.25 (Max) | String DAC | -40°C ~ 105°C | |
|
|
AD5620BCPZ-2RL7IC DAC 12BIT V-OUT 8LFCSP-WD |
2,375 | 2.87 |
RFQ |
8-WDFN, CSP | Tape & Reel (TR),Bulk | nanoDAC® | Active | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±1 (Max), ±0.25 (Max) | String DAC | -40°C ~ 105°C | |
|
|
AD5640BCPZ-1RL7IC DAC 14BIT V-OUT 8LFCSP |
3,328 | 0.00 |
RFQ |
8-WDFN, CSP | Tape & Reel (TR),Bulk | nanoDAC® | Active | 14 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 2.7V ~ 3.3V | 2.7V ~ 3.3V | ±4 (Max), ±0.5 (Max) | String DAC | -40°C ~ 105°C | |
|
|
AD5640BCPZ-2RL7IC DAC 14BIT V-OUT 8LFCSP |
217 | 3.96 |
RFQ |
8-WDFN, CSP | Tape & Reel (TR),Bulk | nanoDAC® | Obsolete | 14 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±4 (Max), ±0.5 (Max) | String DAC | -40°C ~ 105°C | |
|
|
AD5680BCPZ-2RL7IC DAC 18BIT V-OUT 8LFCSP-WD |
3,240 | 0.00 |
RFQ |
Datasheet |
8-WDFN, CSP | Tape & Reel (TR) | nanoDAC® | Active | 18 | 1 | 85µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 5V | ±32, ±2 (Max) | String DAC | -40°C ~ 105°C |
|

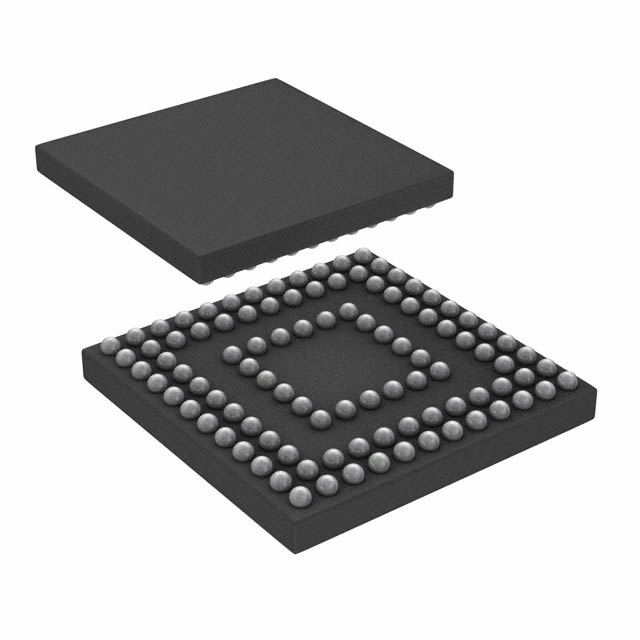

AD5384BBCZ-5REEL7IC DAC 14BIT V-OUT 100CSBGA |
2,216 | 0.00 |
RFQ |
Datasheet |
100-LFBGA, CSPBGA | Tape & Reel (TR) | denseDAC | Obsolete | 14 | 40 | 8µs | Voltage - Buffered | No | I²C, SPI, DSP | External, Internal | 5V | 2.7V ~ 5.5V | ±4 (Max), -1/+2 (Max) | String DAC | -40°C ~ 85°C |
|
ADV7125WBCPZ170-RLIC DAC 8BIT A-OUT 48LFCSP |
3,563 | 0.00 |
RFQ |
Datasheet |
48-VFQFN Exposed Pad, CSP | Tape & Reel (TR),Bulk | Automotive, ADI0012 | Active | 8 | 3 | - | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V, 5V | 3V ~ 3.6V, 5V | ±0.5, ±0.25 | Current Source | -40°C ~ 85°C |
|
|
ADV7125BCPZ170-RLIC DAC 8BIT A-OUT 48LFCSP |
3,636 | 7.53 |
RFQ |
Datasheet |
48-VFQFN Exposed Pad, CSP | Tape & Reel (TR),Bulk | - | Active | 8 | 3 | - | Current - Unbuffered | Yes | Parallel | External, Internal | 3V ~ 3.6V, 5V | 3V ~ 3.6V, 5V | ±0.5, ±0.25 | Current Source | -40°C ~ 85°C |
