| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | NumberofBits | NumberofD/AConverters | SettlingTime | OutputType | DifferentialOutput | DataInterface | ReferenceType | Voltage-SupplyAnalog | Voltage-SupplyDigital | INL/DNL(LSB) | Architecture | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD5821BCBZ-REELIC DAC 10BIT A-OUT 9WLCSP |
3,448 | 0.00 |
RFQ |
Datasheet |
9-UFBGA, WLCSP | Tape & Reel (TR) | - | Obsolete | 10 | 1 | 250µs (Typ) | Current - Buffered | No | I²C | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.5, ±1 (Max) | Current Sink | -40°C ~ 85°C |
|
AD5363BCPZIC DAC 14BIT V-OUT 56LFCSP |
1,981 | 27.75 |
RFQ |
Datasheet |
56-VFQFN Exposed Pad, CSP | Tray,Tray | - | Obsolete | 14 | 8 | 30µs | Voltage - Buffered | No | SPI, DSP | External | 8V ~ 16.5V, -4.5V ~ 16.5V | 2.5V ~ 5.5V | ±1 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C |
|
AD7846APZIC DAC 16BIT V-OUT 28PLCC |
2,830 | 1.00 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tube,Tube | - | Obsolete | 16 | 1 | 9µs | Voltage - Buffered | No | Parallel | External | ±11.4V ~ 15.75V | 5V | ±16 (Max), ±1 (Max) | String DAC | -40°C ~ 85°C |
|
PM7524FSZIC DAC 8BIT BUFF MULTIPLY 16SOIC |
6,100 | 5.29 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PM7524HSZIC DAC 8BIT A-OUT 16SOIC |
4,704 | 4.24 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube,Tube | - | Obsolete | 8 | 1 | 350ns | Current - Unbuffered | Yes | Parallel | External | 5V ~ 15V | 5V ~ 15V | - | R-2R | - |
|
AD9741BCPZIC DAC 8BIT A-OUT 72LFCSP |
3,516 | 0.00 |
RFQ |
Datasheet |
72-VFQFN Exposed Pad, CSP | Tray | - | Obsolete | 8 | 2 | - | Current - Unbuffered | Yes | Parallel | External, Internal | 3.13V ~ 3.47V | 1.7V ~ 1.9V, 3.13V ~ 3.47V | ±0.05, ±0.03 | Quad-Switch | -40°C ~ 85°C |
|
AD5660ARJZ-3REEL7IC DAC 16BIT SPI/SRL SOT23-8 |
3,176 | 1.00 |
RFQ |
SOT-23-8 | Cut Tape (CT),Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | |
|
AD5444YRMZ-REELIC DAC 12BIT A-OUT 10MSOP |
3,331 | 0.00 |
RFQ |
Datasheet |
10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR) | - | Obsolete | 12 | 1 | 110ns | Current - Unbuffered | Yes | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C |
|
AD5453YUJZ-REELIC DAC 14BIT A-OUT TSOT23-8 |
3,127 | 0.00 |
RFQ |
Datasheet |
SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | - | Obsolete | 14 | 1 | 110ns | Current - Unbuffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±2 (Max), -1/+2 (Max) | R-2R | -40°C ~ 125°C |
|
AD1934YSTZIC DAC 24BIT V-OUT 48LQFP |
3,387 | 0.00 |
RFQ |
Datasheet |
48-LQFP | Tray | - | Active | 24 | 8 | - | Voltage - Unbuffered | No | I²S, SPI | Internal | 3V ~ 3.6V | 3V ~ 3.6V | - | Sigma-Delta | -40°C ~ 105°C |
|
AD5765BSUZIC DAC 16BIT V-OUT 32TQFP |
1,789 | 24.06 |
RFQ |
Datasheet |
32-TQFP | Tray,Tray | iCMOS® | Obsolete | 16 | 4 | 10µs | Voltage - Buffered | No | SPI, DSP | External | 5V | 2.7V ~ 5.25V | ±2 (Max), ±1 (Max) | R-2R | -40°C ~ 105°C |
|
AD1933YSTZIC DAC 24BIT V-OUT 64LQFP |
2,098 | 0.00 |
RFQ |
Datasheet |
64-LQFP | Tray | - | Active | 24 | 8 | - | Voltage - Unbuffered | Yes | I²S, SPI | Internal | 3V ~ 3.6V | 3V ~ 3.6V | - | Sigma-Delta | -40°C ~ 105°C |
|

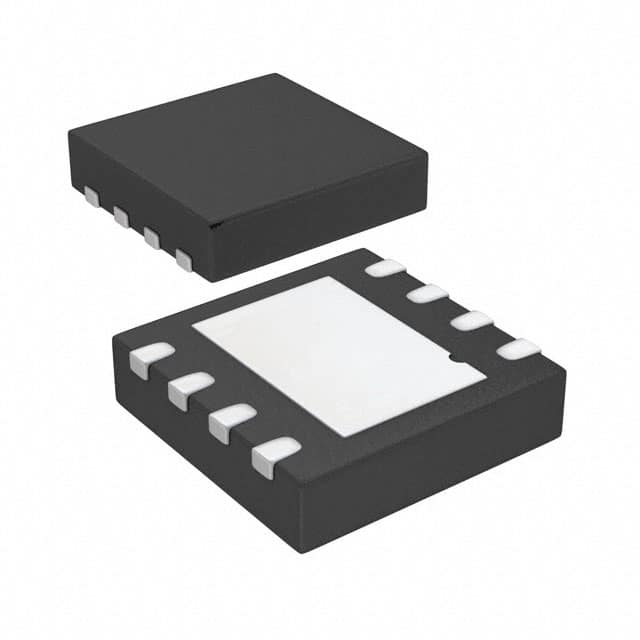

AD5626BCPZ-REEL7IC DAC 12BIT V-OUT 8LFCSP |
10,922 | 1.92 |
RFQ |
Datasheet |
8-VDFN Exposed Pad, CSP | Tape & Reel (TR),Cut Tape (CT),Bulk | nanoDAC® | Obsolete | 12 | 1 | 16µs (Typ) | Voltage - Buffered | No | SPI, DSP | Internal | 5V | 5V | ±0.25, ±0.75 | R-2R | -40°C ~ 85°C |
|
|
AD767KPZ-REELIC DAC 12BIT V-OUT 28PLCC |
3,660 | 0.00 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Tape & Reel (TR) | - | Obsolete | 12 | 1 | 3µs | Voltage - Buffered | No | Parallel | External, Internal | ±11.4V ~ 16.5V | - | ±0.25, ±0.25 | Current Steering | 0°C ~ 70°C |
|
|
AD5441BCPZ-REEL7IC DAC 12BIT A-OUT 8LFCSP-WD |
34,846 | 3.44 |
RFQ |
8-VDFN Exposed Pad, CSP | Bulk | - | Obsolete | 12 | 1 | 5µs | Current - Unbuffered | No | Serial | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5 (Max), ±0.5 (Max) | R-2R | -40°C ~ 125°C | |
|
AD5313BRUZ-REELIC DAC 10BIT V-OUT 16TSSOP |
2,972 | 0.00 |
RFQ |
Datasheet |
16-TSSOP (0.173, 4.40mm Width) | Tape & Reel (TR) | - | Obsolete | 10 | 2 | 9µs | Voltage - Buffered | No | SPI, DSP | External | 2.5V ~ 5.5V | 2.5V ~ 5.5V | ±0.5, ±0.05 | String DAC | -40°C ~ 105°C |
|
|
AD5620ARJZ-1500RL7IC DAC 12BIT V-OUT SOT23-8 |
3,879 | 1.00 |
RFQ |
SOT-23-8 | Tape & Reel (TR),Cut Tape (CT),Bulk | nanoDAC® | Obsolete | 12 | 1 | 10µs | Voltage - Buffered | No | SPI, DSP | Internal | 2.7V ~ 3.3V | 2.7V ~ 3.3V | ±6 (Max), ±0.25 (Max) | String DAC | -40°C ~ 105°C | |
|
AD5557CRUIC DAC 14BIT A-OUT 38TSSOP |
3,954 | 14.03 |
RFQ |
Datasheet |
38-TFSOP (0.173, 4.40mm Width) | Tube,Tube | - | Obsolete | 14 | 2 | 500ns (Typ) | Current - Unbuffered | No | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C |
|
|
AD5557CRU-REEL7IC DAC 14BIT A-OUT 38TSSOP |
4,946 | 14.03 |
RFQ |
Datasheet |
38-TFSOP (0.173, 4.40mm Width) | Tape & Reel (TR),Bulk | - | Obsolete | 14 | 2 | 500ns (Typ) | Current - Unbuffered | No | Parallel | External | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1 (Max), ±1 (Max) | R-2R | -40°C ~ 125°C |
|
|
AD5398ABCBZ-REELIC DAC 10BIT A-OUT 9WLCSP |
2,258 | 0.00 |
RFQ |
Datasheet |
9-UFBGA, WLCSP | Tape & Reel (TR) | - | Obsolete | 10 | 1 | 250µs (Typ) | Current - Unbuffered | No | I²C | Internal | 2.7V ~ 5.5V | 2.7V ~ 5.5V | ±1.5, ±1 (Max) | Current Sink | -30°C ~ 85°C |
