| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | ForMeasuring | SensorType | Current-Sensing | NumberofChannels | Output | Sensitivity | Frequency | Linearity | Accuracy | Voltage-Supply | ResponseTime | Current-Supply(Max) | OperatingTemperature | Polarization | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIMH040-800A-420CURRENT SENSOR 800A 4-20MA |
124 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 | Active | DC | Hall Effect | 800A | 1 | Ratiometric, 4mA ~ 20mA | - | DC ~ 10kHz | - | ±1% | ±15V | - | 35mA | -10°C ~ 85°C | Unidirectional | Panel Mount |
|
|
AIMH040-1000A-420CURRENT SENSOR 1000A 4-20MA |
114 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 | Active | DC | Hall Effect | 1000A | 1 | Ratiometric, 4mA ~ 20mA | - | DC ~ 10kHz | - | ±1% | ±15V | - | 35mA | -10°C ~ 85°C | Unidirectional | Panel Mount |
|
|
AIMH040-800A-5VCURRENT SENSOR 800A 5V BIDIRECT |
2,351 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 | Active | DC | Hall Effect | 800A | 1 | Ratiometric, 0V ~ 5V | - | DC ~ 10kHz | - | ±1% | ±15V | - | 35mA | -10°C ~ 85°C | Bidirectional | Panel Mount |
|
|
AIMH040-500A-5VCURRENT SENSOR 500A 5V BIDIRECT |
2,799 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 | Active | DC | Hall Effect | 500A | 1 | Ratiometric, 0V ~ 5V | - | DC ~ 10kHz | - | ±1% | ±15V | - | 35mA | -10°C ~ 85°C | Bidirectional | Panel Mount |
|
|
AIMH040-1000A-5VCURRENT SENSOR 1000A 5V BIDIRECT |
3,174 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 | Active | DC | Hall Effect | 1000A | 1 | Ratiometric, 0V ~ 5V | - | DC ~ 10kHz | - | ±1% | ±15V | - | 35mA | -10°C ~ 85°C | Bidirectional | Panel Mount |
|
|
AIMH040-800A-5VTCURRENT SENSOR 800A 5V UNIDI |
3,701 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 VT | Active | AC/DC | Hall Effect | 800A | 1 | Ratiometric, 0V ~ 5V | - | DC ~ 10kHz | - | ±1% | 12V | - | - | -10°C ~ 85°C | Unidirectional | Panel Mount |
|
|
AIMH040-500A-420BCURRENT SENSOR 500A 4-20MA |
3,465 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 | Active | DC | Hall Effect | 500A | 1 | Ratiometric, 4mA ~ 20mA | - | DC ~ 10kHz | - | ±1% | ±15V | - | 35mA | -10°C ~ 85°C | Bidirectional | Panel Mount |
|
|
AIMH040-800A-420BCURRENT SENSOR 800A 4-20MA |
3,077 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 | Active | DC | Hall Effect | 800A | 1 | Ratiometric, 4mA ~ 20mA | - | DC ~ 10kHz | - | ±1% | ±15V | - | 35mA | -10°C ~ 85°C | Bidirectional | Panel Mount |
|
|
AIMH040-1000A-420BCURRENT SENSOR 1000A 4-20MA |
2,498 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 | Active | DC | Hall Effect | 1000A | 1 | Ratiometric, 4mA ~ 20mA | - | DC ~ 10kHz | - | ±1% | ±15V | - | 35mA | -10°C ~ 85°C | Bidirectional | Panel Mount |
|
|
AIMH040-1000A-5VTCURRENT SENSOR 1000A 5V UNIDI |
3,922 | 128.57 |
RFQ |
Datasheet |
Bag | AIMH040 VT | Active | AC/DC | Hall Effect | 1000A | 1 | Ratiometric, 0V ~ 5V | - | DC ~ 10kHz | - | ±1% | 12V | - | - | -10°C ~ 85°C | Unidirectional | Panel Mount |
|
JC36S-500A-VCURRENT TRANS J&D 500A 36MM |
145 | 145.71 |
RFQ |
Datasheet |
Bag | V | Active | AC | - | 500A | 1 | Ratiometric, 0V ~ 5V | - | 50Hz ~ 60Hz | ±2% | ±2% | 5V | 300ms | - | -20°C ~ 50°C | - | Free Hanging |
|
RCT24-1000RCT24-1000 ROGOWSKI COIL OUTPUTS |
3,816 | 147.20 |
RFQ |
Datasheet |
Box | RCT | Active | AC | Transformer w/Conditioning | 1000A | 1 | - | - | 20Hz ~ 5kHz | - | ±0.5% | - | - | - | -20°C ~ 70°C | - | Free Hanging |
|
RCT-1800-500CURRENT SENSE MAGNA 500A:333MV |
2,475 | 230.00 |
RFQ |
Datasheet |
Bag | RCT | Active | AC | - | 500A | 1 | Ratiometric, Voltage | - | - | - | ±0.5% | 12V ~ 30V | - | - | -20°C ~ 105°C | - | Chassis Mount |
|
|
RCT-1800-2000CURRENT SENSE MAGNA 2000A:333MV |
2,239 | 230.00 |
RFQ |
Datasheet |
Bag | RCT | Active | AC | - | 2000A | 1 | Ratiometric, Voltage | - | - | - | ±0.5% | 12V ~ 30V | - | - | -20°C ~ 105°C | - | Chassis Mount |
|
|
RCT-1800-4000CURRENT SENSE MAGNA 4000A:333MV |
2,039 | 230.00 |
RFQ |
Datasheet |
Bag | RCT | Active | AC | - | 4000A | 1 | Ratiometric, Voltage | - | - | - | ±0.5% | 12V ~ 30V | - | - | -20°C ~ 105°C | - | Chassis Mount |
|
|
RCT-1800-400CURRENT SENSE MAGNA 400A:333MV |
2,965 | 230.00 |
RFQ |
Datasheet |
Bag | RCT | Active | AC | - | 400A | 1 | Ratiometric, Voltage | - | - | - | ±0.5% | 12V ~ 30V | - | - | -20°C ~ 105°C | - | Chassis Mount |
|
|
RCT-1800-800CURRENT SENSE MAGNA 800A:333MV |
3,450 | 230.00 |
RFQ |
Datasheet |
Bag | RCT | Active | AC | - | 800A | 1 | Ratiometric, Voltage | - | - | - | ±0.5% | 12V ~ 30V | - | - | -20°C ~ 105°C | - | Chassis Mount |
|
DC1-4MAVOLT TRANS AIM DYN 4-20MA |
414 | 321.43 |
RFQ |
Datasheet |
Bag | TVL | Active | DC | - | - | 1 | Ratiometric, 4mA ~ 20mA | - | - | ±0.5% | ±1% | 15V ~ 48V | 9ms | - | -30°C ~ 70°C | - | DIN Rail |
|
|

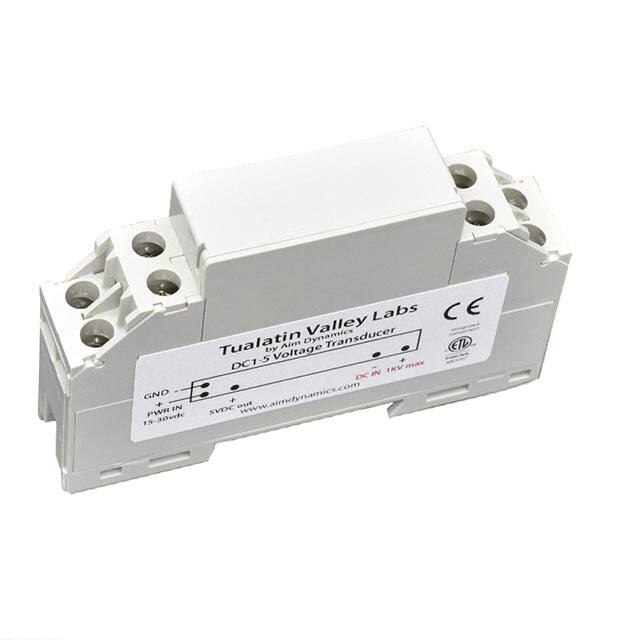

DC1-5VVOLT TRANS AIM DYN 1000VDC:5VDC |
3,459 | 321.43 |
RFQ |
Datasheet |
Bag | TVL | Active | DC | - | - | 1 | Ratiometric, 0V ~ 5V | - | - | ±0.5% | ±1% | 15V ~ 48V | 9ms | - | -30°C ~ 70°C | - | DIN Rail |
|
RCS-1800-800CURRENT SENSE MAGNA 800A:333MV |
3,993 | 554.29 |
RFQ |
Datasheet |
Bag | RCS | Active | AC | - | 800A | 1 | Ratiometric, Voltage | - | - | - | ±1% | 9V ~ 36V | - | - | -20°C ~ 105°C | - | Chassis Mount |
