| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | ForMeasuring | SensorType | Current-Sensing | NumberofChannels | Output | Sensitivity | Frequency | Linearity | Accuracy | Voltage-Supply | ResponseTime | Current-Supply(Max) | OperatingTemperature | Polarization | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HAT 200-SSENSOR CURRENT HALL 200A AC/DC |
2,543 | 0.00 |
RFQ |
Datasheet |
Tray | HAT | Active | AC/DC | Hall Effect, Open Loop | 200A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | Bidirectional | Chassis Mount |
|
|
HAT 400-SSENSOR CURRENT HALL 400A AC/DC |
2,478 | 0.00 |
RFQ |
Datasheet |
Tray | HAT | Active | AC/DC | Hall Effect, Open Loop | 400A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | Bidirectional | Chassis Mount |
|
|
HAT 500-SSENSOR CURRENT HALL 500A AC/DC |
2,761 | 0.00 |
RFQ |
Datasheet |
Tray | HAT | Active | AC/DC | Hall Effect, Open Loop | 500A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | Bidirectional | Chassis Mount |
|
|
HAT 600-SSENSOR CURRENT HALL 600A AC/DC |
2,370 | 0.00 |
RFQ |
Datasheet |
Tray | HAT | Active | AC/DC | Hall Effect, Open Loop | 600A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | Bidirectional | Chassis Mount |
|
|
HAT 800-SSENSOR CURRENT HALL 800A AC/DC |
3,566 | 0.00 |
RFQ |
Datasheet |
Tray | HAT | Active | AC/DC | Hall Effect, Open Loop | 800A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | Bidirectional | Chassis Mount |
|

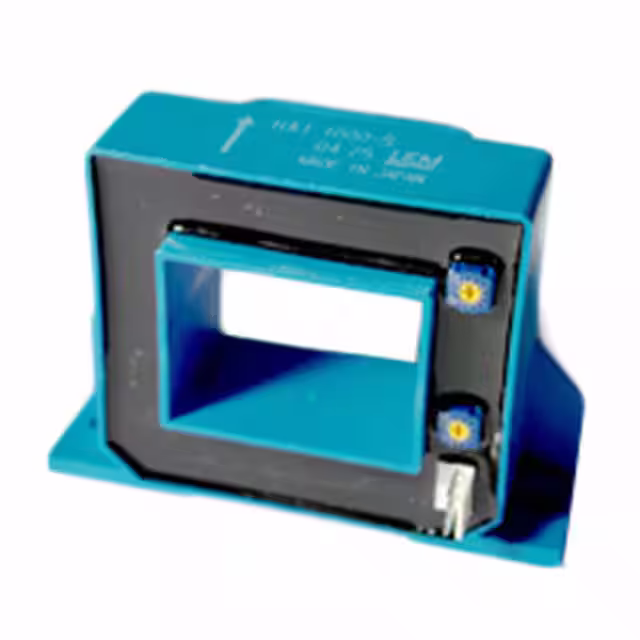

HAT 1000-SSENSOR CURRENT HALL 1000A AC/DC |
2,722 | 0.00 |
RFQ |
Datasheet |
Tray | HAT | Active | AC/DC | Hall Effect, Open Loop | 1000A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | Bidirectional | Chassis Mount |
|
|
HAT 1200-SSENSOR CURRENT HALL 1200A AC/DC |
2,911 | 0.00 |
RFQ |
Datasheet |
Tray | HAT | Active | AC/DC | Hall Effect, Open Loop | 1200A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | Bidirectional | Chassis Mount |
|
|
HAT 1500-SSENSOR CURRENT HALL 1500A AC/DC |
2,390 | 0.00 |
RFQ |
Datasheet |
Tray | HAT | Active | AC/DC | Hall Effect, Open Loop | 1500A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | Bidirectional | Chassis Mount |
|
|
HAX 500-SSENSOR CURRENT HALL 500A AC/DC |
3,217 | 0.00 |
RFQ |
Datasheet |
Bulk | HAX | Active | AC/DC | Hall Effect, Open Loop | 500A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 20mA | -25°C ~ 85°C | Bidirectional | Chassis Mount |
|
|
HAX 600-SSENSOR CURRENT HALL 600A AC/DC |
2,913 | 0.00 |
RFQ |
Datasheet |
Bulk | HAX | Active | AC/DC | Hall Effect, Open Loop | 600A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 20mA | -25°C ~ 85°C | Bidirectional | Chassis Mount |
|
|
HAX 1500-SSENSOR CURRENT HALL 1500A AC/DC |
2,915 | 0.00 |
RFQ |
Datasheet |
Bulk | HAX | Active | AC/DC | Hall Effect, Open Loop | 1500A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 20mA | -25°C ~ 85°C | Bidirectional | Chassis Mount |
|
HAX 2000-SSENSOR CURRENT HALL 2000A AC/DC |
3,836 | 0.00 |
RFQ |
Datasheet |
Bulk | HAX | Active | AC/DC | Hall Effect, Open Loop | 2000A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 20mA | -25°C ~ 85°C | Bidirectional | Chassis Mount |
|
|
HAX 2500-SSENSOR CURRENT HALL 2500A AC/DC |
2,436 | 0.00 |
RFQ |
Datasheet |
Bulk | HAX | Active | AC/DC | Hall Effect, Open Loop | 2500A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 20mA | -25°C ~ 85°C | Bidirectional | Chassis Mount |
|
|
HY 12-PSENSOR CURRENT HALL 12.5A AC/DC |
2,672 | 0.00 |
RFQ |
Datasheet |
Tray | HY | Active | AC/DC | Hall Effect, Open Loop | 12.5A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±12V ~ 15V | 3µs | 10mA | -10°C ~ 80°C | Bidirectional | Through Hole |
|
|
HY 20-PSENSOR CURRENT HALL 20A AC/DC |
2,051 | 0.00 |
RFQ |
Datasheet |
Tray | HY | Active | AC/DC | Hall Effect, Open Loop | 20A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±12V ~ 15V | 3µs | 10mA | -10°C ~ 80°C | Bidirectional | Through Hole |
|
|
HY 30-PSENSOR CURRENT HALL 30A AC/DC |
2,241 | 0.00 |
RFQ |
Datasheet |
Tray | HY | Active | AC/DC | Hall Effect, Open Loop | 30A | 1 | Ratiometric, Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±15V | 3µs | 10mA | -10°C ~ 80°C | Bidirectional | Through Hole |
|

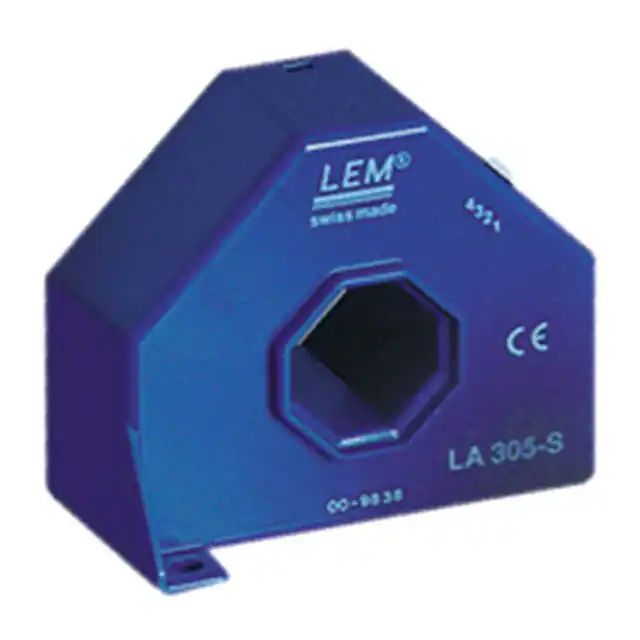

LA 305-SSENSOR CURRENT HALL 300A AC/DC |
3,052 | 0.00 |
RFQ |
Datasheet |
Tray | LA | Active | AC/DC | Hall Effect, Closed Loop | 300A | 1 | Ratiometric, Current | - | DC ~ 100kHz | ±0.1% | ±0.8% | ±12V ~ 15V | 1µs | 140mA | 0°C ~ 85°C | Bidirectional | Chassis Mount |
|
|
LF 305-SSENSOR CURRENT HALL 300A AC/DC |
2,536 | 0.00 |
RFQ |
Datasheet |
Tray | LF | Active | AC/DC | Hall Effect, Closed Loop | 300A | 1 | Ratiometric, Current | - | DC ~ 100kHz | ±0.1% | ±0.5% | 12V ~ 20V | 1µs | 176mA | -40°C ~ 85°C | Bidirectional | Chassis Mount |
|

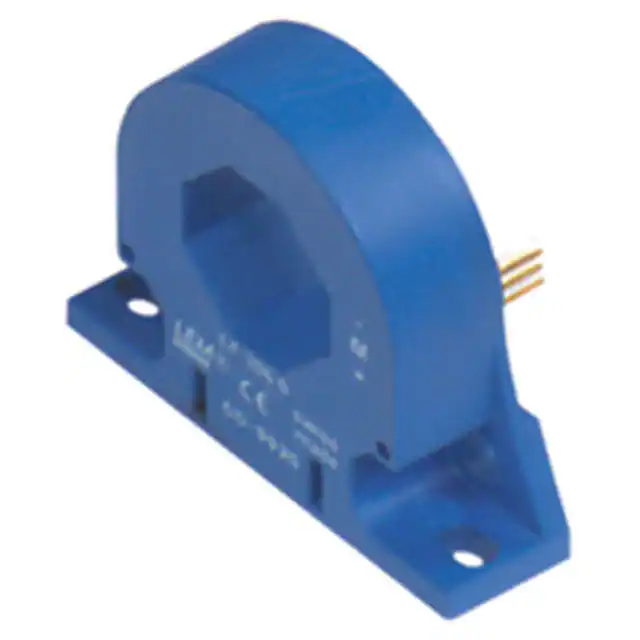

LF 306-SSENSOR CURRENT HALL 300A AC/DC |
3,523 | 0.00 |
RFQ |
Datasheet |
Tray | LF | Active | AC/DC | Hall Effect, Closed Loop | 300A | 1 | Ratiometric, Current | - | DC ~ 100kHz | ±0.1% | ±0.4% | ±12V ~ 15V | 1µs | 170mA | -25°C ~ 70°C | Bidirectional | Chassis Mount |
|

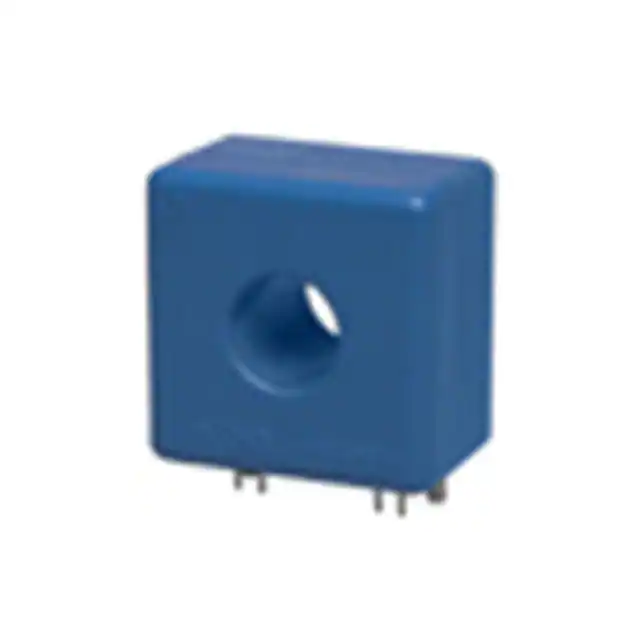

CT 0.2-PSENSOR CURRENT FLUX 200MA AC/DC |
2,009 | 0.00 |
RFQ |
Datasheet |
Bulk | CT | Obsolete | AC/DC | Flux Gate, Closed Loop | 200mA | 1 | Ratiometric, Voltage | - | DC ~ 11kHz | ±0.5% | ±1% | ±15V | 60ms | 45mA | -20°C ~ 85°C | Bidirectional | Through Hole |
