Current Sense Transformers(1107)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FrequencyRange | Type | CurrentRating(Amps) | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | CurrentRatio | DCResistance(DCR) | Ratings | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS-110XFRMR CURR 15A 1:50CT VRT |
2,317 | 2.65 |
RFQ |
Datasheet |
Bulk | AS | Active | - | - | - | - | - | - | - | - | - | - | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
AX-1000CURR SENSE XFMR 10A T/H |
3,439 | 2.68 |
RFQ |
Datasheet |
Tray | AX | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | - | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
AS-111CURR SENSE XFMR 1:100CT 15A T/H |
2,242 | 2.71 |
RFQ |
Datasheet |
Tray | AS | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 25 mH | 350VµS | 1:100CT | - | 550mOhm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
|
AS-114CURR SENSE XFMR 1:500CT 15A T/H |
2,895 | 2.71 |
RFQ |
Datasheet |
Tray | AS | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 700 mH | 1500VµS | 1:500CT | - | 12.5Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
|
AS-113CURR SENSE XFMR 1:300CT 15A T/H |
3,748 | 2.71 |
RFQ |
Datasheet |
Tray | AS | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 250 mH | 900VµS | 1:300CT | - | 5Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
|
AS-400XFRMR CURR 1A 1:100 VRT |
2,053 | 2.77 |
RFQ |
Datasheet |
Bulk | AS | Active | - | - | - | - | - | - | - | - | - | - | 0.701 L x 0.504 W (17.80mm x 12.80mm) | 0.787 (20.00mm) |
|
|
AS-104XFRMR CURR 15A 1:500 VRT |
3,025 | 2.80 |
RFQ |
Datasheet |
Bulk | AS | Active | - | - | - | - | - | - | - | - | - | - | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
AP-1500CURR SENSE XFMR 10A T/H |
2,963 | 2.81 |
RFQ |
Datasheet |
Tray | AP | Active | - | Non-Invasive (Solid Core) | 10 A | - | - | - | 1500:1 | 120Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
|
AS-112CURR SENSE XFMR 1:200CT 15A T/H |
3,743 | 2.84 |
RFQ |
Datasheet |
Tray | AS | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 100 mH | 700VµS | 1:200CT | - | 2.25Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
|
AS-105XFRMR CURR 30A 1:750 VRT |
3,825 | 2.92 |
RFQ |
Datasheet |
Bulk | AS | Active | - | - | - | - | - | - | - | - | - | - | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
|
AS-115CURR SENSE XFMR 1:750CT 30A T/H |
3,894 | 2.97 |
RFQ |
Datasheet |
Tray | AS | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 1.68 mH | 3750VµS | 1:750CT | - | 21.5Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
|
AS-401XFRMR CURR 2A 1:100 VRT |
3,998 | 3.00 |
RFQ |
Datasheet |
Bulk | AS | Active | - | - | - | - | - | - | - | - | - | - | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.984 (25.00mm) |
|
AX-1500CURR SENSE XFMR 15A T/H |
2,306 | 3.01 |
RFQ |
Datasheet |
Tray | AX | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | 1500:1 | - | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
AP-2000CURR SENSE XFMR 15A T/H |
3,536 | 3.07 |
RFQ |
Datasheet |
Tray | AP | Active | - | Non-Invasive (Solid Core) | 15 A | - | - | - | 2000:1 | 235Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
CSE187L-P-BCURR SENSE XFMR 1:500 30A T/H |
2,764 | 3.12 |
RFQ |
Datasheet |
Bulk | CSE | Active | 50Hz ~ 400Hz | Invasive | 30 A | - | - | 1:500 | - | 3mOhm Primary, 21Ohm Secondary | - | Through Hole | 0.875 L x 0.875 W (22.23mm x 22.23mm) | 0.720 (18.29mm) |
|
AP-2500CURR SENSE XFMR 15A T/H |
3,209 | 3.16 |
RFQ |
Datasheet |
Tray | AP | Active | - | Non-Invasive (Solid Core) | 15 A | - | - | - | 2500:1 | 330Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
|
AS-405XFRMR CURR 50A 1:500 VRT |
3,756 | 3.21 |
RFQ |
Datasheet |
Bulk | AS | Active | - | - | - | - | - | - | - | - | - | - | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.984 (25.00mm) |
|

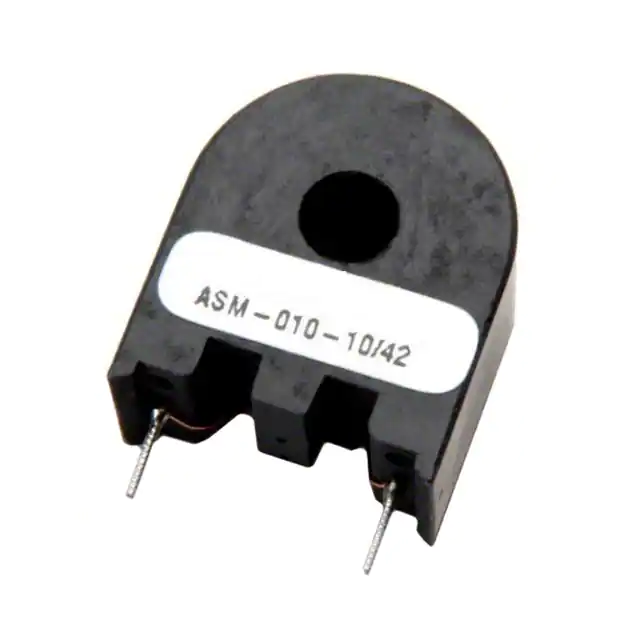

ASM-010CURR SENSE XFMR 10A T/H |
3,150 | 3.36 |
RFQ |
Datasheet |
Tray | ASM | Active | 50/60Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
|
AS-200XFRMR CURR 15A 1:50 VRT |
2,484 | 3.41 |
RFQ |
Datasheet |
Bulk | AS | Active | - | - | - | - | - | - | - | - | - | - | 0.571 L x 0.772 W (14.50mm x 19.60mm) | 0.709 (18.00mm) |
|
|
AS-201XFRMR CURR 15A 1:100 VRT |
2,970 | 3.44 |
RFQ |
Datasheet |
Bulk | AS | Active | - | - | - | - | - | - | - | - | - | - | 0.571 L x 0.772 W (14.50mm x 19.60mm) | 0.709 (18.00mm) |
