| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FrequencyRange | Type | CurrentRating(Amps) | Inductance | ET(Volt-Time) | TurnsRatio-Primary:Secondary | CurrentRatio | DCResistance(DCR) | Ratings | MountingType | Size/Dimension | Height-Seated(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS-104CURR SENSE XFMR 1:500 15A T/H |
2,201 | 1.63 |
RFQ |
Datasheet |
Tray | AS | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 15 A | 700 mH | 1500VµS | 1:500 | - | 25Ohm Secondary | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
AX-0750CURR SENSE XFMR 7.5A T/H |
3,482 | 2.49 |
RFQ |
Datasheet |
Tray | AX | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 7.5 A | - | - | - | 750:1 | - | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
AX-1000CURR SENSE XFMR 10A T/H |
3,439 | 2.68 |
RFQ |
Datasheet |
Tray | AX | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 10 A | - | - | - | 1000:1 | - | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|

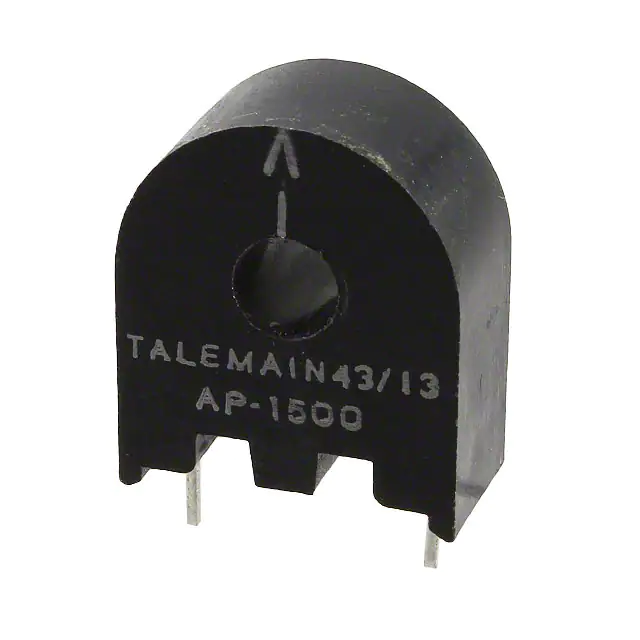

AP-1500CURR SENSE XFMR 10A T/H |
2,963 | 2.81 |
RFQ |
Datasheet |
Tray | AP | Active | - | Non-Invasive (Solid Core) | 10 A | - | - | - | 1500:1 | 120Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|
AX-1500CURR SENSE XFMR 15A T/H |
2,306 | 3.01 |
RFQ |
Datasheet |
Tray | AX | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 15 A | - | - | - | 1500:1 | - | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|

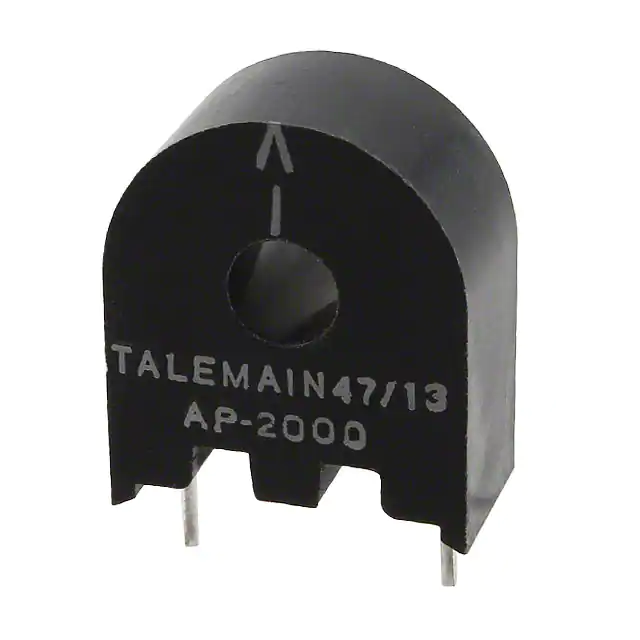

AP-2000CURR SENSE XFMR 15A T/H |
3,536 | 3.07 |
RFQ |
Datasheet |
Tray | AP | Active | - | Non-Invasive (Solid Core) | 15 A | - | - | - | 2000:1 | 235Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|

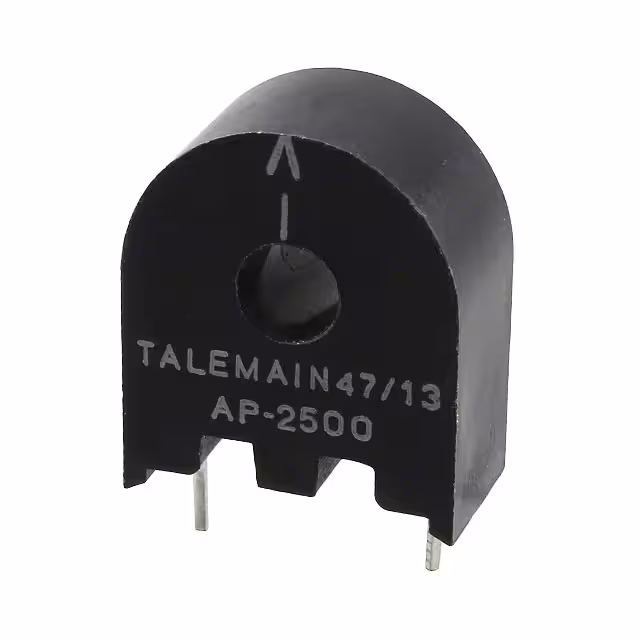

AP-2500CURR SENSE XFMR 15A T/H |
3,209 | 3.16 |
RFQ |
Datasheet |
Tray | AP | Active | - | Non-Invasive (Solid Core) | 15 A | - | - | - | 2500:1 | 330Ohm Max | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|

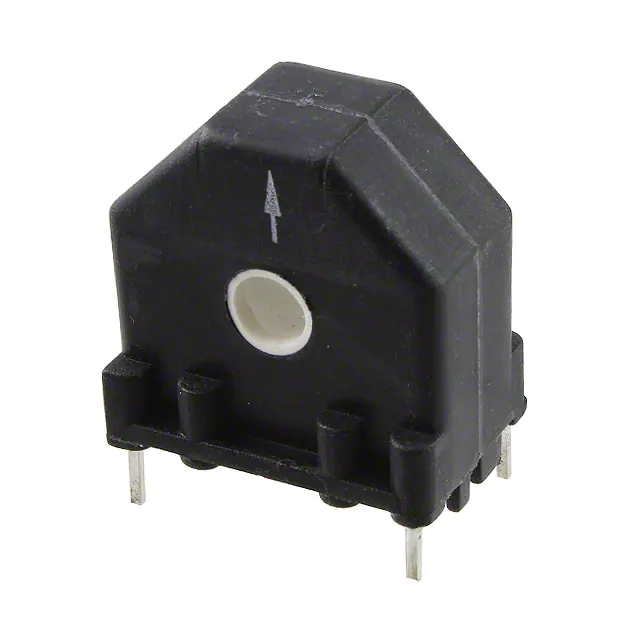

ASM-020XFMR PCB +/-10% 50/60HZ 20A |
2,511 | 3.59 |
RFQ |
Datasheet |
Tray | ASM | Active | 50/60Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | - | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.984 (25.00mm) |
|
ACX-1050CURR SENSE XFMR 2500:1 50A T/H |
2,105 | 3.60 |
RFQ |
Datasheet |
Tray | ACX | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | 2500:1 | - | - | - | Through Hole | 0.937 L x 0.438 W (23.80mm x 11.12mm) | 0.937 (23.80mm) |
|
AS-407CURR SENSE XFMR 1:500 80A T/H |
3,980 | 4.02 |
RFQ |
Datasheet |
- | AS | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 80 A | - | 7500VµS | 1:500 | - | - | - | Through Hole | 0.677 L x 0.375 W (17.20mm x 9.53mm) | 0.803 (20.40mm) |
|

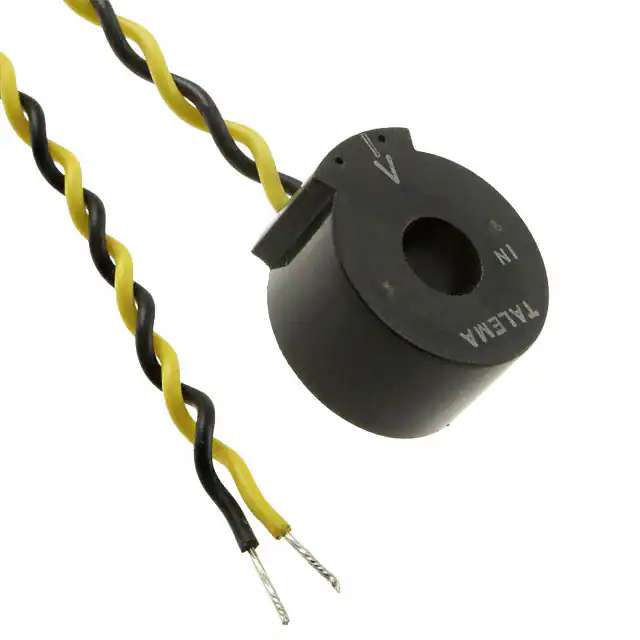

AZ-1000CURR SENSE XFMR 1000:1 50A SMD |
3,630 | 4.14 |
RFQ |
Datasheet |
Tray | AZ | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | 1000:1 | - | 72Ohm Primary | - | Chassis Mount | 0.748 Dia (19.00mm) | 0.453 (11.50mm) |
|
ACX-1075CURR SENSE XFMR 2500:1 75A T/H |
2,234 | 4.59 |
RFQ |
Datasheet |
Tray | ACX | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 75 A | - | - | 2500:1 | - | - | - | Through Hole | 1.189 L x 0.563 W (30.20mm x 14.30mm) | 1.189 (30.20mm) |
|
ACX-1100CURR SENSE XFMR 2500:1 100A T/H |
3,390 | 4.61 |
RFQ |
Datasheet |
Tray | ACX | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 100 A | - | - | 2500:1 | - | - | - | Through Hole | 1.374 L x 0.563 W (34.90mm x 14.30mm) | 1.374 (34.90mm) |
|
AZ-0750CURR SENSE XFMR 750:1 40A SMD |
3,165 | 5.08 |
RFQ |
Datasheet |
Tray | AZ | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 40 A | - | - | 750:1 | - | 35Ohm Primary | - | Surface Mount | 0.748 Dia (19.00mm) | 0.453 (11.50mm) |
|
ACX-1150CURR SENSE XFMR 2500:1 150A T/H |
2,188 | 5.10 |
RFQ |
Datasheet |
Tray | ACX | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 150 A | - | - | 2500:1 | - | - | - | Through Hole | 1.500 L x 0.626 W (38.10mm x 15.90mm) | 1.500 (38.10mm) |
