| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LF1290NP-472CMC 4.7MH 340MA 2LN TH |
3,746 | 2.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | LF | Active | Power Line | 2 | - | 4.7 mH @ 1 kHz | 340mA | 1.6Ohm | - | - | - | - | - | - | Through Hole | 0.669 L x 0.512 W (17.00mm x 13.00mm) | 0.374 (9.50mm) |
|
|
LF1290NP-681CMC 680UH 850MA 2LN TH |
3,458 | 2.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | LF | Active | Power Line | 2 | - | 680 µH @ 1 kHz | 850mA | 250mOhm | - | - | - | - | - | - | Through Hole | 0.669 L x 0.512 W (17.00mm x 13.00mm) | 0.374 (9.50mm) |
|
|
LF1290NP-682CMC 6.8MH 250MA 2LN TH |
2,052 | 2.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | LF | Active | Power Line | 2 | - | 6.8 mH @ 1 kHz | 250mA | 2.5Ohm | - | - | - | - | - | - | Through Hole | 0.669 L x 0.512 W (17.00mm x 13.00mm) | 0.374 (9.50mm) |
|
LF2115NP-222CMC 2.2MH 1.3A 2LN TH |
3,695 | 2.09 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 2.2 mH @ 1 kHz | 1.3A | 240mOhm | - | - | - | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.669 (17.00mm) |
|
|
LF2115NP-392CMC 3.9MH 1A 2LN TH |
2,367 | 2.09 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 3.9 mH @ 1 kHz | 1A | 410mOhm | - | - | - | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.669 (17.00mm) |
|
|
LF2115NP-103CMC 10MH 600MA 2LN TH |
2,753 | 2.09 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 10 mH @ 1 kHz | 600mA | 1Ohm | - | - | - | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.669 (17.00mm) |
|
|
LF2115NP-183CMC 18MH 500MA 2LN TH |
2,662 | 2.09 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 18 mH @ 1 kHz | 500mA | 1.63Ohm | - | - | - | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.669 (17.00mm) |
|
|
LF2115NP-223CMC 22MH 400MA 2LN TH |
3,053 | 2.09 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 22 mH @ 1 kHz | 400mA | 2.04Ohm | - | - | - | - | - | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.669 (17.00mm) |
|
LF2420NP-252CMC 2.5MH 2A 2LN TH |
3,277 | 2.10 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 2.5 mH @ 1 kHz | 2A | 130mOhm | - | - | - | - | - | - | Through Hole | 0.953 L x 0.953 W (24.20mm x 24.20mm) | 0.827 (21.00mm) |
|
|
LF2420NP-352CMC 3.5MH 1.7A 2LN TH |
3,227 | 2.10 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 3.5 mH @ 1 kHz | 1.7A | 180mOhm | - | - | - | - | - | - | Through Hole | 0.953 L x 0.953 W (24.20mm x 24.20mm) | 0.827 (21.00mm) |
|
|
LF2420NP-452CMC 4.5MH 1.5A 2LN TH |
2,305 | 2.10 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 4.5 mH @ 1 kHz | 1.5A | 210mOhm | - | - | - | - | - | - | Through Hole | 0.953 L x 0.953 W (24.20mm x 24.20mm) | 0.827 (21.00mm) |
|
|
LF2420NP-103CMC 10MH 1A 2LN TH |
3,844 | 2.10 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 10 mH @ 1 kHz | 1A | 470mOhm | - | - | - | - | - | - | Through Hole | 0.953 L x 0.953 W (24.20mm x 24.20mm) | 0.827 (21.00mm) |
|
|
LF2420NP-153CMC 15MH 800MA 2LN TH |
2,303 | 2.10 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 15 mH @ 1 kHz | 800mA | 730mOhm | - | - | - | - | - | - | Through Hole | 0.953 L x 0.953 W (24.20mm x 24.20mm) | 0.827 (21.00mm) |
|
|
LF2420NP-203CMC 20MH 700MA 2LN TH |
3,986 | 2.10 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 20 mH @ 1 kHz | 700mA | 870mOhm | - | - | - | - | - | - | Through Hole | 0.953 L x 0.953 W (24.20mm x 24.20mm) | 0.827 (21.00mm) |
|
|
LF2420NP-353CMC 35MH 600MA 2LN TH |
3,018 | 2.10 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 35 mH @ 1 kHz | 600mA | 1.58Ohm | - | - | - | - | - | - | Through Hole | 0.953 L x 0.953 W (24.20mm x 24.20mm) | 0.827 (21.00mm) |
|

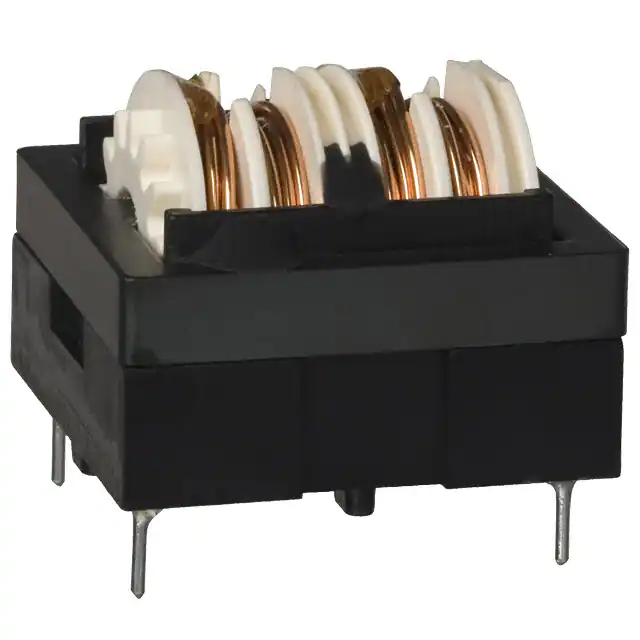

LF2823NP-182CMC 1.8MH 2.6A 2LN TH |
2,738 | 2.17 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 1.8 mH @ 1 kHz | 2.6A | 72mOhm | - | - | - | - | - | - | Through Hole | 1.122 L x 1.122 W (28.50mm x 28.50mm) | 0.945 (24.00mm) |
|
|
LF2823NP-682CMC 6.8MH 1.6A 2LN TH |
2,776 | 2.17 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 6.8 mH @ 1 kHz | 1.6A | 230mOhm | - | - | - | - | - | - | Through Hole | 1.122 L x 1.122 W (28.50mm x 28.50mm) | 0.945 (24.00mm) |
|
|
LF2823NP-123CMC 12MH 1.2A 2LN TH |
3,668 | 2.17 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 12 mH @ 1 kHz | 1.2A | 380mOhm | - | - | - | - | - | - | Through Hole | 1.122 L x 1.122 W (28.50mm x 28.50mm) | 0.945 (24.00mm) |
|
|
LF2823NP-223CMC 22MH 1A 2LN TH |
2,009 | 2.17 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 22 mH @ 1 kHz | 1A | 650mOhm | - | - | - | - | - | - | Through Hole | 1.122 L x 1.122 W (28.50mm x 28.50mm) | 0.945 (24.00mm) |
|
|
LF2823NP-393CMC 39MH 700MA 2LN TH |
3,041 | 2.17 |
RFQ |
Datasheet |
Bulk | LF | Active | Power Line | 2 | - | 39 mH @ 1 kHz | 700mA | 1.43Ohm | - | - | - | - | - | - | Through Hole | 1.122 L x 1.122 W (28.50mm x 28.50mm) | 0.945 (24.00mm) |
