| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82731H2801A030CMC 22MH 800MA 2LN TH |
3,195 | 1.90 |
RFQ |
Datasheet |
Tray | B82731 | Active | Power Line | 2 | - | 22 mH @ 10 kHz | 800mA | 800mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.602 L x 0.291 W (15.30mm x 7.40mm) | 0.693 (17.60mm) |
|
B82720H0015A028CMC 28MH 400MA 2LN TH |
2,302 | 1.80 |
RFQ |
Datasheet |
Tray | B82720 | Active | Signal Line | 2 | - | 28 mH @ 10 kHz | 400mA | 1.2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Through Hole | 0.512 L x 0.374 W (13.00mm x 9.50mm) | 0.551 (14.00mm) |
|
B82720S2152N040CMC 1.6MH 1.5A 4LN SMD |
3,923 | 1.80 |
RFQ |
Datasheet |
Tray | B82720 | Active | Power Line | 4 | - | 1.6 mH @ 10 kHz | 1.5A | 110mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.587 L x 0.524 W (14.90mm x 13.30mm) | 0.421 (10.70mm) |
|
|
B82720S2301N042CMC 22MH 300MA 2LN SMD |
2,710 | 1.80 |
RFQ |
Datasheet |
Tray | B82720 | Active | Power Line | 2 | - | 22 mH @ 10 kHz | 300mA | 1.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | Surface Mount | 0.587 L x 0.524 W (14.90mm x 13.30mm) | 0.421 (10.70mm) |
|
B82720A2301N042CMC 22MH 300MA 2LN TH |
3,782 | 1.80 |
RFQ |
Datasheet |
Tray | B82720 | Active | Power Line | 2 | - | 22 mH @ 10 kHz | 300mA | 1.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.560 L x 0.560 W (14.22mm x 14.22mm) | 0.378 H (9.60mm) |
|
B82721J2401N020CMC 39MH 400MA 2LN TH |
3,730 | 1.84 |
RFQ |
Datasheet |
Tray | B82721 | Not For New Designs | Power Line | 2 | - | 39 mH @ 10 kHz | 400mA | 2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.717 L x 0.520 W (18.20mm x 13.20mm) | 0.823 (20.90mm) |
|
B82721K2162U030CMC 30UH 1.6A 2LN TH |
2,940 | 1.90 |
RFQ |
Datasheet |
Tray | B82721 | Active | Power Line | 2 | - | 30 µH @ 10 kHz | 1.6A | 130mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.717 L x 0.520 W (18.20mm x 13.20mm) | 0.803 (20.40mm) |
|
|
B82721K2222U030CMC 10UH 2.2A 2LN TH |
2,672 | 1.90 |
RFQ |
Datasheet |
Tray | B82721 | Active | Power Line | 2 | - | 10 µH @ 100 kHz | 2.2A | 70mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.717 L x 0.520 W (18.20mm x 13.20mm) | 0.803 (20.40mm) |
|
|
B82721K2282U030CMC 4UH 2.8A 2LN TH |
2,543 | 1.90 |
RFQ |
Datasheet |
Tray | B82721 | Active | Power Line | 2 | - | 4 µH @ 100 kHz | 2.8A | 45mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.717 L x 0.520 W (18.20mm x 13.20mm) | 0.803 (20.40mm) |
|
|

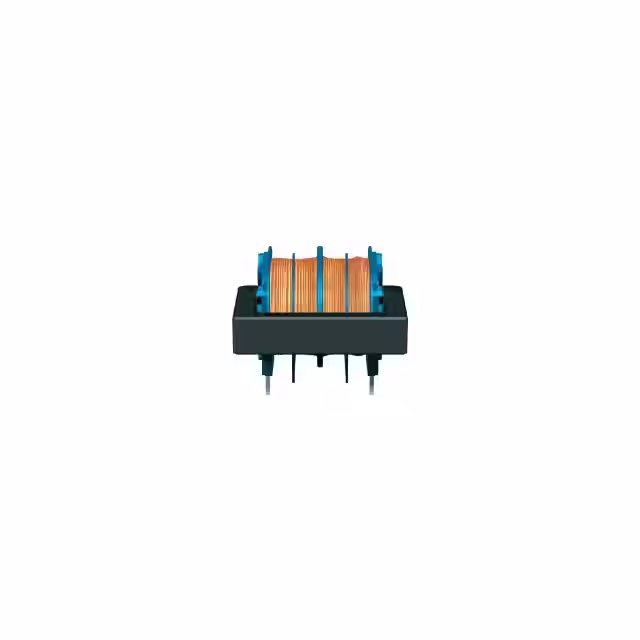

B82731H2112A030CMC 10MH 1.1A 2LN TH |
2,698 | 1.90 |
RFQ |
Datasheet |
Tray | B82731 | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1.1A | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.610 (15.50mm) |
|
|
B82731H2132A030CMC 6.8MH 1.3A 2LN TH |
3,862 | 1.90 |
RFQ |
Datasheet |
Tray | B82731 | Active | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.610 (15.50mm) |
|
B82731H2182A030CMC 3.3MH 1.8A 2LN TH |
3,215 | 1.90 |
RFQ |
Datasheet |
Tray | B82731 | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.8A | 140mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.827 L x 0.827 W (21.00mm x 21.00mm) | 0.610 (15.50mm) |
|
B82732R2601B030CMC 47MH 600MA 2LN TH |
2,474 | 1.94 |
RFQ |
Datasheet |
Tray | B82732 | Active | Power Line | 2 | - | 47 mH @ 10 kHz | 600mA | 1.4Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.945 L x 0.650 W (24.00mm x 16.50mm) | 0.925 (23.50mm) |
|
|
B82732R2401B030CMC 100MH 400MA 2LN TH |
2,631 | 1.94 |
RFQ |
Datasheet |
Tray | B82732 | Active | Power Line | 2 | - | 100 mH @ 10 kHz | 400mA | 3Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.945 L x 0.650 W (24.00mm x 16.50mm) | 0.925 (23.50mm) |
|
|
B82732W2112B030CMC 15MH 1.1A 2LN TH |
3,730 | 1.94 |
RFQ |
Datasheet |
Tray | B82732 | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 1.1A | 440mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.681 (17.30mm) |
|
|
B82732W2142B030CMC 10MH 1.4A 2LN TH |
2,757 | 1.94 |
RFQ |
Datasheet |
Tray | B82732 | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1.4A | 300mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.681 (17.30mm) |
|
|
B82732W2172B030CMC 6.8MH 1.7A 2LN TH |
2,597 | 1.94 |
RFQ |
Datasheet |
Tray | B82732 | Active | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.7A | 190mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.681 (17.30mm) |
|
|
B82732W2222B030CMC 3.3MH 2.2A 2LN TH |
2,714 | 1.94 |
RFQ |
Datasheet |
Tray | B82732 | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.2A | 110mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.945 L x 0.906 W (24.00mm x 23.00mm) | 0.681 (17.30mm) |
|
B82720H0014A016CMC 4.7MH 300MA 4LN TH |
2,758 | 2.10 |
RFQ |
Datasheet |
Tray | B82720 | Active | Signal Line | 4 | - | 4.7 mH @ 10 kHz | 300mA | 900mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | Through Hole | 0.512 L x 0.374 W (13.00mm x 9.50mm) | 0.551 (14.00mm) |
|
|
B82720H0014A025CMC 10MH 200MA 4LN TH |
2,451 | 2.10 |
RFQ |
Datasheet |
Tray | B82720 | Active | Signal Line | 4 | - | 10 mH @ 10 kHz | 200mA | 1.3Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | UL | - | Through Hole | 0.512 L x 0.374 W (13.00mm x 9.50mm) | 0.551 (14.00mm) |
