| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82721K2801U030CMC 150UH 800MA 2LN TH |
3,285 | 3.56 |
RFQ |
Datasheet |
Tray | B82721 | Active | Power Line | 2 | - | 150 µH @ 10 kHz | 800mA | 470mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.717 L x 0.520 W (18.20mm x 13.20mm) | 0.803 (20.40mm) |
|
B82722J2301N001CMC 47MH 300MA 2LN TH |
537 | 3.67 |
RFQ |
Datasheet |
Tray | B82722 | Active | Power Line | 2 | - | 47 mH @ 10 kHz | 300mA | 2.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.917 L x 0.634 W (23.30mm x 16.10mm) | 1.000 (25.40mm) |
|
B82724J8202N040CMC 33MH 2A 2LN TH |
2,030 | 6.48 |
RFQ |
Datasheet |
Tray | B82724 | Active | Power Line | 2 | - | 33 mH @ 10 kHz | 2A | 200mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.232 L x 0.728 W (31.30mm x 18.50mm) | 1.307 (33.20mm) |
|
B82116S1221L026CMC 3.1UH 25A 1LN TH AEC-Q200 |
2,924 | 9.39 |
RFQ |
Datasheet |
Tray | B82116S | Active | Power Line | 1 | - | 3.1 µH @ 10 kHz | 25A | 1.8mOhm (Typ) | - | - | -40°C ~ 180°C | AEC-Q200 | - | - | Through Hole | 0.846 Dia (21.50mm) | 0.846 (21.50mm) |
|
B82726S6123N020CMC 3.3MH 12A 2LN TH |
3,487 | 13.36 |
RFQ |
Datasheet |
Tray | B82726 | Active | Power Line | 2 | - | 3.3 mH @ 10 kHz | 12A | 8.4mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.969 L x 0.906 W (50.00mm x 23.00mm) | 1.929 (49.00mm) |
|
|
B82726S6103N001CMC 2.2MH 10A 2LN TH |
3,632 | 13.69 |
RFQ |
Datasheet |
Tray | B82726 | Active | Power Line | 2 | - | 2.2 mH @ 10 kHz | 10A | 12mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.969 L x 0.906 W (50.00mm x 23.00mm) | 1.929 (49.00mm) |
|
B82726S2183N020CMC 1.3MH 18A 2LN TH |
2,986 | 14.63 |
RFQ |
Datasheet |
Tray | B82726 | Active | Power Line | 2 | - | 1.3 mH @ 10 kHz | 18A | 5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 1.969 L x 0.906 W (50.00mm x 23.00mm) | 1.929 (49.00mm) |
|
|
B82726S6203A040CMC 1.5MH 24A 2LN TH |
100 | 15.34 |
RFQ |
Datasheet |
Tray | B82726 | Active | Power Line | 2 | - | 1.5 mH @ 10 kHz | 24A | 3.2mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | Through Hole | 2.165 L x 1.339 W (55.00mm x 34.00mm) | 2.047 (52.00mm) |
|
|
B82727E6243A040CMC 2.2MH 24A 2LN TH |
2,401 | 15.45 |
RFQ |
Datasheet |
Tray | B82727 | Active | Power Line | 2 | - | 2.2 mH @ 10 kHz | 24A | 3.9mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | Through Hole | 2.559 L x 1.378 W (65.00mm x 35.00mm) | 2.402 (61.00mm) |
|
B82721A2252N020RING CORE CHOKE 2X600UH 2.5 A +4 |
600 | 3.30 |
RFQ |
Datasheet |
Tray | B82721A | Active | Power Line | 2 | - | 600 µH @ 100 kHz | 2.5A | 60mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.705 L x 0.681 W (17.90mm x 17.30mm) | 0.496 (12.60mm) |
|
B82722J2501N001CMC 27MH 500MA 2LN TH |
256 | 3.67 |
RFQ |
Datasheet |
Tray | B82722 | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.2Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.917 L x 0.634 W (23.30mm x 16.10mm) | 1.000 (25.40mm) |
|
B82790C0113N201CMC 11UH 500MA 2LN SMD AEC-Q200 |
2,310 | 3.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | B82790 | Not For New Designs | Signal Line | 2 | - | 11 µH @ 100 kHz | 500mA | 80mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | Surface Mount | 0.280 L x 0.236 W (7.10mm x 6.00mm) | 0.205 (5.20mm) |
|
B82731M2701A030CMC 27MH 700MA 2LN TH |
2,783 | 3.80 |
RFQ |
Datasheet |
Tray | B82731 | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 700mA | 1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.827 L x 0.591 W (21.00mm x 15.00mm) | 0.807 (20.50mm) |
|
B82730U3451A020CMC 10MH 450MA 2LN TH |
3,331 | 2.63 |
RFQ |
Datasheet |
Tray | B82730 | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 450mA | 1.75Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.650 L x 0.433 W (16.50mm x 11.00mm) | 0.650 (16.50mm) |
|
|
B82731M2351A030CMC 100MH 350MA 2LN TH |
2,906 | 3.80 |
RFQ |
Datasheet |
Tray | B82731 | Active | Power Line | 2 | - | 100 mH @ 10 kHz | 350mA | 4.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.827 L x 0.591 W (21.00mm x 15.00mm) | 0.807 (20.50mm) |
|
B82747E6253A040CMC 1MH 25A 3LN TH |
3,300 | 15.78 |
RFQ |
Datasheet |
Tray | B82747 | Active | Power Line | 3 | - | 1 mH @ 100 kHz | 25A | 2.8mOhm (Typ) | - | 600/350V | -40°C ~ 125°C | - | UR | - | Through Hole | 2.559 L x 1.457 W (65.00mm x 37.00mm) | 2.598 (66.00mm) |
|
B82789C0113N002CMC 11UH 300MA 2LN SMD AEC-Q200 |
3,318 | 1.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | B82789 | Active | Signal Line | 2 | - | 11 µH @ 100 kHz | 300mA | 250mOhm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | Surface Mount | 0.205 L x 0.126 W (5.20mm x 3.20mm) | 0.118 (3.00mm) |
|
|
B82730U3162A020CMC 1MH 1.6A 2LN TH |
3,442 | 2.63 |
RFQ |
Datasheet |
Tray | B82730 | Active | Power Line | 2 | - | 1 mH @ 100 kHz | 1.6A | 160mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.650 L x 0.433 W (16.50mm x 11.00mm) | 0.650 (16.50mm) |
|

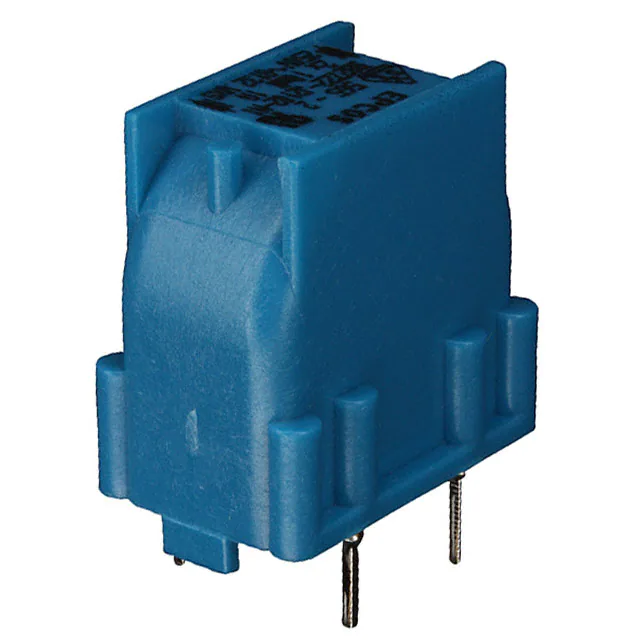

B82722J2102N001CMC 10MH 1A 2LN TH |
3,152 | 3.67 |
RFQ |
Datasheet |
Tray | B82722 | Active | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 480mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.917 L x 0.634 W (23.30mm x 16.10mm) | 1.000 (25.40mm) |
|
B82722A2302N001CMC 1.2MH 3A 2LN TH |
3,385 | 3.67 |
RFQ |
Datasheet |
Tray | B82722 | Active | Power Line | 2 | - | 1.2 mH @ 10 kHz | 3A | 56mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | Through Hole | 0.894 L x 0.878 W (22.70mm x 22.30mm) | 0.524 (13.30mm) |
